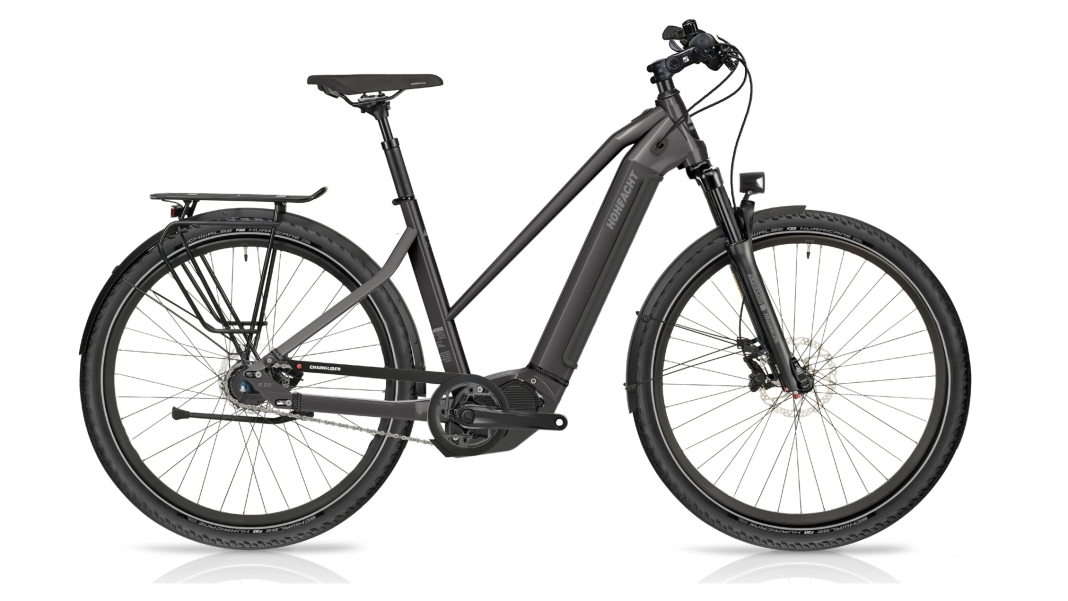

HoheAcht Pasia Urbeno Vulkanschiefer
Note: This text is a service for our readers and was automatically generated from the data in our bike database.
The “Pasia Urbeno Vulkanschiefer” bike model from HoheAcht, released in 2021, is a high-quality e-bike priced at 3,999 EUR, placing it in the premium segment. The aluminium trapezoidal frame provides the basis for a robust yet lightweight riding experience. The braking system consists of a combination of Shimano BR-MT420 brakes with 4 pistons at the front and Shimano BR-MT410 brakes with 2 pistons at the rear, ensuring reliable braking performance. Gear changes are handled by the Shimano Steps Di2 system with 5 gears, controlled via the Shimano Steps SW-E7000 shifter.
Optimal visibility on the road is ensured by the Herrmans H-Black MR8 E front light, with an output of 180 lumens, and the Herrmans H-Cargo e-bike rear light with a BR-12 reflector. The Marwi SP-160 pedals and the Shimano Steps FC-EM600 crankset, with a length of 170 mm and 38 teeth, contribute to the efficiency of the drivetrain, complemented by the KMC Z1eHX drive and the Shimano Nexus CS-C7000 sprocket with 27 teeth.
The H8 aluminium handlebars are 700 mm wide and are mounted on a 60° adjustable stem, allowing for comfortable adjustment to individual riding needs. The Herrmans Line DD36 grips offer additional comfort. The Acros headset features industrial-grade bearings, which contribute to the bike’s durability.
The bike is fitted with Mach1 Trucky 30 rims in 27.5” size, which, combined with Continental Contact Cruiser tyres, ensure a comfortable ride. The hubs comprise a Formula Disc hub at the front and a Shimano Nexus SG-C7050 Di2 5-speed gear hub at the rear.
The Selle Royal Essenza Plus saddle, together with the suspension-equipped H8 aluminium seatpost, ensures a comfortable ride. SKS mudguards, an Atran Velo Rex HV kickstand and an Atran Velo Tour 365 H-Cargo luggage rack with a load capacity of up to 27 kg round off the specification.
The e-bike is powered by the high-performance Shimano EP8 motor with a torque of 85 Nm, which is powered by a 500 Wh battery. This combination promises powerful assistance on every ride.
Tests & Reviews
Equipment
| Brakes | Front: Shimano BR-MT420, 4-piston; Rear: Shimano BR-MT410, 2-piston |
| Frame | Aluminium trapezoidal frame |
| Drivetrain | Shimano Steps Di2, 5-speed |
| Shift levers | Shimano Steps SW-E7000, Di2, 5-speed |
| Crankset | Shimano Steps FC-EM600, 170 mm, Shimano Steps EP8, 38 teeth |
| Sprocket | Shimano Nexus CS-C7000, 27 teeth |
| Drive | KMC Z1eHX |
| Headset | Acros, industrial-grade bearings |
| Handlebar | H8 aluminium, 31.8 mm, 700 mm |
| Grips | Herrman's Line DD36 |
| Stem | H8 aluminium, 95 mm, adjustable by 60° |
| Saddle | Selle Royal Essenza Plus |
| Seatpost | H8 aluminium, 31.6 mm, 300 mm, suspension |
| Rims | Mach1 Trucky 30, 27.5" |
| Tires | Continental Contact Cruiser, 60-584, Reflex |
| Pedals | Marwi SP-160 |
| Front light | Herrmans H-Black MR8 E, 6–12 V, 180 lumens |
| Rear light | Herrman’s H-Cargo e-bike, BR-12 reflector |
| Mudguards | SKS A 69 R, Black |
| Kickstand | Atran Velo Rex HV, 40 mm |
| Rack | Atran Velo Tour 365 H-Cargo, 27 kg payload |
| Motor manufacturer / model | Shimano EP8, 85 Nm |
| Battery | 500 Wh |
