Name: Haibike ALLTRAIL 10
Brand: Haibike
Price: 5499 EUR

Bidex

Haibike

Haibike ALLTRAIL 10 2026 Pedelec > MTB > Fully

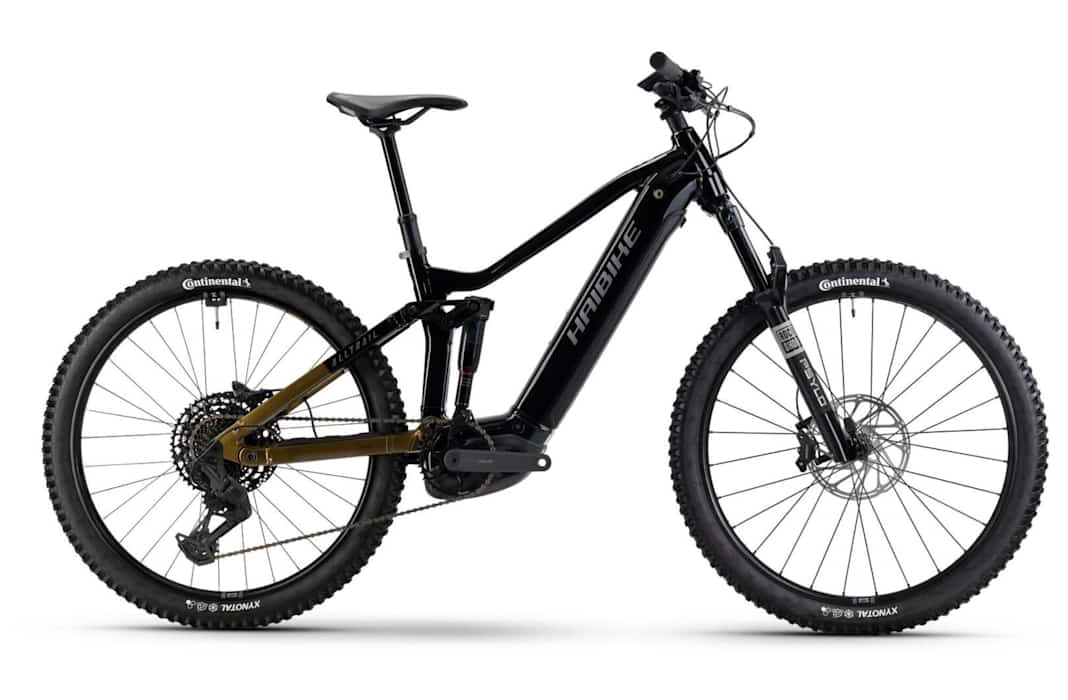

ALLTRAIL 10

Trail-Abenteuer ohne Limit. Ungezähmt. Wild. Und mit maximaler Power. Unser HAIBIKE ALLTRAIL 10 ist mit dem Besten vom Besten ausgestattet – und ermöglicht dir Trailriding auf höchstem Level. Das High-Performance eFully überzeugt mit einer besonders agilen Rahmenplattform – zusammen mit dem kraftvollen Bosch Performance CX Antrieb ein extrem starkes Paket. Das spiegelt sich auch bei der Reichweite wider, denn mit dem 800 Wh Akku und dem optionalen 250 Wh Range Extender ist dein Tourenradius größer denn je. Und damit nicht genug: Das SRAM Schaltwerk, die bissigen Shimano 4-Kolben-Scheibenbremsen sowie die hochwertigen RockShox Dämpfer mit 140 mm Federweg vorn und hinten lassen auch auf anspruchsvolleren Trails keine Wünsche offen. Ja, dieses Bike ist der perfekte Partner – selbst für ungezähmte und besonders wilde Bike-Adventures.


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Rear brakes	Sram DB4 Stealth A-MAJIG, 4 pistons, organic pad, 203 mm
Front brakes	Sram DB4 Stealth A-MAJIG, 4 pistons, organic pad, 200 mm
Brakes	Sram DB4 Stealth A-MAJIG, 4 pistons, organic pad, 200 mm, Sram DB4 Stealth A-MAJIG, 4 pistons, organic pad, 203 mm
Front brake disc	Sram DB Rotor Centerline 200 mm, rounded, 6 bolt disc
Rear brake disc	Sram DB Rotor Centerline 203 mm, rounded, 6 bolt disc
Brake levers	Sram DB4 Stealth-BL
Front brake lever	Sram DB4 Stealth-BL
Frame	Haibike Alltrail 27.5, Boost 110/148, disc brake post mount, suspension travel: 140mm
Frame material	Aluminium
Drivetrain	Sram Eagle 70 T-Type 12s, 12-speed
Shift levers	Sram Eagle 70 T-Type Single Click Trigger, Trigger shifter
Number of gears	12
Fork	RockShox Psylo Gold RC, Crown Adjust, DebonAir, Offset: 44 mm, Suspension travel: 140mm
Rear shock	RockShox Deluxe Select 205x60mm, Trunnion, DebonAir+
Fork travel (mm)	140
Rear shock travel (mm)	140
Sprocket	Sram CR T-Type Bosch DU38 DM, 36T, Sram XS-1270 Eagle T-Type, HG, 10-52T
Drive	Sram Eagle 70 T-Type 12s
Drive type	Chain
Headset	Acros Blocklock 135° AZX-220-R4 ZS44/ZS56, Semi-Integrated
Handlebar	XLC HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9° 800 mm
Grips	XLC MTB Grip Set VLG-1751D2
Stem	XLC ST-M50, Dia. 35 mm, L: 40 mm, A-Head
Saddle	XLC SA-S10 143 mm Sport
Seatpost	XLC Dropper SP-T21, Dia. 34.9 mm, Travel: 125 mm, L: 399 mm
Wheel size	27.5“/584mm
Rims	XLC WR-M47 SL Disc 30/584 32H 6.5 mm Valve
Tires	Continental Xynotal Trail Endurance, foldable skin SL, 60-584
Front tire	Continental Xynotal Trail Endurance, foldable skin SL, 60-584
Front hub	XLC HF-M55 Boost 15x110 mm, 32H, 6 bolt disc
Rear hub	XLC HR-M55 Boost 12x148 mm, 32H, 6 bolt Disc, HG
Spokes	Sapim Race Dia. 2.0, J-Bend
Pedals	XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
Motor manufacturer / model	Bosch Performance Line CX, 600 W, 85 Nm, 25 km/h
Motor type	up to 25 km/h
Display	Bosch Kiox 300 + LED Remote
Control unit	Bosch LED Remote
Battery	Bosch PowerTube
Battery capacity (Wh)	800
Charger	Bosch Charger 4A 220-240V

Haibike ALLTRAIL 10

Tests & Reviews

Haibike Alltrail and Advntr 2025
Innovative or a matter of taste? Trail e-bike lowered!

E-Fully Haibike Sduro Allmtn 6.0 on test

SUV bike Haibike Adventr 10 on test
A mountain bike as a step-through model

Equipment
