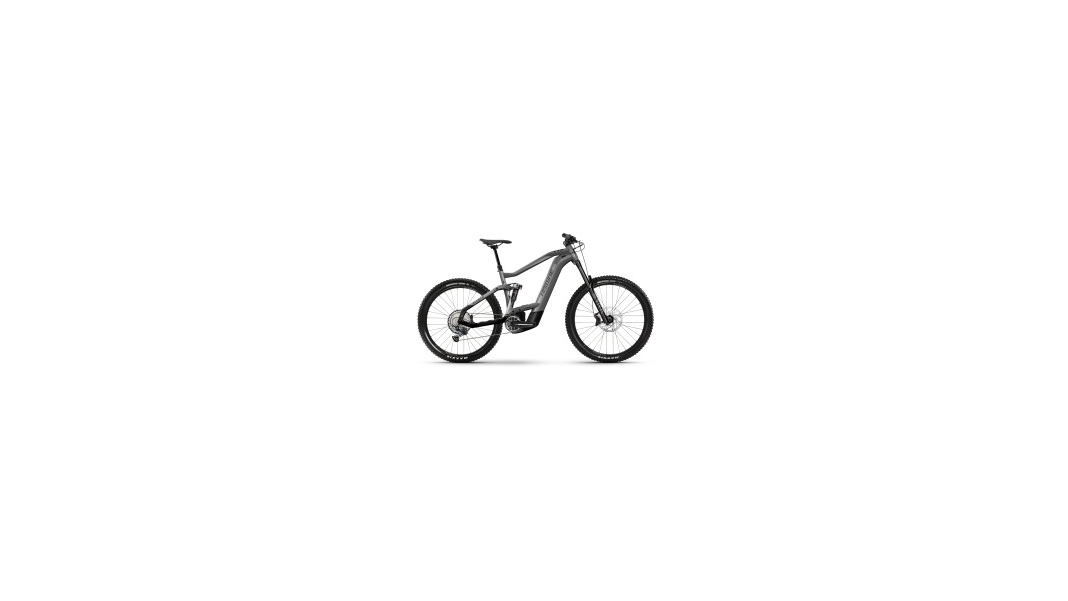

Haibike ALLMTN 5

The 2023 Haibike ALLMTN 5 is a versatile e-mountain bike designed for challenging trails and all-mountain riding. This model is priced at 6399 EUR. The frame is made of robust aluminium and features an M12 (1.75) x 148mm thru-axle and a post-mount disc brake mount. The suspension travel is 160mm at both the front and rear, ensuring excellent damping performance. The bike’s maximum load capacity is 150 kg.

The ALLMTN 5 is fitted with Shimano MT420 disc brakes with a diameter of 203 mm, which, in combination with the aluminium Shimano MT401 brake levers, deliver reliable braking performance. The gear system consists of a SRAM NX Eagle 12-speed groupset and a SRAM SX Eagle trigger shifter, which enable precise gear changes. The RockShox Yari RC air fork, with 160 mm of travel, an aluminium steerer tube (1 1/8 – 1 1/2'' tapered) and a 15 x 110 mm Boost thru-axle, ensures excellent suspension. The RockShox Deluxe Select Plus air shock complements the suspension system and contributes to a comfortable ride.

Other features include aluminium freeride pedals with reflectors, a SRAM X-Sync II crankset with 36 teeth, and a SRAM Eagle PG1210 cassette with a 11–50-tooth range. The drivetrain is completed by the SRAM SX Eagle. The handlebars are Haibike Components TheBar +++ with a width of 780mm, whilst the grips are Haibike MTB grips. The stem is a Haibike Components TheStem ++, A-Head, with a handlebar clamp diameter of 31.8mm. The headset is an A-Head Tapered model.

The bike is fitted with WTB ST i30 TCS hollow-wall rims, fitted with Maxxis Minion DHF (63-622) and Maxxis Minion DHR II (66-584) tyres. The spokes are black and are from Sapim Race, whilst the front and rear hubs are made of aluminium. The saddle is a Selle Royal Vivo model, and the seatpost is a remote-controlled telescopic dropper post with a diameter of 34.9 mm, made of aluminium.

At the heart of the Haibike ALLMTN 5 is the Bosch Performance CX Smart System motor, delivering 250W of power and 85Nm of torque, which provides maximum assistance up to a speed of 25 km/h. The Bosch PowerTube battery has a capacity of 750 Wh and is charged using the Bosch Standard Charger 4A. The display is a Bosch Kiox 300 with LED remote, which clearly shows all the key information.

Overall, the Haibike ALLMTN 5 offers an impressive combination of performance, comfort and versatility, making it suitable for both experienced mountain bikers and beginners.
