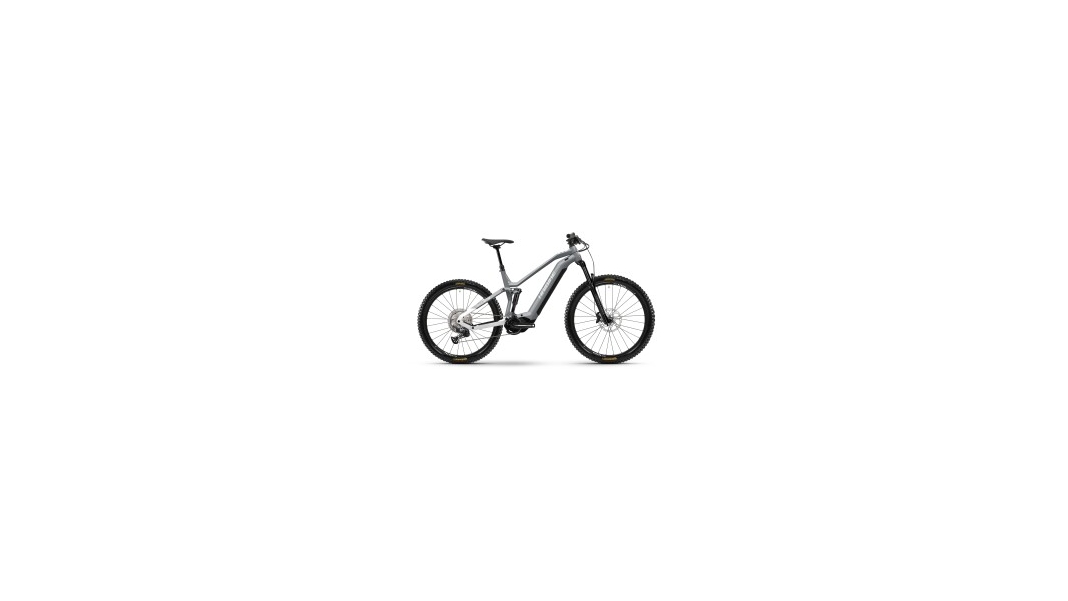

Haibike ALLMTN 3

The "ALLMTN 3" model from Haibike, released in 2023, offers an impressive combination of high-quality components and well-thought-out design at a price of 5599 EUR. The frame is made of robust aluminium and features an M12 (1.00) x 148mm thru-axle as well as a post-mount disc brake. The suspension travel is 160mm at both the front and rear, ensuring excellent suspension performance. The bike’s maximum load capacity is 135 kg.

For the brakes, Haibike has opted for the Shimano MT420 system with Shimano MT401 aluminium brake levers and large 203mm brake discs, which ensure reliable braking power. The drivetrain is a Shimano Deore M6100 with 12 speeds, controlled via trigger shifters from the same series, enabling precise and rapid gear changes.

The ALLMTN 3’s fork is a RockShox 35 Gold RL with air suspension and an aluminium steerer tube that tapers from 1 1/8 to 1 1/2 inches. It is fitted with a 15 x 110 mm thru-axle to the Boost standard. Rear suspension is provided by a RockShox Deluxe Select air shock.

The spec is rounded off by aluminium freeride pedals with reflectors. The crankset is made of steel with 36 teeth, and the cassette is a Shimano M6100 with a range of 10 to 51 teeth. The drivetrain is also completed by Shimano M6100 components.

The handlebars, a Haibike Components TheBar +++, are 780mm wide and, together with the Haibike MTB grips and the Haibike Components TheStem ++ stem (A-Head, bar bore: 31.8mm), provide an ergonomic and stable riding position. The headset is an Acros BlockLock.

The WTB ST i30 TCS hollow-wall rims are fitted with Maxxis Minion DHF tyres (63-622 at the front) and Maxxis Minion DHR II tyres (66-584 at the rear), which ensure excellent grip and control. The spokes are Sapim Race in black, and the hubs are from Shimano (MT400-B front, MT410-B rear).

The saddle is a Selle Royal Vivo, mounted on a 34.9mm-diameter aluminium Dropper-Post Remote telescopic seatpost, which allows for a flexible riding position.

The ALLMTN 3 is powered by a Yamaha PW-X3 motor with an output of 250W and a torque of 85Nm, which provides assistance up to a speed of 25 km/h. The battery is an InTube model with a capacity of 720 Wh, and the display is a Yamaha Side Switch. A 4A fast charger is included for charging.

In summary, the Haibike ALLMTN 3 offers a well-balanced combination of performance, comfort and reliability, making it ideal for challenging mountain bike tours.
