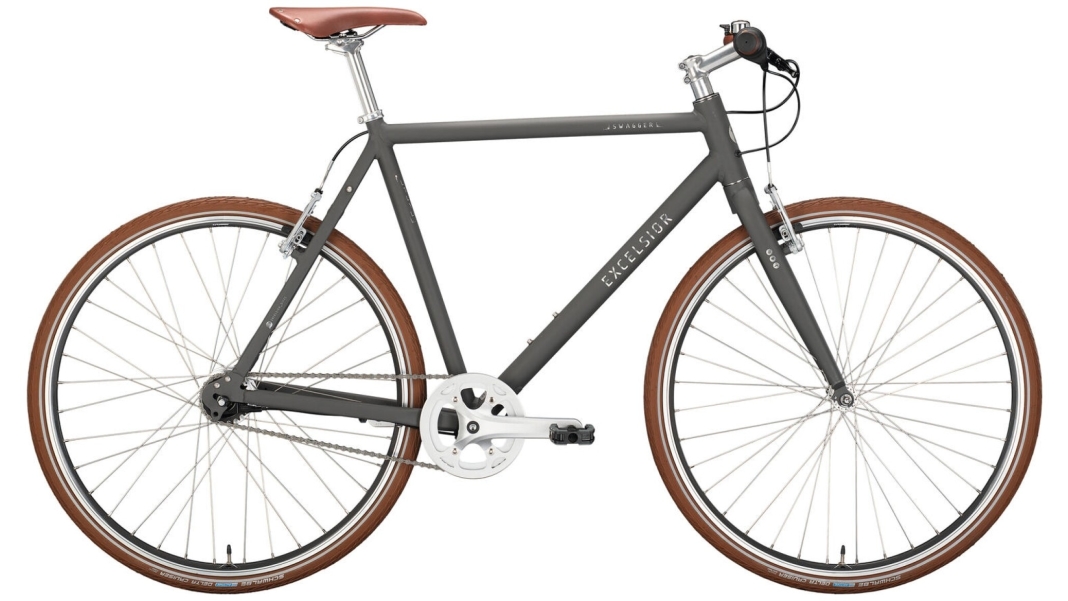

Excelsior Swagger Diamant

Swagger Diamant
Model: Swagger Diamant
Model year: 2024
Price: 749,00 €
Category: Urbanbike
Frame material: Aluminium
Weight: 13 kg
Permissible total weight: 120 kg
Wheel size: 28"/622mm

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

The "Swagger Diamant" model from Excelsior, released in 2024, is a well-equipped bicycle priced at 749 EUR. The frame is made of aluminium in a classic diamond design with a frame size of 57 cm. The maximum load capacity is 120 kg, whilst the bicycle itself weighs 13 kg.

The braking system comprises PROMAX “TX123” V-brakes at both the front and rear, complemented by PROMAX aluminium brake levers, which ensure reliable braking power. The gear system is a 7-speed Shimano ‘Nexus’ LL, operated via the SHIMANO ‘Nexus’ gear lever. Power is transmitted via a KMC Z6 chain, whilst the chainring has 42 teeth and is paired with a 20-tooth sprocket.

The bike’s fork is a Unicrown, and the pedals are MARWI model SP-822 N. The bottom bracket is a VP type with a length of 118 mm, and the crankset is a combination of aluminium and steel from PROWHEEL. The handlebars are 560 mm wide HL MTB aluminium bars, complemented by VELO leather-look grips and a KALLOY “AS-601” stem with a length of 105 mm.

The rims are 36-hole hollow-section rims, laced with stainless steel spokes. The tyres are Schwalbe “Delta Cruiser” in size 37-622, fitted to both the front and rear. The front hub is a 36-hole aluminium model from JOY TECH, whilst the rear hub is the SHIMANO “Nexus” 7-speed LL. The saddle is also from VELO in a leather-look finish, mounted on a PROMAX seatpost made of aluminium with a diameter of 27.2 mm and a length of 300 mm.

The “Swagger Diamant” thus offers a balanced combination of functionality and comfort, ideal for urban use or leisurely rides in the countryside.

more...

Equipment

Rear brakesPROMAX "TX123", silver
Front brakesPROMAX "TX123", silver
BrakesPROMAX V-brake "TX123"
Brake leversPROMAX "BL39AP", 4-finger, black
FrameAluminium, diamond, 57 cm
Frame materialAluminium
Drivetrain7-speed Shimano "Nexus" LL
Shift leversSHIMANO "Nexus SL-C3000-7", 7-speed, black
Drivetrain typeHub gear
Number of gears7
Fork28", steel, 1 1/8", Ahead, matt grey
Bottom bracketVP COMPONENTS "VP-BC73C", square, BSA, 118 mm axle length, 68 mm shell width
CranksetPROWHEEL "SOLID-242-PF", square-cut, 170 mm, 42 teeth, incl. chain guard, silver
Sprocket42 teeth SHIMANO "SM-GEAR", 21 teeth
DriveKMC "Z6", 6-speed
Drive typeChain
HeadsetVP components "A42E", ZS44/28.6 / ZS44/30, 1 1/8" Ahead, silver
HandlebarZOOM "MTB-110PP", 560 mm, Ø 25.4 mm, silver
Grips92/125 mm, brown
StemKALLOY "AS-601", aluminium, Ahead 1 1/8", 25.4 mm handlebar clamp, 105 mm long, silver
SaddleVELO "VL-1962", brown
SeatpostPROMAX "SP-2016", Ø 27.2 mm, 300 mm long, 2-bolt clamping, silver
Wheel size28"/622mm
RimsCROSS "X2", 19-622, 36-hole, rim brake, black
TiresSchwalbe "Delta Cruiser" 37-622
Front tireSCHWALBE "Delta Cruiser" Active Line, 37-622, K-Guard, 50 TPI, brown, reflective
Rear tireSCHWALBE "Delta Cruiser" Active Line, 37-622, K-Guard, 50 TPI, brown, reflective
Front hub36-hole, solid axle, silver
Rear hubSHIMANO "Nexus SG-C3001-7R", 7-speed, freewheel, roller brake mount, 36 holes, silver
SpokesNiro
PedalsUNION "SP-823"
