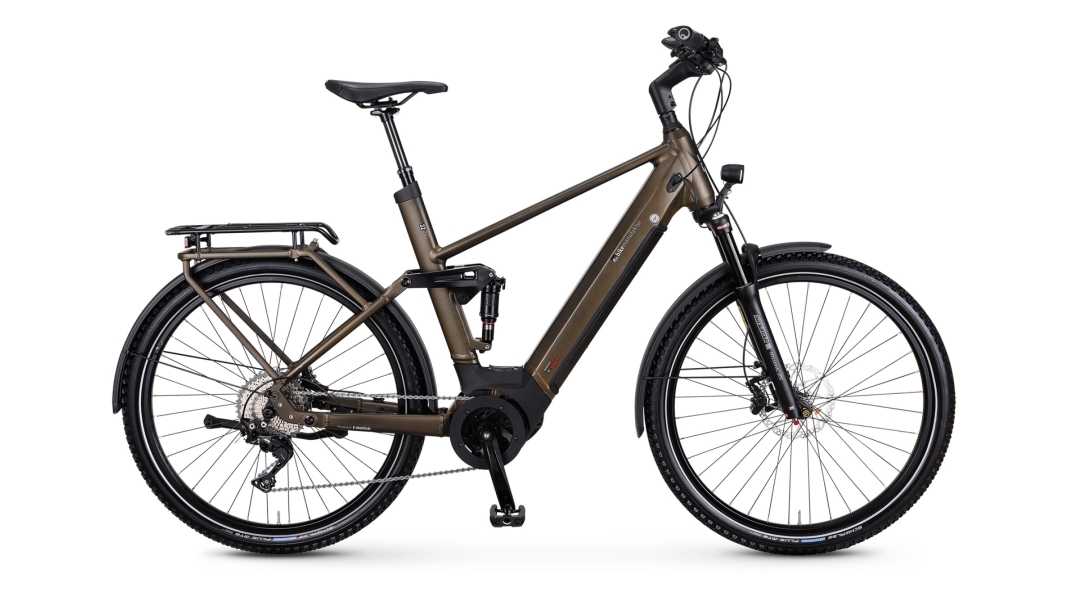

e-bike manufaktur TX22 Bosch Performance Line CX

The “TX22 Bosch Performance Line CX” model from the “e-bike manufaktur” brand, released in 2020, is a high-quality e-bike which, at a price of 5,249 EUR, is positioned in the upper mid-range. The frame is made from 6061 aluminium and features a special Bosch interface, bringing the bike’s weight to 30 kg. The model is fitted with a Shimano Deore XT gear system and shift levers, which ensure precise and reliable gear changes. The braking system comprises Shimano BL-M6000 components with 180 mm disc brakes and 3-finger brake levers, ensuring safe deceleration.

The Suntour Mobie25 Air suspension fork and the Rock Shox Monarch RT3 rear shock provide comfortable suspension on a wide variety of terrain. Lighting is provided by the Busch&Müller Lumotec IQ-XS front light with 70 LUX and the Busch&Müller Shine Evo LED rear light. The aluminium flat pedals and the Lasco aluminium crankset with a 38-tooth KMC chainring complete the drivetrain, which is supported by the KMC E11.

The handlebars are Humpert Ergotec ergonomic handlebars with Ergon GP1 grips, which ensure an ergonomic ride. The stem is a Humpert Ergotec Integra-BK with a diameter of 31.8 mm. The wheelset comprises Schürmann YAK 25 Disc aluminium hollow-section rims with Schwalbe Marathon Plus MTB tyres in size 57-584, complemented by Shimano Deore hubs and Niro 2.0 mm spokes.

The saddle is an Ergon Essenza model, mounted on a Kind Shock KSP900i aluminium dropper seatpost. Racktime Wingee aluminium mudguards and a Pletscher Comp Flex rear kickstand are also included. The luggage rack is integrated into the frame and features the Racktime system with a spring-loaded flap.

Power is provided by a Bosch Performance Line CX mid-drive motor with 250 watts of power, supported by a fully integrated Bosch frame battery with 36 volts and a capacity of 17.4 Ah. Control is via a Bosch Kiox display, which clearly shows all the key information. This e-bike combines high-quality components and well-thought-out features for a comfortable and reliable riding experience.
