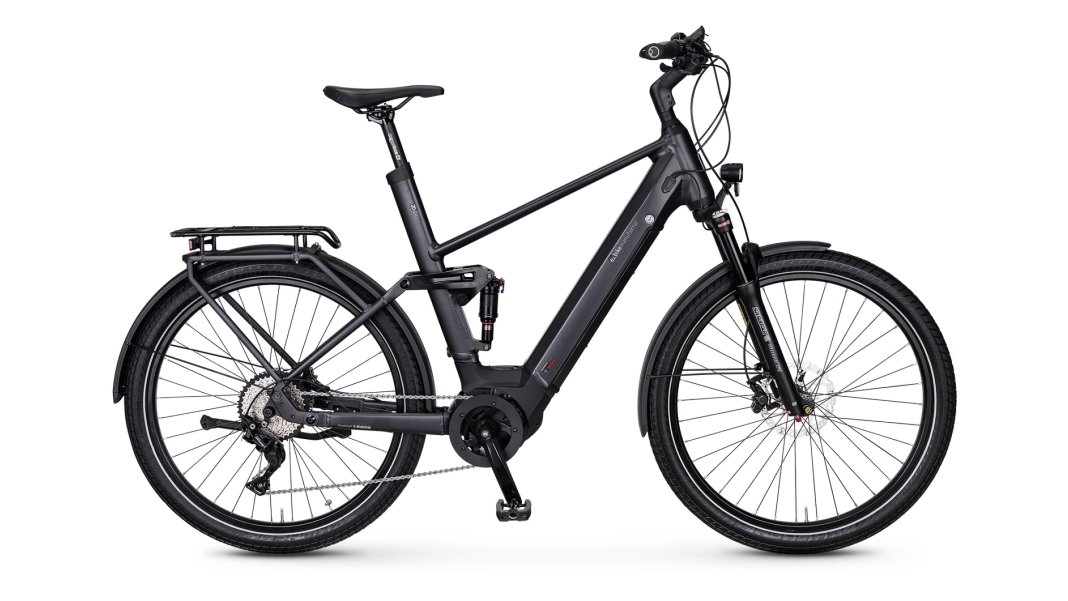

e-bike manufaktur TX20 Bosch Performance Line CX

The "TX20 Bosch Performance Line CX" model from the "e-bike manufaktur" brand, launched in 2020, is a high-quality e-bike featuring a host of well-thought-out technical details. It is priced at 4,829 EUR. The frame is made from 6061 aluminium and is specifically designed to integrate the Bosch interface, giving the model a weight of 29 kg.

Braking performance is provided by Shimano BL-M6000 brakes with a diameter of 180 mm, complemented by the 3-finger brake levers of the same model. Gear changes are handled by Shimano Deore components, ensuring precise and reliable shifting. The 27.5-inch aluminium Suntour Mobie25 Air suspension fork, together with the Rock Shox Monarch RT shock absorber, ensures a comfortable ride on a variety of surfaces.

The lighting system comprises the Busch&Müller Lumotec IQ-XS front light, with a luminous intensity of 70 LUX, and the Busch&Müller Shine Evo LED rear light, which ensure adequate visibility in road traffic. The aluminium flat pedals provide a solid base for the rider, whilst the Lasco aluminium crankset, featuring a 38-tooth KMC chainring and the Shimano HG50 cassette with 11–42 teeth, ensures efficient power transfer.

The handlebars are Humpert Ergotec ergonomic handlebars, fitted with Ergon GP1 grips, which allow for an ergonomic hand position. The stem is also from Humpert Ergotec, the Barracuda model, with a diameter of 31.8 mm. The headset is an Acros AZX-212 R5, which contributes to stability and steering precision.

The Schürmann YAK 25 Disc aluminium hollow-wall rims, together with the Schwalbe Super Moto-X tyres (62-584), offer a stable and comfortable ride. The hubs are Shimano Deore and the spokes are 2.0 mm Niro, which contributes to the robustness of the 27.5-inch wheelset.

The saddle is an Ergon Essenza model, mounted on a Humpert Atar aluminium seatpost. Aluminium Racktime Wingee mudguards and a Pletscher Comp Flex rear stand complete the specification. The luggage rack is integrated into the frame and features the Racktime system with a spring-loaded flap, which makes it easier to carry luggage.

Power is provided by the Bosch Performance Line CX mid-drive motor with an output of 250 watts, combined with a fully integrated Bosch frame battery with a capacity of 17.4 Ah and a voltage of 36 volts. The Bosch Intuvia display rounds off the package, offering the rider intuitive operation and useful information whilst riding.
