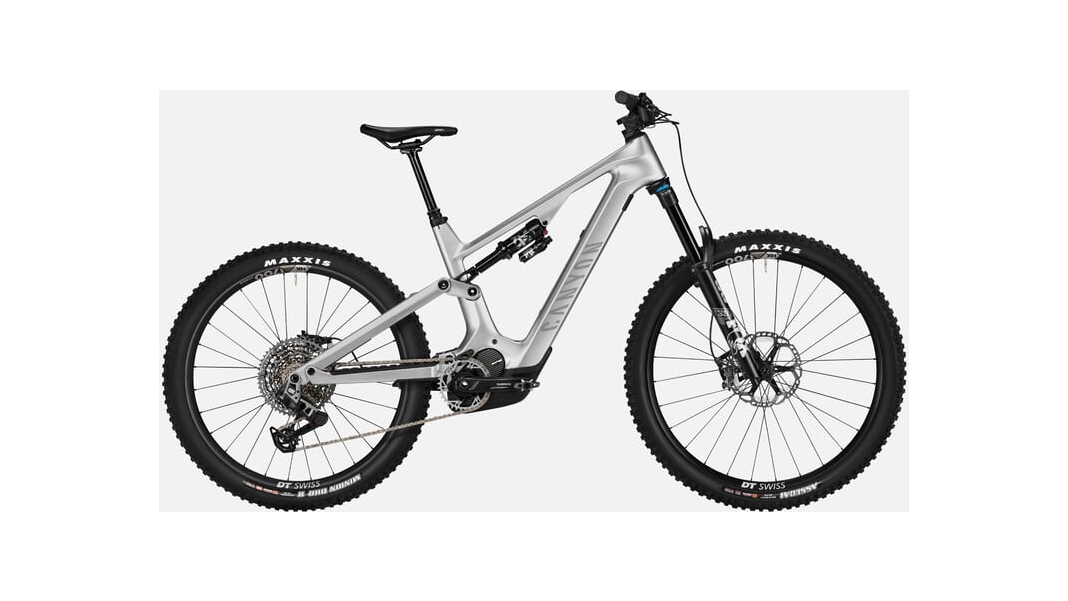

Canyon Spectral:ON CF 9

The Canyon Spectral:ON CF 9 is a high-quality e-mountain bike designed for discerning riders. Priced at 6,499 EUR, this model offers impressive specifications and well-thought-out technical features. The frame is made of carbon and plays a major part in keeping the total weight down to 24.4 kg, which is remarkable for an e-MTB in this class.

The Spectral:ON CF 9’s braking system comprises Shimano DEORE XT M8120 brakes, fitted with brake discs up to 203 mm in diameter. At the front, a 203 mm Shimano XT brake disc is fitted, ensuring excellent braking performance. The drivetrain is handled by the SRAM GX Eagle AXS transmission, which, in combination with the SRAM AXS POD Infinity shifter, enables precise and reliable gear changes.

Suspension is provided at the front by a fork with 160 mm of travel, whilst the Fox Float X Performance Evolution shock at the rear ensures additional control and comfort on rough terrain. The spec is complemented by a front light in the form of a reflector set, which provides additional safety in low-light conditions.

The bike is fitted with VP-536 pedals and features a Shimano STEPS crankset. The handlebars, a Canyon:ON HB0057 riser bar, are 760 mm wide and have a 30 mm rise. The stem, a Canyon:ON ST0031, is 45 mm long and has a clamp diameter of 35 mm. The grips are Canyon Lock-On grips, which provide a secure grip and comfort.

The Spectral:ON CF 9 is fitted with Maxxis Minion DHR II tyres measuring 27.5" x 2.60 WT, mounted on a DT Swiss H1700 wheelset with a rim size of 29"/622 mm. The saddle is a Fizik Terra Aidon X5, fitted to an Iridium Dropper Post seatpost with a length of 378 mm.

Additional features include a Canyon Organza Bag, a 15mm Wrench Tool, a Canyon Smallbox and a Quick Start Guide. The bike is powered by a Shimano EP801 motor, with the battery varying depending on the chosen configuration. The charger is the Canyon BC001.

The bike’s geometry comprises a reach of 435 mm, a stack of 634 mm, a seat tube length of 420 mm and a top tube length of 589 mm. The seat tube angle is 76 degrees, the head tube length is 115 mm and the spacers are 15 mm high. The standover height is 809 mm and the crank length is 165 mm. The wheelbase is 1 mm.

In summary, the Canyon Spectral:ON CF 9 offers a well-thought-out overall package comprising high-quality components and first-class workmanship, making it suitable for both ambitious amateur cyclists and professionals.
