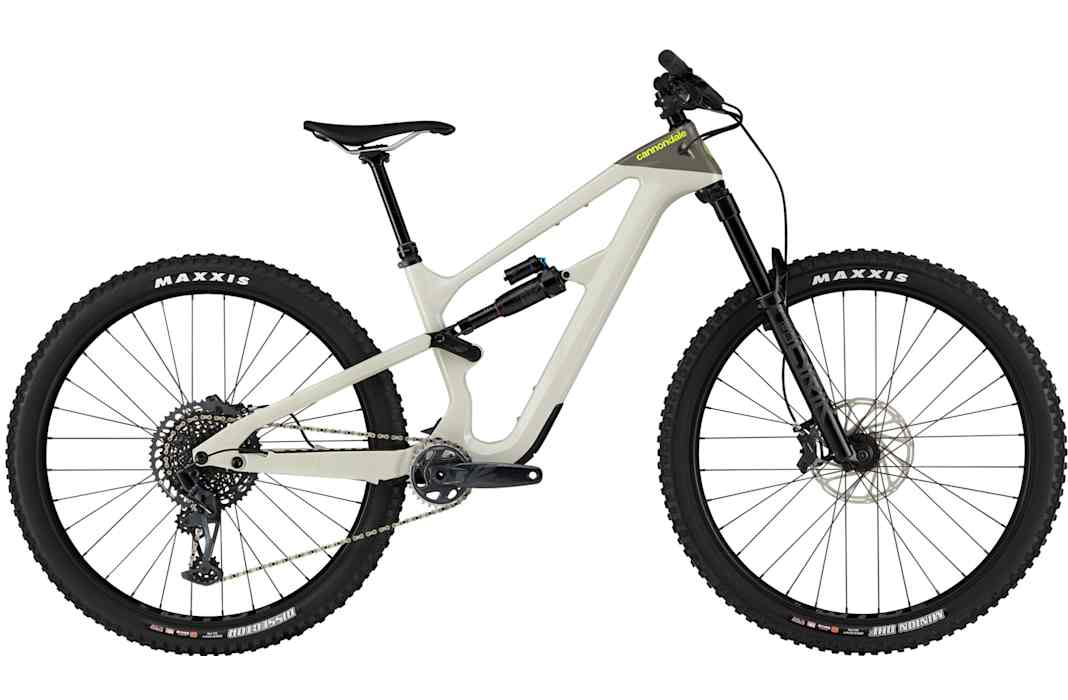

Cannondale Habit Carbon LT 1

The Cannondale Habit Carbon LT 1 from 2024 is a high-quality mountain bike designed for demanding trail riders. With a price tag of EUR 5999, it offers impressive equipment and advanced technology. The frame is made of Habit Full Carbon and offers 130 mm of suspension travel. It is equipped with Proportional Response suspension and geometry and has a 55 mm chainline, ISCG05 mount as well as a BSA threaded bottom bracket and a post-mount brake mount.

The brakes are SRAM Code R hydraulic disc brakes with 4-piston brake callipers and HS2 discs with a diameter of 200 mm at the front and rear. The drivetrain is a SRAM GX Eagle Lunar with 12 gears, which is operated via a SRAM GX Eagle 12-speed shifter. The front suspension is provided by the RockShox Lyrik Select+ fork with 150 mm travel and DebonAir technology, while the rear shock is a RockShox Super Deluxe Select+ with adjustable rebound and 2-pos mode.

The bottom bracket is a SRAM DUB BSA MTB73 Wide, and the crankset is also from SRAM GX Eagle with a 30T chainring configuration. The cassette is a SRAM Eagle XG-1275 with a gear ratio of 10-52 teeth. The handlebar is a HollowGram SAVE riser bar made of carbon with a width of 780 mm, a rise of 30 mm and a backsweep of 8 degrees. The grips are Cannondale TrailShroom, and the stem is a Cannondale 1 made of 7075 aluminium with a length of 35 mm.

The wheels are WTB KOM Trail i30 TCS rims with DT Swiss Champion spokes and hubs, with the front hub being a Formula 15x110 mm Thru-Axle and the rear a DT Swiss Star Ratchet 12x148 mm Thru-Axle. The tyres are Maxxis Minion DHF at the front and Maxxis Dissector at the rear, both in size 29x2.5" and tubeless ready.

The saddle is a Cannondale Scoop Shallow Elite with Cro-Mo rails, mounted on a Cannondale DownLow Dropper seatpost with internal cable routing and an adjustment range of 150 mm. The total weight of the bike is around 50,000 g.

The geometry of the Habit Carbon LT 1 comprises a reach of 425 mm, a stack of 626 mm, a seat tube length of 380 mm, a top tube length of 563 mm, a head tube angle of 65 degrees, a seat tube angle of 77 degrees, a head tube length of 110 mm, a chainstay length of 435 mm, a fork pre-bend of 44 mm, a standover height of 736 mm and a wheelbase of 1177 mm.

To summarise, the Cannondale Habit Carbon LT 1 offers a first-class combination of lightweight construction, advanced suspension technology and precise shifting and braking performance, making it an ideal companion for demanding trail adventures.
