Aaron Gwin's TRP brakes now available to all

Ludwig Döhl

 · 21.04.2017

Aaron Gwin's TRP brakes now available to allPhoto: Ludwig Döhl
Aaron Gwin's TRP brakes now available to all
With the new Quadiem G-Spec, TRP wants to build a competitive MTB brake for the premium sector. The new slate model is primarily intended to appeal to trail and enduro riders.

To experience the hellish rides of downhill star Aaron Gwin to slow down, the TRP Quadiem G-Spec to give it a good grip. With four pistons per brake calliper, this should not be a problem for either the Quadiem downhill brake or the Slate enduro stopper. TRP relies on tried and tested Shimano products for both the brake fluid and the brake pads. This means that, in addition to the original TRP pads, all pads that are suitable for Shimano's Saint or Zee brakes. are compatible. Shimano mineral oil can be used to bleed the brakes; the Shimano bleed kit is fully compatible with the Slate and partially compatible with the Quadiem.

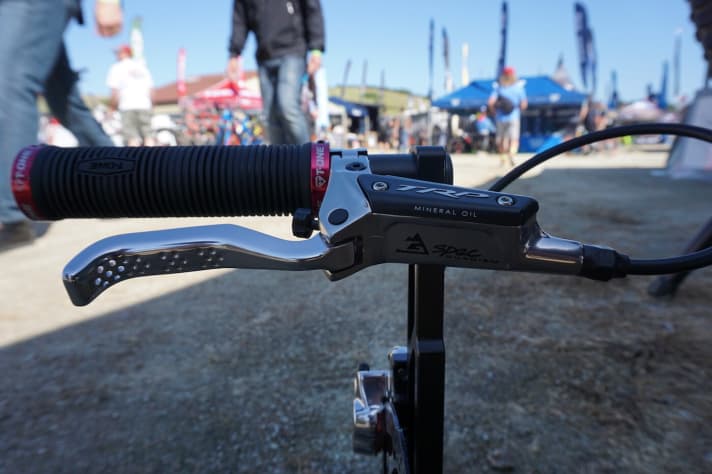

  Particularly striking on the lever of the new TRP Quadiem brake: the wide contact surface for the finger.Photo: Ludwig Döhl Particularly striking on the lever of the new TRP Quadiem brake: the wide contact surface for the finger.

The brake levers on the Quadiem received particular attention during development. With a wide contact surface for the index finger, it should be particularly ergonomic and not cut off the finger, especially on long descents. The brake lever on the Slate is slightly smaller and is very reminiscent of the levers on current Shimano brakes. The lever width of the Quadiem and Slate brakes can even be adjusted without tools using a small rotary wheel. The folding clamp makes mounting on the handlebars particularly easy.

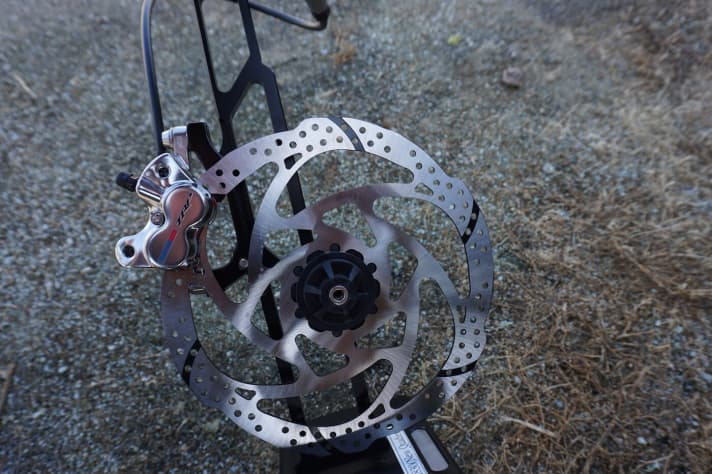

  Both the brake calliper and brake lever of the TRP G-Spec models (here Quadium) are highly polished. The black recesses in the brake disc are intended to help keep the disc clean in bad weather.Photo: Ludwig Döhl Both the brake calliper and brake lever of the TRP G-Spec models (here Quadium) are highly polished. The black recesses in the brake disc are intended to help keep the disc clean in bad weather.

The top models of the respective brakes are labelled "G-Spec" and have highly polished levers and brake callipers, while the cheaper models are simply painted. Recesses in the brake discs (black areas on the contact surface with the brake pads) are designed to keep dirt and water away from the disc in poor weather conditions. All brakes should be available from mid-May.

How do you like this article?

The facts about the TRP Quadiem G-Spec


Price: 186 Euro (per brake without brake disc)


Price brake disc: 39 Euro


Front brake weight: 315 grams (manufacturer's specification; caliper, brake lever and cable only; without pads and discs)

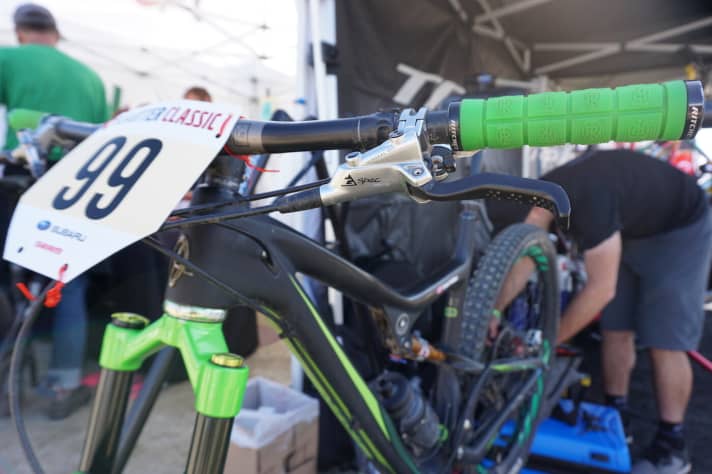

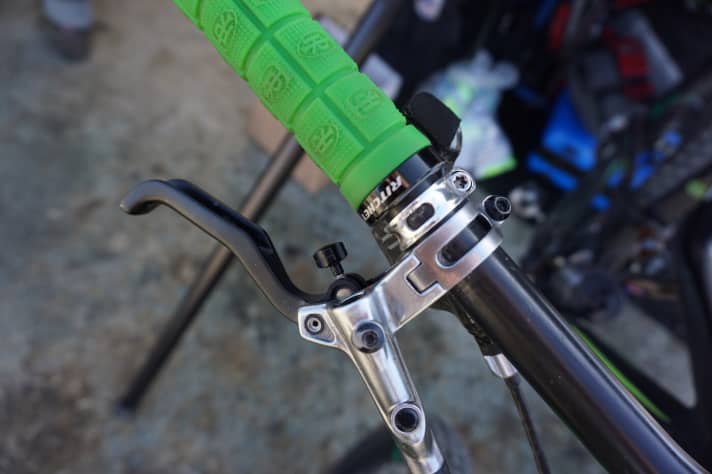

  The brake lever of the TRP Slate is slightly smaller than that of the Quadiem and is reminiscent of that of current Shimano brakes.Photo: Ludwig Döhl The brake lever of the TRP Slate is slightly smaller than that of the Quadiem and is reminiscent of that of current Shimano brakes.  The rotary wheel is used to adjust the lever width. The pressure point cannot be adjusted separately.Photo: Ludwig Döhl The rotary wheel is used to adjust the lever width. The pressure point cannot be adjusted separately.  Both the TRP Slate and the Quadiem brakes are compatible with the brake pads of the Shimano Saint or Zee.Photo: Ludwig Döhl Both the TRP Slate and the Quadiem brakes are compatible with the brake pads of the Shimano Saint or Zee.

The facts about the TRP Slate G-Spec


Price: 150 Euro (per brake without brake disc)


Price brake disc: 39 Euro


Front brake weight: 290 grams (manufacturer's specification; caliper, brake lever and cable only; without pads and discs)
