Canyon Grand Canyon:On: Hardtail e-bike with Bosch motor out of the shipping box

Canyon is expanding its e-bike portfolio with the new Grand Canyon:On. According to the manufacturer, the e-hardtail is suitable for both everyday use and easy trails. It is powered by a 5th generation Bosch Performance Line CX motor with up to 85 Newton metres of torque and 600 watts of peak power. It is the first e-bike that Canyon has equipped with the Bosch Performance Line CX, which was relaunched in autumn shows. Riders can choose between four support levels, which are controlled via a Purion display control unit.

Update compared to the Predecessor of the Canyon Grand Canyon:OnThe battery is integrated in the down tube, but can be easily and quickly removed in the new version. Previously, the battery was permanently installed in the down tube. Canyon offers capacities of 600 or 800 watt hours. A 250 watt hour range extender can be fitted as an option, increasing the total capacity to 1050 watt hours. The Grand Canyon has an aluminium frame that has been tested to Category 3 standards. According to Canyon, the total weight is less than 25 kilograms. The system weight limit is 130 kilograms.

The facts about the Canyon Grand Canyon:On

• Motor: Bosch Performance Line CX (5th generation), 85 Nm, 600 W peak
• Battery: 600 Wh or 800 Wh, removable
• Optional: 250 Wh range extender
• Frame material: Aluminium
• Suspension fork: 120 mm travel
• Wheels: 29 inch
• Tyre width: 2.6 inch width
• Frame sizes: S, M, L, XL
• Permissible total weight: 130 kg
• Two models: AL 8 and AL 7 for 3499 and 2799 euros respectively
• Predecessor model Grand Canyon:On 9 with ABS continues to run
• Special features: Trailer-compatible, 5 attachment points for bottle cage/range extender, skid plate, UDH

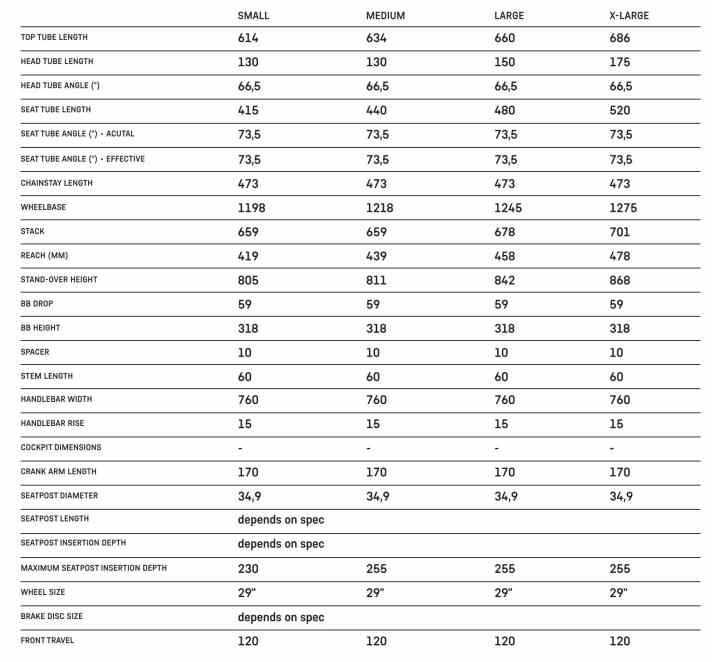

Geometry and frame details

According to Canyon, the geometry of the Grand Canyon was designed for a mixture of agile trail performance and comfort in an urban environment. The steering angle is 68 degrees. A 120 millimetre suspension fork is designed to absorb bumps on trails and in the city. The bike rolls on 29-inch wheels with 2.6-inch wide tyres. Deceleration is provided by hydraulic disc brakes with 200 millimetre rotors at the front and 180 millimetre rotors at the rear. The handlebar measures 760 millimetres in width. Canyon offers the Grand Canyon in four frame sizes from S to XL, which should cover body sizes from 1.60 to 2.00 metres.

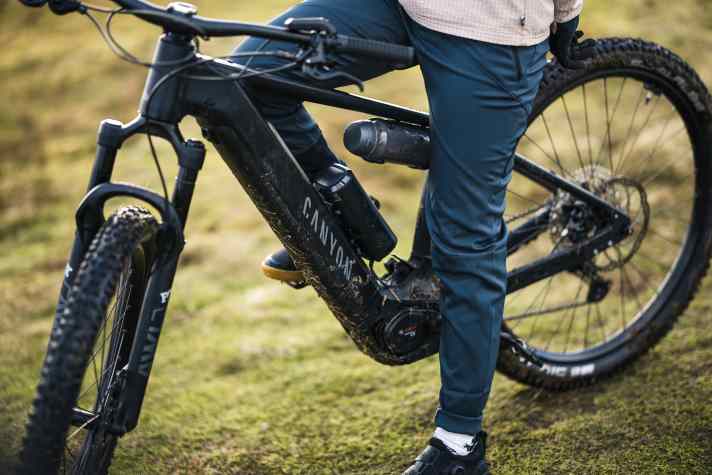

There are five attachment points on the frame for bottle cages or a range extender. Special feature: The additional battery and a water bottle can be attached to the bike at the same time. This does not work with many e-MTBs. The bike is also suitable for trailers and offers the option of mounting a stand. A skid plate made of carbon fibre-reinforced material is designed to protect the chainring and motor from damage. The rear derailleur is attached via a Universal Derailleur Hanger (UDH), which makes the frame compatible with the latest generation of Sram derailleurs with Direct Mount.

Models, prices and availability

The Grand Canyon:On is available in two equipment variants: AL 8 and AL 7, starting at 2799 euros. The bikes will be available immediately on the direct mail order company's website. Also in the new Canyon store in Munich, which has just opened you can marvel at the new bike. Both bikes are available with either Powertube 600 or Powertube 800 and are expected to weigh between 23.6 (600 Wh) and 25.3 kilos. There are also two colour options for each model.

As the top-of-the-range Grand Canyon:On 9 model, Canyon continues to run the predecessor model with the older Bosch system and ABS.

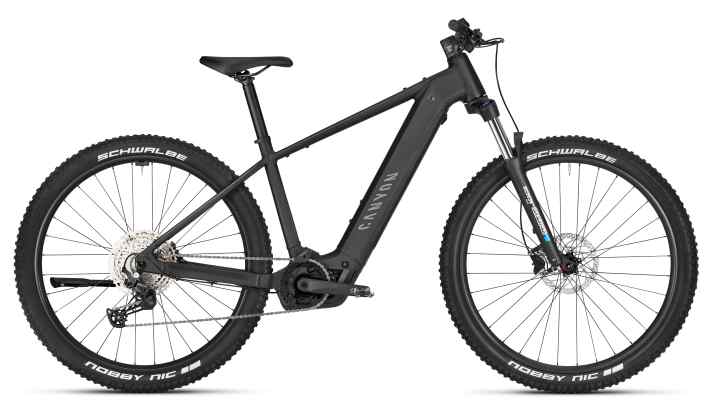

Canyon Grand Canyon:On 7 - from 2799 Euro

• Motor: Bosch Performance CX Gen5
• Battery: either Bosch Powertube 600 or 800
• Suspension fork: SR Suntour XCM 34, 120 mm
• Gear system: Shimano Deore 12-speed
• Brakes: Shimano MT 200, 180 mm
• Tyres: Schwalbe Nobby Nic Performance, 29 x 2.6''
• Weight: 24.5 or 25.3 kg (600 or 800 Wh)

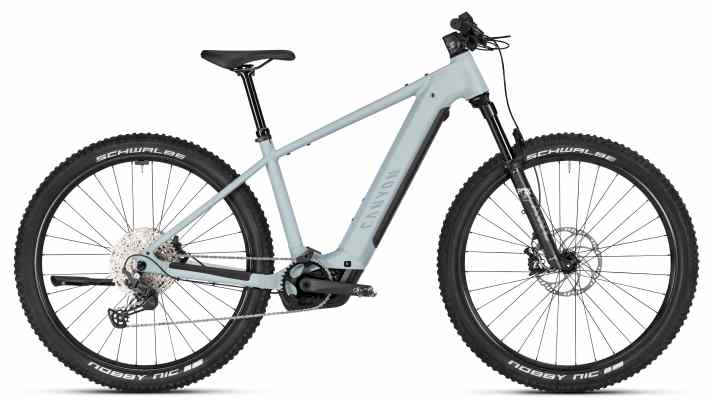

Canyon Grand Canyon:On 8 - from 3499 euros

• Motor: Bosch Performance CX Gen5
• Battery: either Bosch Powertube 600 or 800
• Suspension fork: Fox AWL, 120 mm
• Gear system: Shimano Deore 12-speed
• Brakes: Magura MT thirty, 203 mm
• Tyres: Schwalbe Nobby Nic Performance, 29 x 2.6''
• Seatpost: Canyon Dropper
• Weight: 23.6 or 24.4 kg (600 or 800 Wh)

Canyon Grand Canyon:On 9 - from 4299 euros

• Motor: Bosch Performance Line CX Gen4
• Battery: Bosch Powertube 750
• Suspension fork: Fox AWL, 120 mm
• Gear system: Shimano Deore XT, 12-speed
• Brakes: Magura CTE ABS, 4-piston brakes (203 mm)
• Tyres: Schwalbe Nobby Nic Performance, 29 x 2.6''
• Seatpost: Canyon Dropper
• Weight: 24.2 kg
