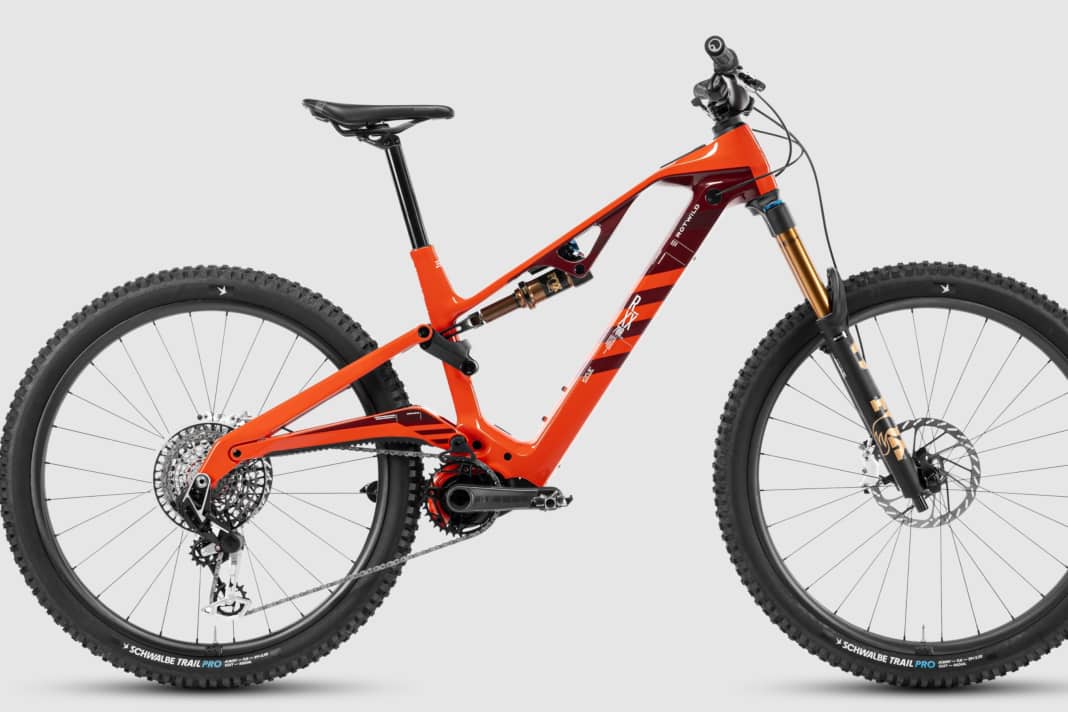

Rotwild R.XX Ultimate: A top-of-the-range e-trail bike for 13,490 euros – no need to pimp it!
Josh Welz
· 24.09.2026
Our verdict on the Rotwild R.XX Ultimate
13,490 euros for an e-trail bike? That’s quite a statement, even in the premium segment. After all, Rotwild is offering the full works: Fox Factory, SRAM XX AXS, carbon wheels and 1,500-watt Avinox power. Pimping, tuning, retrofitting – At least with the Rotwild R.XX Ultimate, you don’t have to worry about that.
Rotwild had already unveiled the R.XX to the global public this summer. In a nutshell: with this model, Rotwild aims to deliver maximum motor power whilst keeping the weight to a minimum. This lightweight e-mountain bike is designed to impress with its agile handling and high level of riding enjoyment. 160 millimetres of front suspension travel and 150 millimetres at the rear provide plenty of headroom for technical descents – but the focus is on minimal weight and active, playful handling. The specially tuned Elevated Box kinematics are designed to provide direct feedback from the terrain and encourage riders to actively engage with the trail.
The Polydynamic Carbon frame houses the 700 Wh battery, which is fully integrated into the down tube. In sizes S and M, the R.XX is a mullet bike with a 29-inch front wheel and a 27.5-inch rear wheel. From size M/L upwards, Rotwild opts for two 29-inch wheels. Five frame sizes, adjustable chainstays and a long reach are designed to ensure a balanced riding position and smooth handling across all sizes.
Rotwild R.XX Ultimate: Fully equipped with no compromises
So, here’s the Ultimate. Naturally, it comes with the incredibly powerful Avinox M2.S, delivering up to 150 Newton-metres of torque and 1,500 watts, a 12-amp charger and the super-slim 700 Wh battery. Rotwild hasn’t yet specified a weight for the Ultimate, but earlier statements mentioned a figure of 20 kilos.
As befits its price tag, the R.XX Ultimate struts its stuff on the trail with only the very finest components: a Fox 36 Float Factory Kashima with Grip-X damping, a Fox Float X Factory Kashima, an SRAM XX Eagle AXS drivetrain and SRAM Motive Ultimate carbon brakes. The package is rounded off with Newmen Phase carbon wheels, carbon cranks from ethirteen, an 8Pins dropper post and Rotwild’s own B220 carbon handlebars. The Lava Orange frame colour is reserved exclusively for the Ultimate.
The key equipment highlights
- Polydynamic carbon frame with a permanently integrated 700 Wh battery
- Avinox M2.S with up to 1,500 W and 150 Nm
- Fox 36 Float Factory Kashima with 160 mm travel
- Fox Float X Factory Kashima with 150 mm travel
- SRAM XX Eagle AXS drivetrain with a 10–52-tooth cassette
- SRAM Motive Ultimate Carbon with 200 mm HS2 rotors
- Newmen Phase Carbon Wheels
- ethirteen Race Carbon Cranksets
- Rotwild B220 Carbon Handlebar
- 8Pins NGS3.0 Vario seatpost with up to 240 mm of travel in XL
- Price: 13,490 euros
Geometry of the Rotwild R.XX Ultimate
| Measure | S | M | M/L | L | XL |
| Seat tube | 399 mm | 423 mm | 447 mm | 470 mm | 494 mm |
| Top tube | 553 mm | 580 mm | 603 mm | 625 mm | 654 mm |
| Head tube | 105 mm | 115 mm | 125 mm | 135 mm | 150 mm |
| Chainstays | 435 mm | 440 mm | 445 mm | 452.5 mm | 460 mm |
| Bottom bracket height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Bottom bracket lowering | 20 mm | 20 mm | 30 mm | 30 mm | 30 mm |
| Steering angle | 64° | 64° | 64° | 64° | 64° |
| Seat angle | 77° | 77° | 77° | 77° | 77° |
| Reach | 430 mm | 455 mm | 475 mm | 495 mm | 520 mm |
| Stack | 623 mm | 632 mm | 641 mm | 650 mm | 663 mm |
| Wheelbase | 1,203 mm | 1,237 mm | 1,267 mm | 1,299 mm | 1,338 mm |
| Overhang height | 754 mm | 754 mm | 754 mm | 754 mm | 754 mm |
