E-bike workstands: The best workstands for heavy loads

Why e-MTBs place special demands on assembly stands

Ever tried hoisting a 25-kilo e-bike onto a repair stand with one hand whilst closing the clamp with the other? You’d soon find yourself wishing for a third arm – or at least an assistant. With the rise in popularity of high-performance e-mountain bikes, the demands placed on workshop equipment have changed. Whilst a classic trail bike used to rarely weigh more than 14 kilograms, modern e-MTBs usually weigh between 22 and 28 kilograms. Added to this are long wheelbases, wide handlebars and, in some cases, delicate carbon frames. A repair stand for an e-MTB must therefore fulfil three key requirements today:

• high load-bearing capacity
• maximum stability
• Easy to use despite the bike’s heavy weight

Whereas in the past, even a cheap model from a discount store would have been good enough for the odd bit of work on a bike, standards have now risen significantly. Anyone who regularly cleans their e-bike, services the suspension or adjusts the drivetrain components will quickly come to appreciate a sturdy repair stand. Nothing is more frustrating than the bike twisting whilst you’re working on it, or the whole stand wobbling under the weight of the e-MTB.

What should I look out for when buying an e-MTB assembly stand?

1. Sufficient load-bearing capacity

The most important factor is the maximum load capacity. For modern e-MTBs, the assembly stand should be able to support at least 35 kilograms. If you ride a particularly heavy model or have fitted accessories such as a luggage rack and panniers, you’ll be on the safe side with a load capacity of 45 kilograms. Many budget bike stands are designed for 20 to 25 kilograms and are therefore already pushing the limits.

2. Stable base

The heavier the bike, the more important it is to have a wide tripod or a sturdy base. A good e-bike assembly stand must not wobble, even if the bike is turned to one side or its centre of gravity is poorly distributed.

3. Clamping mechanism

For most jobs, it is advisable to secure the bike to the seat post. This protects the frame and reduces the risk of pressure marks. Modern quick-release clamps with additional fine-tuning via a crank or ratchet are particularly handy. This allows you to secure a heavy bike in a controlled manner.

4. Transport dimensions

Many mountain bikers take their bike stands with them on holiday, to the paddock or to events. That’s why it’s worth checking the packed dimensions. Good premium models fold up compactly and fit easily into the boot.

5. Supply of spare parts

This is a point that is often underestimated. Reputable manufacturers continue to supply spare parts for clamps, tensioning levers and rubber pads even years after purchase. This makes the investment much more sustainable in the long term. So, before buying, be sure to check the availability of spare parts on the manufacturer’s website.

The best repair stands for e-MTBs

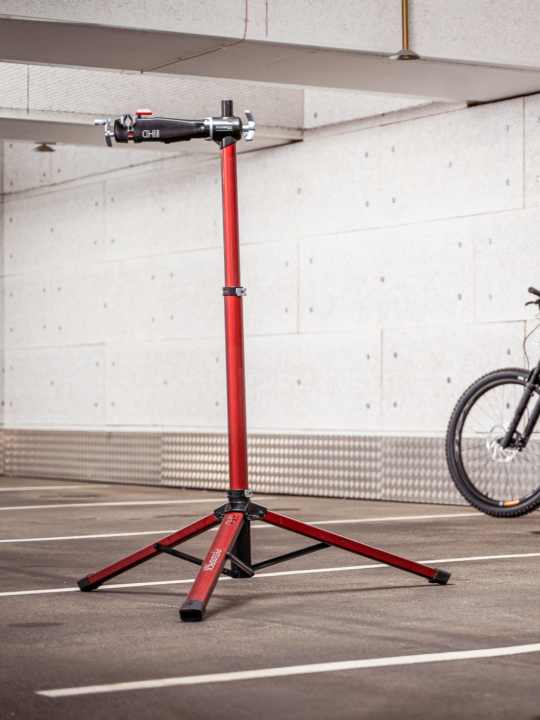

Feedback Sports Pro Mechanic HD

For many keen DIY mechanics, the Pro Mechanic HD is currently one of the best solutions on the market. The stand has been specially developed to meet the increased demands of modern e-bikes and can support up to 45.5 kilograms. At the same time, it remains portable and can be folded away compactly. Its arm is built to be extra-sturdy and features a quick-release clamp that can be operated with one hand. Price: 495 euros >> available here.

Pros:

• Load capacity up to 45.5 kg
• very high stability
• excellent workmanship
• Quick, one-handed operation with fine adjustment
• compact pack size

Feedback Sports Pro Mechanic

The Pro Mechanic is the little brother of the Pro Mechanic HD and a classic in countless workshops and test editorial offices. The Pro Mechanic is slightly lighter and more compact, yet still offers a maximum load capacity of up to 34 kilograms. This makes it suitable for many e-MTBs, provided they aren’t among the absolute heavyweights. Here, too, the clamp can be closed with one hand and then fine-tuned. Price: 395 euros >> available here.

Pros:

• low weight
• very easy to transport
• high-quality workmanship
• long-term supply of spare parts

Topeak PrepStand Team Edition

With the PrepStand Team Issue, Topeak offers an extremely robust, heavy-duty assembly stand. It also has a maximum load capacity of 45 kilograms. The quick-release clamp and the integrated magnetic surface for tools and small parts are particularly well designed. Price: 549.95 euros >> available here.

Pros:

• Load capacity up to 45 kg
• very large clamping width
• high stability
• clever tool tray

Park Tool PCS-10.3

If you’re not necessarily looking for the smallest possible pack size, but are instead after a sturdy bike stand for your home workshop, you should take a look at the PCS-10.3. With a load capacity of 36 kilograms, it’s suitable for most e-MTBs and offers the high quality you’d expect from Park Tool. The clamping mechanism is operated via a rotary knob and isn’t quite as quick to operate as on the models from Feedback Sports and Topeak. Price: 395 euros >> available here.

Pros:

• very stable
• sturdy steel construction
• a comparatively low price
• good supply of spare parts

Cheap or expensive? How much money should you invest?

The price differences between assembly stands are enormous. Some budget models from discount retailers are available for less than 100 euros. Here, we explain why, when in doubt, you’re usually better off with a slightly more expensive model, and how much you’ll need to spend on a high-quality assembly stand:

Under 150 euros

Here you’ll find a wide range of universal steel models. These are often suitable for city bikes or light mountain bikes, but are generally only recommended to a limited extent for heavy e-MTBs.

200 to 300 euros

This section features models that are suitable for serious work on e-bikes. Models such as the Park Tool PCS-10.3 already offer high stability and sufficient load-bearing capacity for many applications.

400 to 550 euros

This is where the premium stands from Feedback Sports and Topeak really come into their own. Anyone who regularly carries out their own repairs and values portability, ease of use and durability will find this a wise investment.

My recommendation: Anyone who owns an e-MTB costing between 5,000 and 10,000 euros and services it regularly shouldn’t skimp on a repair stand. A high-quality model often lasts well over ten years and makes every repair much more convenient, thereby making the work more enjoyable – which is also an important point. After all, your hobby is meant to make your time more enjoyable, not cause frustration.

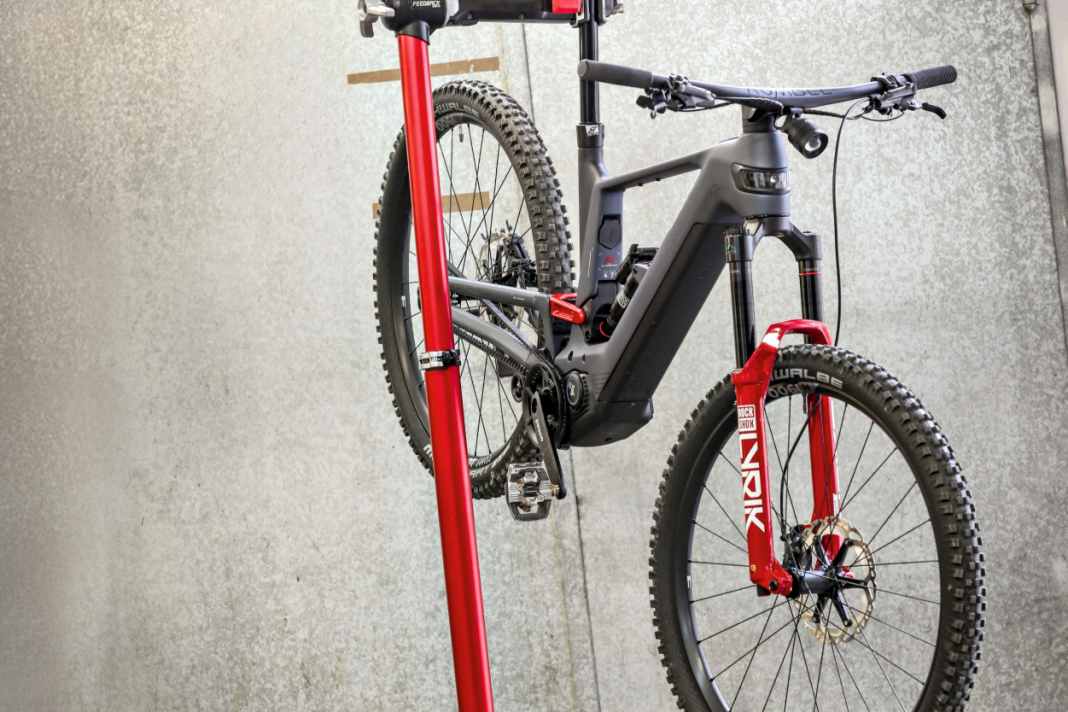

How to secure your e-MTB in the repair stand

Clamp it to the seat post

Do not attach it to the carbon frame, but to the extended seatpost if possible. It is fine to clamp your telescopic seatpost to the upright tube of the bike stand. However, the clamping jaws should be clean so as not to scratch the surface. If in doubt, place a clean cloth between them. Furthermore, you should only hang the seatpost in the bike stand when it is fully extended, as otherwise – just as when lifting the bike by the saddle – the weight of the bike could cause air to enter the seatpost.

Take care to keep the centre of gravity in mind, remove the battery

Try to balance the bike as centrally as possible. You can remove the battery before carrying out any major work. This often reduces the weight by three to four kilograms and significantly improves handling. What’s more, the much lighter bike is also much easier to hoist onto the repair stand.

Align the supporting leg

With tripod stands, the clamp should, where possible, be positioned above one of the legs. This significantly improves stability.

You should avoid these mistakes

• Clamp the bike to the top tube rather than the seat post
• push the stand to its maximum load capacity
• Carry out work on sloping or soft ground
• Rotate or swivel the bike whilst the tool is fitted
• Lift heavy e-MTBs into the clamp in a jerky motion

This is particularly true of carbon components: less clamping force is often better. The bracket should be secure, but should never be overtightened.

Editor’s conclusion

Modern e-MTBs present assembly stands with challenges that are completely different from those of traditional bicycles. If you want to enjoy tinkering with your bike in the long term, you should look for a high load-bearing capacity, maximum stability and a high-quality clamping system.

In my view, the Feedback Sports Pro Mechanic HD, the Topeak PrepStand Team Edition and the Park Tool PCS-10.3 Currently one of the most highly recommended solutions for heavy e-mountain bikes. For those who frequently carry out repairs on the go, the Feedback Sports Pro Mechanic HD in particular is a near-perfect companion.
