At the same time, it is stingy with travel at the rear: 120 millimetres is the minus record in the test field. The testers felt this on the climbs. The rear doesn't work smoothly. The rear end doesn't soak up rock steps, but passes on the impact. This costs power and grip. At the same time, you have to actively put pressure on the front wheel via the stub stem, otherwise the bike climbs early. Downhill, this extreme geometry offers potential - if you are experienced and very active. You can only get enough pressure on the front wheel for traction in corners if your centre of gravity is consistently forward. The Maxxis tyre has too little tread and slips quickly. The rear is also rather firm on downhill sections, and the low front end gives the rider little confidence on steep gradients. OK for experienced riders, but otherwise not an easy guarantee of fun.
Conclusion: Little travel at the rear and extreme geometry: the Mondraker doesn't make it easy for its rider. A trail bike for experienced riders. The choice of tyres is not ideal.
Reach height 1458 hm
Time / 500 hm 23.6 min.

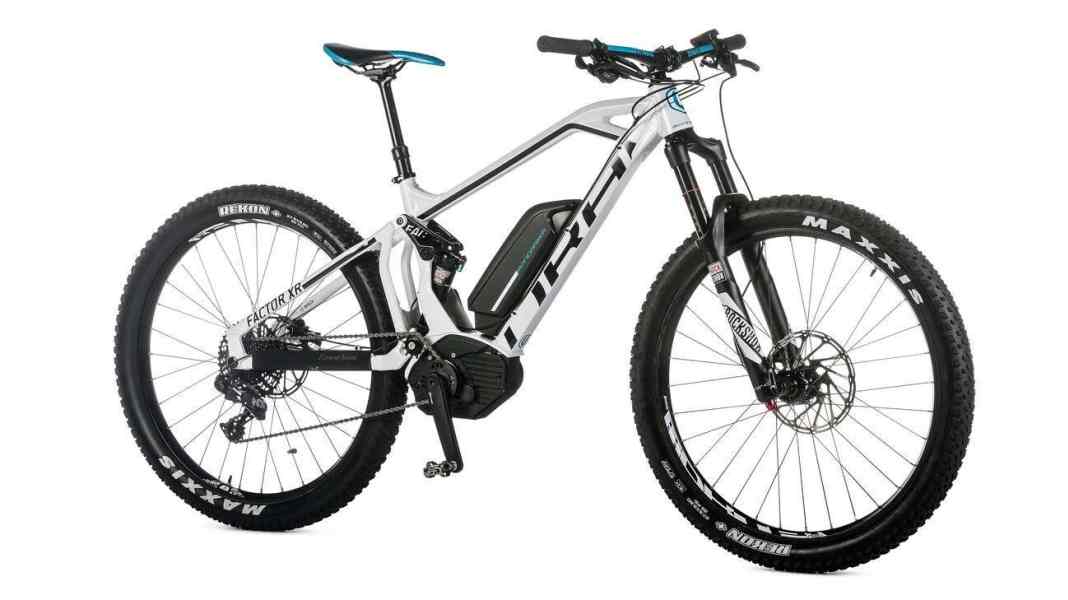

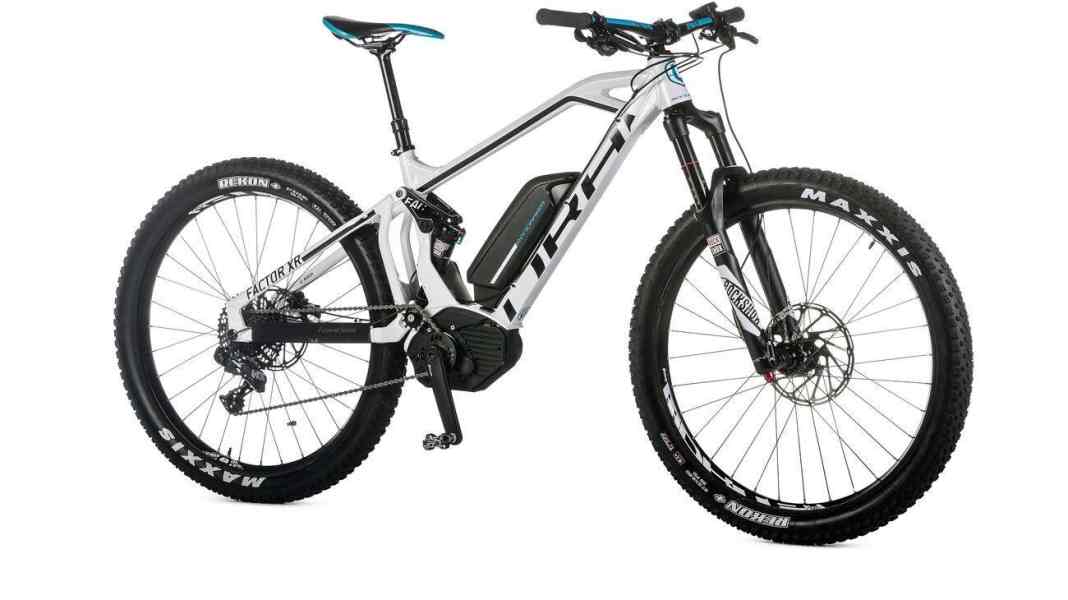

Mondraker eFactor XR+ 27.5+"
Price 4699 Euro
Drive
Engine Bosch Performance CX
Maximum torque 175 Nm
Battery¹ / weight² Bosch Powerpack, 500 Wh / 2590 g
Circuit Sram NX (11-speed)
Translation (v. / h.) 16; 11-42
Display / Size Bosch Intuvia / 31.5 x 31.5 mm
Equipment
Fork / damper Rockshox Revelation RC /Rockshox Monarch RT
Spring travel¹ (f. / h.) 140 / 120 mm
Telescopic support OnOff Pija, 125 mm
Brake / Disc Ø (front / rear) Avid Level T / 200 / 180 mm
Impellers Mondraker MDK-TP1 35 system wheelset
Wheel size 27,5+"
Tyres Maxxis Rekon+ Exo, 27.5 x 2.8 inch
Measured values²
Sizes / frame material S / M / L / XL / Aluminium
Weight 22.56 kg
Centre of gravity height 487 mm
Handlebar width 770 mm
Crank length / Q-factor 170 mm/181
Reach / Stack 471 mm / 586 mm
Manufacturer information
²
Determined on the test benches in the EMTB test laboratory, weight without pedals.
³
The judgement reflects the subjective impression of the testers and the results of the reach measurement and laboratory tests.
The EMTB judgement is independent of price. EMTB judgements: super (from 350 points), very good (from 315 points), good (from 280 points), satisfactory (from 245 points), with weaknesses (from 210 points), below insufficient.
