TOPEAK Nano TorqBar
The slim Topeak Torpedo sits comfortably in the hand and is easy to operate thanks to its large lever. However, you should prick up your ears: The TorqBar indicates the torque achieved extremely precisely, but only with a very quiet click. The supplied box contains five bits. Up to four of them can be stored in the tool's clever handle. This means that it fits into even the smallest bag when travelling.
Price 29,95 Euro
Weight 97 grammes
Execution 4 / 5 / 6 Nm
Tools 3 / 4 / 5 / T20 / T25
Handling 6 out of 6 points
Accuracy
6 out of 6 points
RITCHEY 6-Bit Torque Key
Small, compact and light. The Ritchey tool is really very handy. However, due to the small handle, it is difficult to operate and presses uncomfortably into the fingers and palm. It engages gently at around 5.2 Newton metres and is therefore still sufficiently precise. The six bits are transported on a practical rubber rondel, which is simply attached to the tool.
Price 24,99 Euro
Weight 84 grammes
Execution 4 / 5 Nm
Tools 3 / 4 / 5 / T20 / T25 /Philips #1
Handling
4 out of 6 points
Accuracy
6 out of 6 points
PEDRO'S Fixed Torque Driver
The heavy Pedro's spanner sits comfortably in the hand and has a high-quality finish, as do the three bits supplied. It is easy to operate using the large wings. It indicates the torque achieved with a loud click and is clearly perceptible. In the test, however, the value achieved was 5.9 Newton metres, well above the manufacturer's specification. More suitable for the workshop than for travelling.
Price 44 Euro
Weight 168 grammes
Execution 4 / 5 / 6 Nm
Tools 4 / 5 / T25
Handling
6 out of 6 points
Accuracy
4 out of 6 points

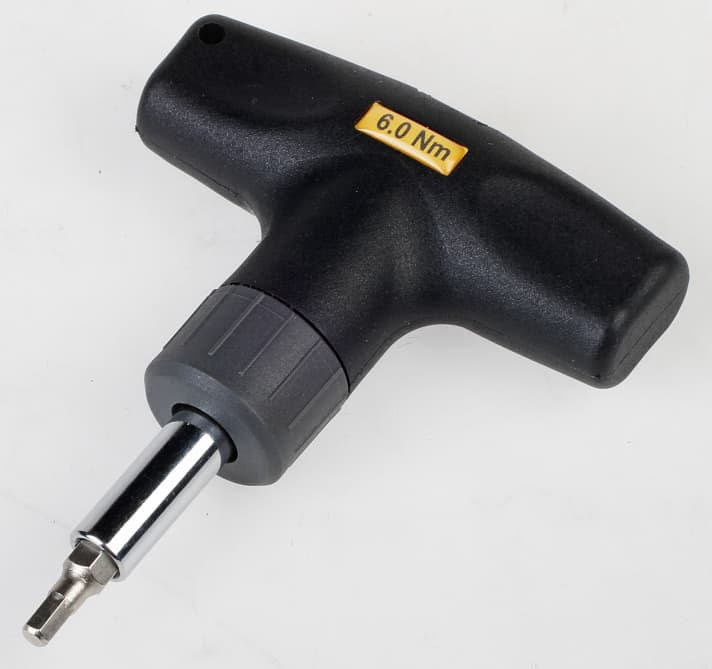

DURANOVA torque spanner
The inexpensive Duranova spanner is available in a comparable design from various manufacturers. Although the plastic handle is not of a particularly high quality, just like the two bits, it fits well in the hand. However, the version with 6 Newton metres triggers far too early in the test, at around 4.3 Nm with a loud cracking noise, and is therefore not really suitable for the precise assembly of carbon parts.
Price 24,95 Euro
Weight 138 grammes
Execution 5 / 6 Nm
Tools Allen key 5 / 6
Handling
5 out of 6 points
Accuracy
2 out of 6 points
BIRZMAN M-Torque Ranger
The M-Torque Ranger contains five bits and two tyre levers. To set the torque, the thumb and index finger must be positioned on two defined points, otherwise the values quickly deviate. This is not exactly comfortable when tightening screws. At around 5.6 Newton metres, the torque achieved is still reasonably acceptable. A practical tool for the saddle or jersey pocket.
Price 27,90 Euro
Weight 113 grammes
Execution 5 Nm
Tools 3 / 4 / 5 / T25 /S2
Handling
3 out of 6 points
Accuracy
4 out of 6 points
You can read this article or the entire BIKE 7/2017 issue in the BIKE app (iTunes and Google Play) or buy the issue in the DK shop reorder:
Stefan Frey
Editor
