MTB mini-pump testCrankbrothers Klic HV CO2 - detailed quick-change artist

Stefan Frey

 · 18.04.2024

With the Klic HV CO2, Crankbrothers sends the only pump with a folding handle into the test - not the only unique selling point
Photo: Stefan Frey

In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant. All relevant referral links are marked with . Learn more.

To pressurise voluminous MTB tyres, you need stamina or a so-called high-volume mini-pump. These powerful pumps are designed to inflate fat tyres particularly quickly. Crankbrothers put the Klic HV to the test and aims to entice technology fetishists with smart detailed solutions, a folding handle and CO2 adapter.
Topics in this article

Crankbrothers Klic HV CO2 mini pump - Features

The features of the Crankbrothers Klic HV are impressive. It has a folding T-handle in which the extension hose is concealed, a CNC-machined pump head and a magnetic coupling that connects the hose to the pump. The attachment point for the hose can be closed using a rasterised rotating ring. There is also a CO2 cartridge attachment in the lower end of the mini pump, which guarantees quick tyre inflation in an emergency.

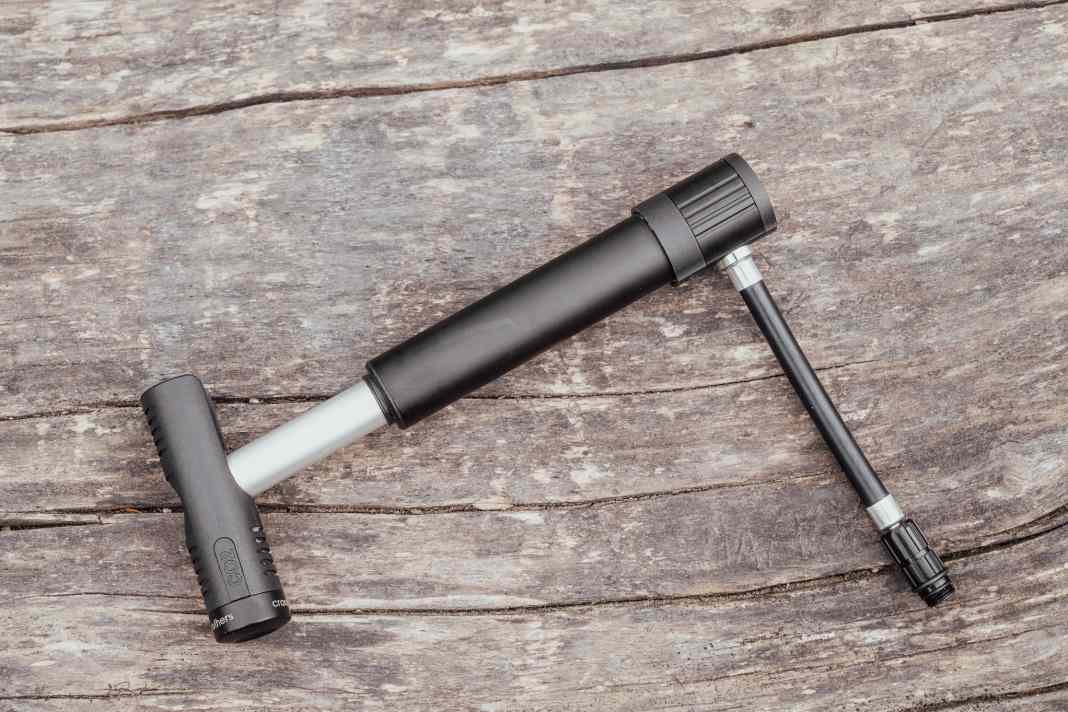

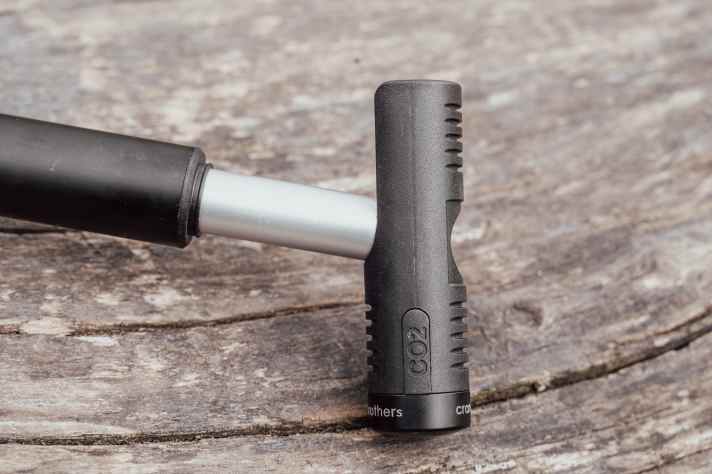

With the Klic HV CO2, Crankbrothers sends the only pump with a folding handle into the test - not the only unique selling pointPhoto: Stefan FreyWith the Klic HV CO2, Crankbrothers sends the only pump with a folding handle into the test - not the only unique selling point

Handling / processing

In an emergency, it turns out that many of the features are more of a gimmick. It takes a while before the mini pump is even ready for use. Fold down the T-handle, remove the hose, open the coupling point, attach the hose and screw it onto the valve. If you also have to change from Presta to Schrader, you are almost finished inflating with other models.

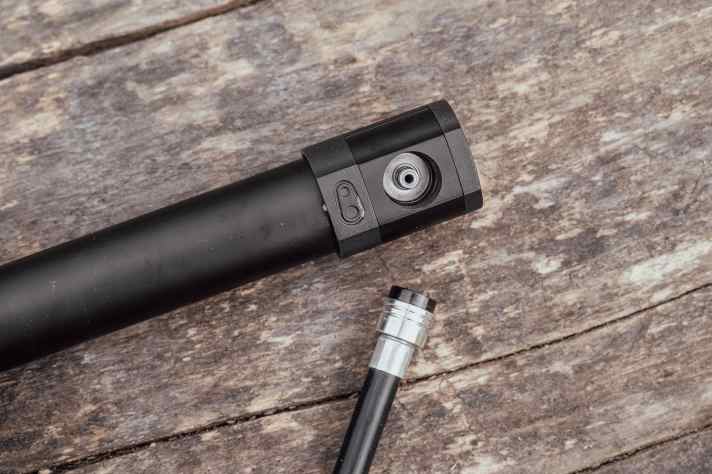

The hose is fixed airtight to the pump via a magnetic couplingPhoto: Stefan FreyThe hose is fixed airtight to the pump via a magnetic coupling

Once the Klic HV is ready to go, it sits comfortably in the hand thanks to the T-handle. Caution: If you don't grip it properly, you can easily pinch your fingers. Otherwise, pumping with the Crankbrothers is quite comfortable and the 90 degree angled hose creates a comfortable pumping position. Annoying: If you transport the Klic HV in the holder on the frame, the hose rattles in the cylinder while riding.

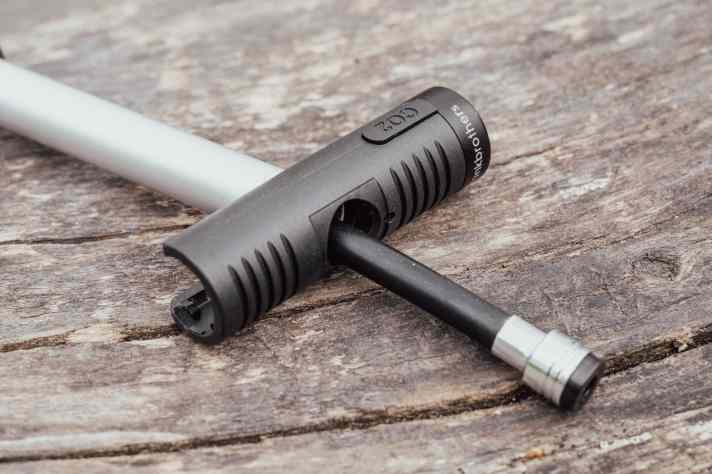

The hose is hidden inside the pump. When mounted on the frame, this can rattle in the housing while ridingPhoto: Stefan FreyThe hose is hidden inside the pump. When mounted on the frame, this can rattle in the housing while riding

Pumping capacity / manual force

Due to its short design and slim cylinder, the volume of the Crankbrothers mini pump is manageable. We needed an average of 183 strokes to press 1 bar into the tyre. At least the hand forces when pumping remain pleasantly low and the T-handle improves handling.

How do you like this article?

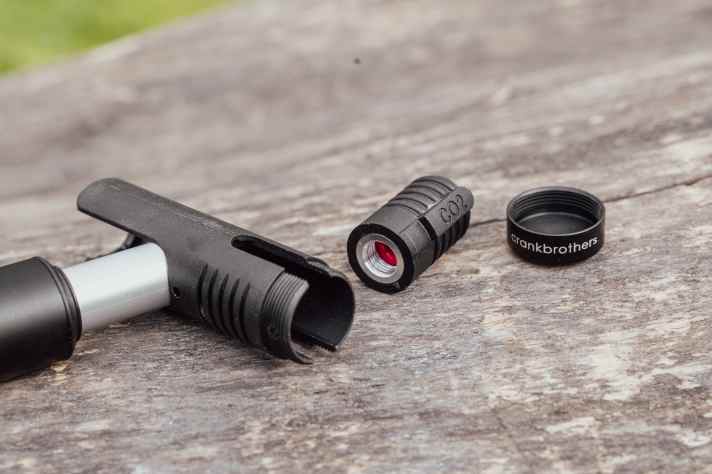

Clever detail: An adapter for CO2 cartridges is also hidden in the folding handle - for when things have to be quickerPhoto: Stefan FreyClever detail: An adapter for CO2 cartridges is also hidden in the folding handle - for when things have to be quicker

Are you looking for a floor pump for the workshop rather than a mini pump for travelling? Read our last detailed test of 10 floor pumps.

Crankbrothers Klic HV CO2 mini pump: Details & Price

  • Price 49,99 Euro >> available here
  • Weight 125 g / 15 g
  • Length / Diameter 223 mm / 25 mm
  • Valve type Presta / Schrader
  • Equipment Folding handle; hose with magnetic coupling; dust cap; CO2 adapter; holder for the frame
  • Pump strokes per bar / pressure max. 183 / 7.6 bar

Conclusion & evaluation

With all its gimmicks - rotating dust cover, folding handle, magnetic coupling, CO2 attachment - the Klic HV is a nice toy for technology fans. However, other pumps are better suited to the "real thing". You need little effort, but a lot of strokes to pressurise the tyre. The folding handle is a bit angular, and you can easily pinch your knuckles when pumping if you don't grip it precisely.

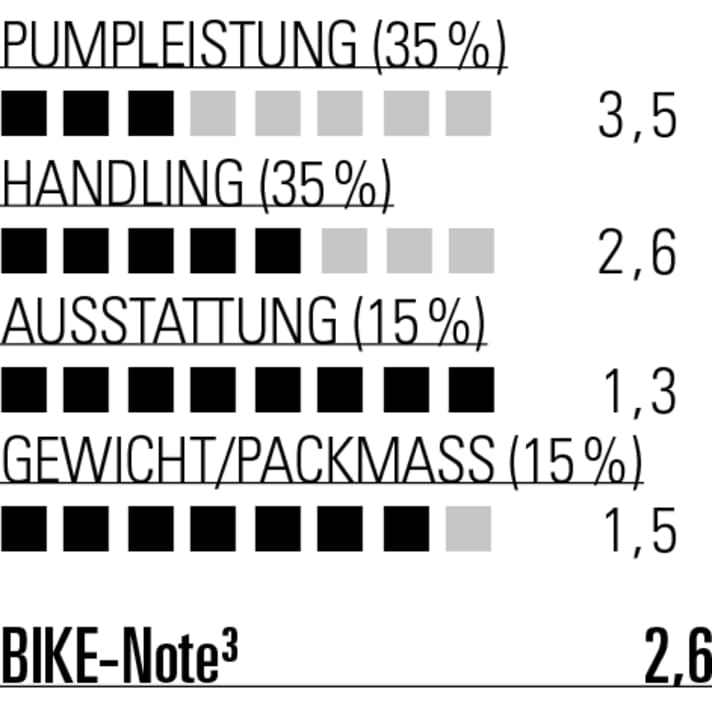

Top in terms of equipment, but only in the last third in terms of pump performancePhoto: Stefan FreyTop in terms of equipment, but only in the last third in terms of pump performance

Click here to go back to our overview article: 11 mini pumps in the test. There you will find all the important information on the subject as well as the remaining 10 models in the test field.

* Note: Weight, size and pump strokes per bar are BIKE measurements. We measured the pump strokes per bar with a precision manometer on the volume corresponding to a 29x2.35 inch tyre. The maximum pressure is a manufacturer's specification.
