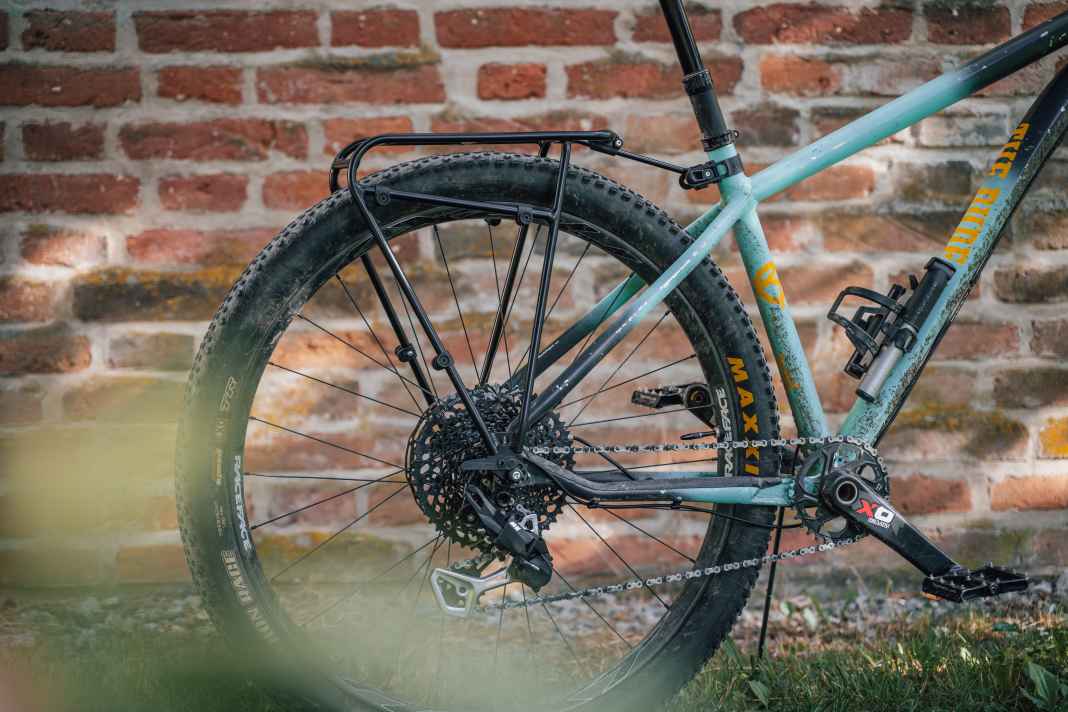

Made to last – now that’s a motto. At a time when products often have the same shelf life as a bag of gummy bears on an editor’s desk, the German manufacturer Ortlieb upholds classic virtues: high-quality craftsmanship and well-thought-out details. This also applies to the Quick Rack L modular luggage rack. The concept: a removable rear luggage rack, which can be fitted and removed in a matter of seconds and is compatible with the brand’s own bag systems. Thanks to a range of axle adaptors, the carrier is compatible with almost all modern rear triangles.
Fitting to the bike
However, when you first fit it, it becomes clear that the Quick-Rack isn’t quite as ‘quick’ as its name suggests. First of all, the system needs to be pre-assembled and adapted to the bike in question. This process is somewhat complex, and the instructions can be a bit confusing at times. In particular, it isn’t immediately clear how to position the axle mount correctly.
Once you’ve overcome this hurdle, the situation changes completely: the system’s real strength lies in how quickly it can be fitted and removed in everyday use. The carrier locks securely into place via sturdy quick-release levers on the thru-axle. The upper attachment to the seatpost is secured by a strap with a clamping mechanism. This works reliably, but is slightly less elegant to use than the axle attachment. One minor criticism: a rubberised contact surface would have been better for protecting the frame. Overall, once properly set up, handling is exceptionally quick and practical.
Impressions from the practice
In use, the Quick-Rack L proves itself to be a classic luggage rack with modern features. Particularly practical are the two loading levels:
- Panniers can be attached to the sides in the traditional way
- About the integrated QL3.1 mounting points (Studs) make it particularly easy to attach compatible bags without any rattling
It works brilliantly in everyday use and makes it a particularly attractive option for commuters and touring cyclists.
The upper loading area, on the other hand, is less impressive. It lacks a dedicated loading tray, of the sort found on bike-packing-specific racks. Although pack bags can be secured with straps, they do not sit quite as securely.
It becomes clear whilst riding that the Ortlieb rack is well-made, but doesn’t quite match the stability of heavy-duty systems such as Old Man Mountain. In particular, the connection to the seat post introduces a slight amount of flex into the system. Tyre clearance is also decent, but not outstanding. Ortlieb specifies up to 3 inches, but in practice, things can get a bit tight with wide tyres and limited space in the rear triangle.
Key facts at a glance
- Quick-release rear luggage rack
- Compatible with common thru-axle standards
- Fitting via a thru-axle and seatpost clamp
- Can be fitted and removed in a matter of seconds after the initial installation
- Two luggage compartments
- QL3.1 mounts for Ortlieb bags
- High-quality workmanship
- Accessories such as light adaptors and longer struts are available
Technical specifications
- Weight (ready to ride / rack only): 765 grams / 682 grams
- Maximum payload: 20 kilos
- Max. tyre width: 29 x 3.0 inches
- Suitable for hardtail / full-suspension bikes: yes / no
- Installation options: Threaded eyelets / seat stays / thru-axle (optional)
- Special features: Quick-release fastener for axle and seatpost mounting; two mounting levels; rear light mounting point; mounting clamps for the Ortlieb QL3 system; mudguard optional
- Price: 115 euros / 35 euros (M6 thru-axle connector)
Ortlieb Quick-Rack L – Review & Verdict
| Grade | |
| Assembly (10%) | 2.3 |
| Handling / Loading (30%) | 2.0 |
| Handling / Stability (30%) | 2.8 |
| Versatility (20%) | 1.7 |
| Weight (10%) | 2.0 |
| BIKE-NOTE | 2.2 |
The Ortlieb Quick-Rack L is a well-designed system that’s extremely practical for everyday use, and really comes into its own in daily use thanks to its lightning-fast assembly. For anyone who regularly wants to switch between riding ‘with’ and ‘without’ a luggage rack, this is one of the best solutions on the market.
The downside: the time-consuming initial assembly and minor shortcomings in terms of stability and loading options prevent it from achieving the very top rating. For classic bikepacking or maximum off-road load capacity, there are more robust and better-supported alternatives. All in all, the Quick-Rack L is ideal for commuters and touring cyclists who prioritise flexibility and comfort over maximum load capacity.
Advantages and disadvantages
Advantages:
- Extremely quick assembly and disassembly in everyday use
- High-quality workmanship
- Compatible with many shaft standards
- Two practical loading levels
- Ideally suited to classic panniers
- Clever quick-release system
Disadvantages:
- Complex initial installation
- The instructions are a bit unclear
- Slight flex whilst riding
- No optimised loading area for rucksacks
- The seatpost clamp isn’t quite the ideal solution
- Ground clearance is only average
Comparison with the competition: Ortlieb Quick-Rack L
In a head-to-head comparison with the Restrap Switch Rack, Old Man Mountain Elkhorn, Topeak Zi:RAK Essential and Aeroe Spider Rack, the Ortlieb Quick-Rack L clearly stands out as an all-round and commuter solution with a focus on comfort, everyday practicality and ease of use – rather than as an uncompromising off-road system.
