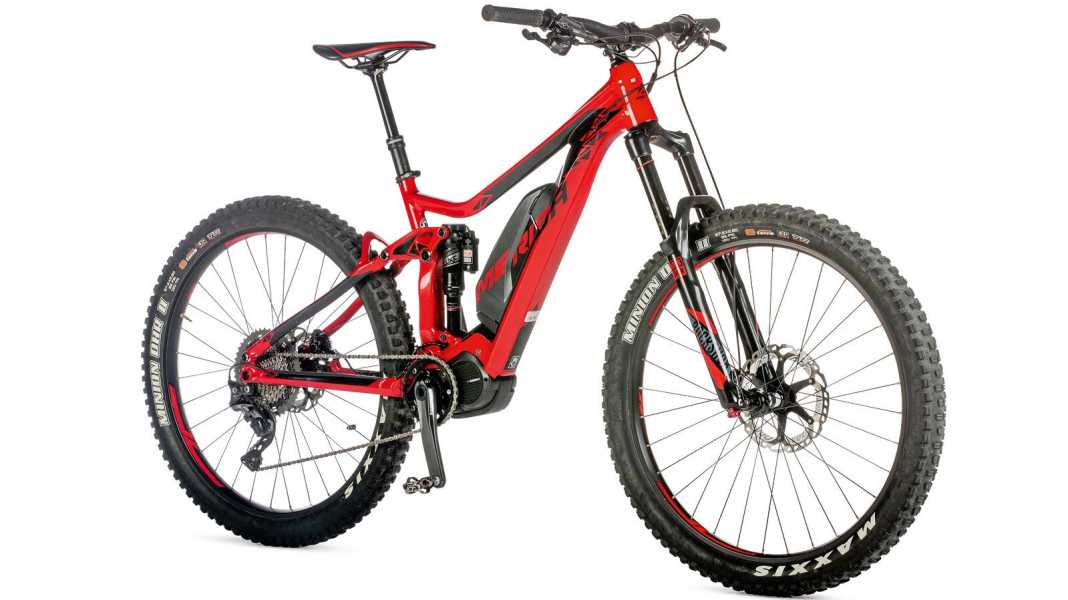

The eOne-Sixty has everything an enduro e-MTB needs. The frame, chassis and add-on parts not only look as if they have been cast from the same mould. Short chainstays ensure agility when cornering, while the powerful Rockshox suspension provides composure even at high speeds. The wide handlebars and short stubby stem ensure control, and the tyres bite into both dry and wet terrain. Although downhill is clearly the Merida's hobbyhorse, it also climbs steeper ramps surprisingly well. The rearing front wheel can be controlled with physical effort.
Conclusion: Top chassis, good drive and powerful components - a top enduro bike.
Price 4999 Euro
Info www.merida-bikes.com
Reach height 1158 hm
Efficiency class A+
Drive
Motor / Position 250 watt Shimano Steps E8000 / centre
Maximum torque 75 Nm
Battery Lithium Ion, 504 Wh
Gearstick / transmission Front: 1x34, rear 11-speed Shimano XT / 11-46
Display / Size Shimano SC E8000 / 1.6 inch
Software / status k. A.
Equipment
Sizes / frame material S / M / L / Aluminium
Fork / damper Rockshox Lyrik Solo Air RC Rockshox Super Deluxe R
Telescopic support Merida Expert Dropper 120 millimetres
Brake / Disc Ø (front / rear) Shimano XT / 203 mm / 180 mm
Wheels / wheel size DT Swiss 350 QR 15x110 hubs; Merida Expert rims, 27.5 inch
Tyres Maxxis Minion DHR 23C Maxx Terra Exo 2.8
Measured values
Suspension travel¹ (front/rear) 160 mm / 160 mm
Weight² / distribution 21.9 kg / 49:51 % (v:h)
Centre of gravity height 515 mm
Handlebar width 780 mm
Reach / Stack 438 mm / 625 mm
Crank length 170 mm
EMTB JUDGEMENT³ SUPER
¹Manufacturer's specification, ²EMTB measured values, ³EMTB judgements: super (from 350 points), very good (from 315 points), good (from 280 points), satisfactory (from 245 points), with weaknesses (from 210 points), below inadequate.
The judgement reflects the subjective impression of the testers and the results of the reach measurement and laboratory tests. It is independent of price.
