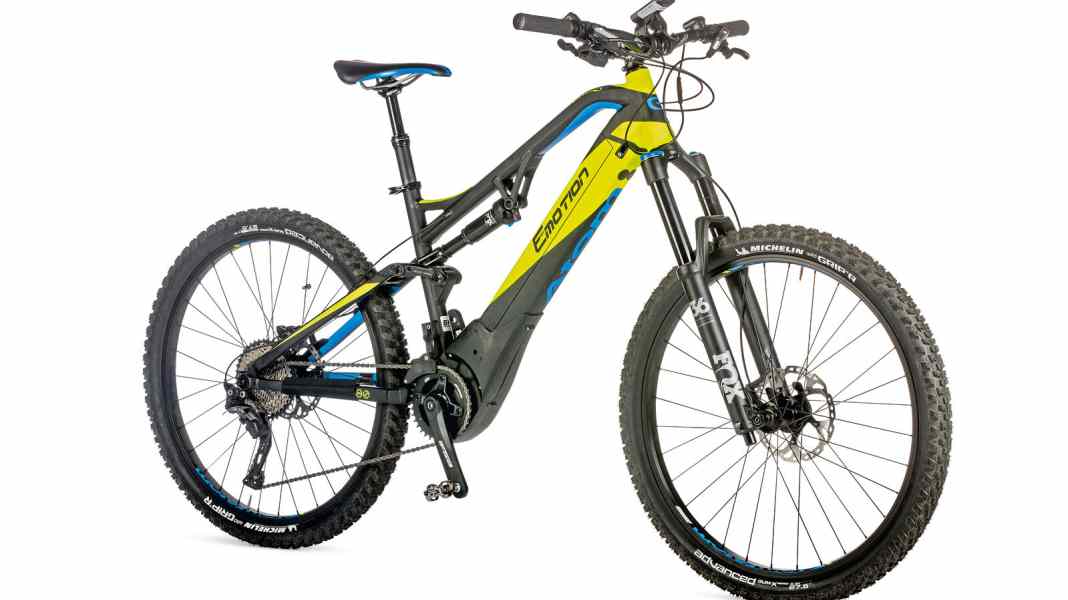

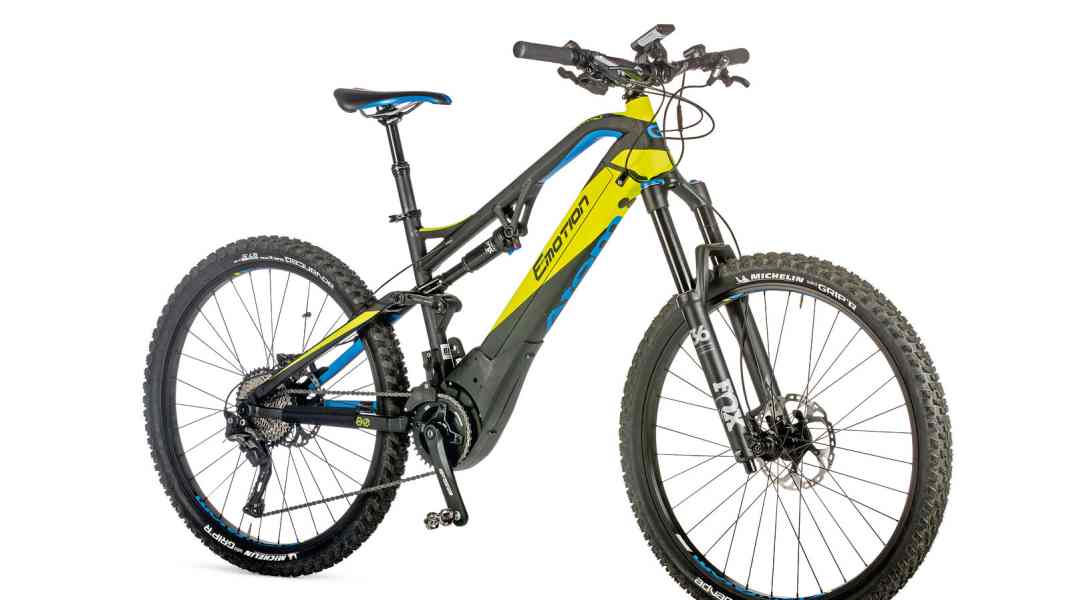

The system offers enormous reserves, as proven by the EMTB high-altitude test bench. It only stops after 2000 metres in altitude - predestined for tourers. In general, the Atom Lynx seems to be designed more for this clientele than for mountain-orientated enduro riders. You sit high on your horse, on rather than in the bike, the suspension is quite firm and the geometry offers smoothness rather than manoeuvrability. Downhill, both the tyres and handlebars are a tad too narrow. The Brose motor delivers its power well, but the drive ratio is too long.
ConclusionClassic touring bike with beautiful integration and decent performance. Less suitable as an enduro bike for downhill blasting.
Price 4768 Euro
Info www.bhbikes.com
Reach height 1931 hm
Efficiency class A+
Drive
Engine 250 watt Brose | mid-motor
Maximum torque 90 Nm
Battery Lithium Ion, 600 Wh
Gearstick / transmission Front 1x36 / rear 11-speed Shimano SLX / 11-42
Display / Size BH Emotion / 72 mm
Software / status Custom, BH / n/a A.
Equipment
Sizes / frame material M / L / Aluminium
Fork / damper Fox 36 Float Performance / Fox Float DPS
Telescopic support Kind Shock LEV 125 millimetres
Brake / Disc Ø (front / rear) Shimano SLX / 180 / 180 mm
Wheels / wheel size Joy Tech hubs; BH Atom rims / 27.5 inch
Tyres Michelin Wildgripper Advanced Gum-X 2.35 inch
Measured values
Suspension travel¹ (front/rear) 160 mm / 160 mm
Weight² / distribution 24.2 kg / 49:51 % (v:h)
Centre of gravity height 530 mm
Handlebar width 740 mm
Reach / Stack 426 mm / 647 mm
Crank length 170 mm
EMTB JUDGEMENT³ GOOD
¹Manufacturer's specification, ²EMTB measured values, ³EMTB judgements: super (from 350 points), very good (from 315 points), good (from 280 points), satisfactory (from 245 points), with weaknesses (from 210 points), below inadequate.
The judgement reflects the subjective impression of the testers and the results of the reach measurement and laboratory tests. It is independent of price.
