Alutech Fanes 5.0 V.3C in test

Dimitri Lehner

 · 09.11.2016

Alutech Fanes 5.0 V.3C in testPhoto: Wolfgang Watzke

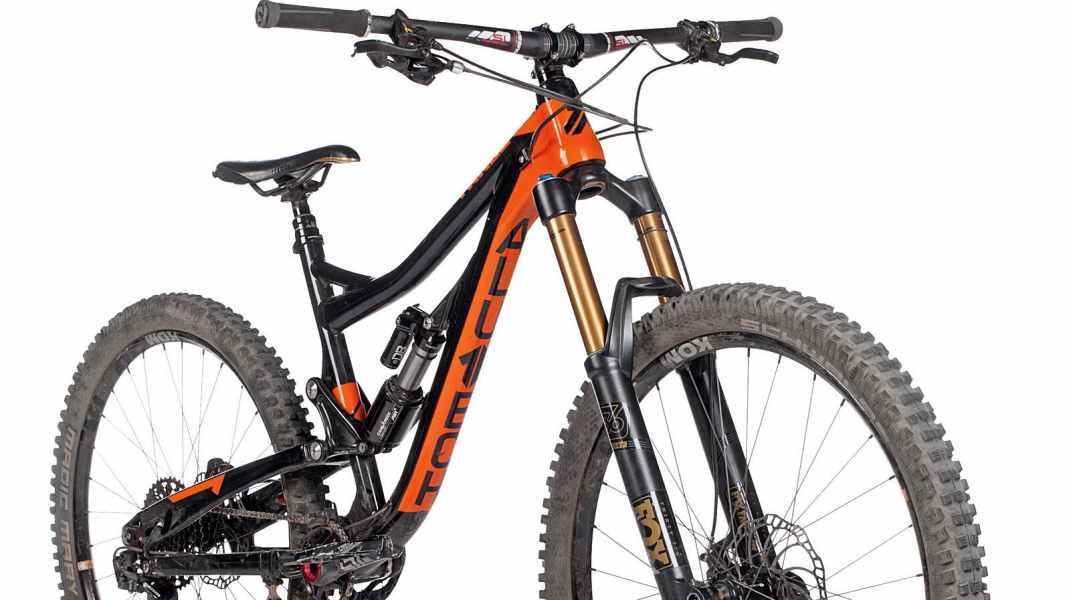

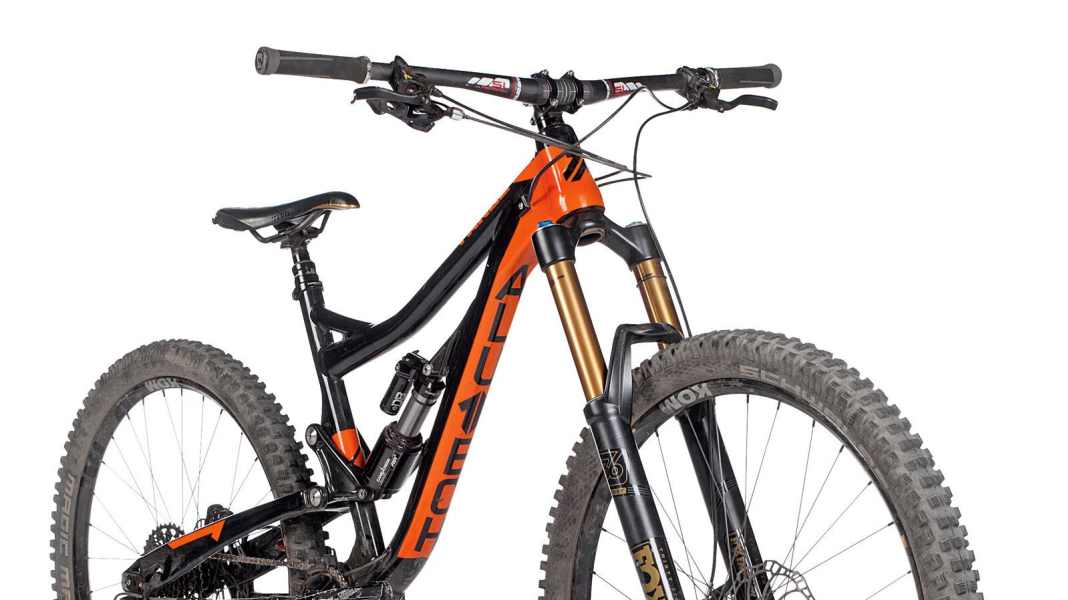

Alutech Fanes 5.0 V.3C in test
Cries of joy from testers' throats are rare in such a high-calibre test field. However, the Alutech made us cheer with euphoria - all of us.
  Alutech Fanes 5.0 V.3C: Colour, decor, equipment - Alutech fulfils individual customer wishes. So you can trim the Fanes exactly how you like it - very good!Photo: Wolfgang Watzke Alutech Fanes 5.0 V.3C: Colour, decor, equipment - Alutech fulfils individual customer wishes. So you can trim the Fanes exactly how you like it - very good!

"That's definitely a 10!" we quickly summarised after the descent. Wow! The bike with the most travel was so plush on the trail that you automatically took your fingers off the brakes and wanted to accelerate to V-max. No other suspension was as convincing downhill as that of the Fanes. We rode it in the shortest setting. The chainstays can be lengthened for a smoother ride. Unnecessary really, because this way the playfulness is retained. Not only can the Fanes handle a lot of speed, it also controls very directly and precisely. That's inspiring! The Alutech with its low top tube for plenty of legroom really tempted us to rock the bike from one turn to the next, to let the rear end swing into a Scandinavian flick or to pull it under our shoulders for a tabletop. A twitch of the wrists is all it takes for it to snap onto the rear wheel and chase down the trail in manual mode. Yeah - freeride! And that brings us to the few critical comments: If you are looking for a competition enduro bike that is strictly geared towards propulsion, the Alutech is not the ideal partner. There are more thoroughbred racers. Despite the steep seat angle, you feel like you're pedalling from behind. Nevertheless, the bike accelerates nimbly and handles climbs comfortably - but uphill is not its favourite discipline. The double-barrel shock can be calmed down a little using the lever - but the additional pressure stage is not very effective. We were really happy with the powerful MT-7 brakes from Magura, but dissatisfied with the DeanEasy tubeless system. It lost air and we swapped the tyres for our standard Maxxis tyres.


ConclusionDownhill, the Alutech was our first choice. The mixture of smoothness and playfulness works perfectly on this bike from northern Germany. From trail to park - the Fanes is always a guarantee of fun!


STRENGTHS Chassis, playful, all-rounder
WEAKNESSES none


Manufacturer information
Distribution Alutech, www.alutech-cycles.com
Material/sizes Aluminium/XS, S, M, LXL
Price/weight without pedals 3999 Euro/13.7 kg


Measurement data
Front/rear suspension travel 180 mm/170 mm
Rear suspension system Four-bar linkage


Equipment
Fork/damper Fox 36 Float 180 RC2 Fit4 Kashima/CaneCreek Double Barrel Air CS
Cranks/gears E13 TRS R/SRAM XO1
Brake system Magura MT-7
Impellers Acros 75 hub/WTB KOM i23 rim, tyreWTB Vigilante TCS FRL 2.3

How do you like this article?


Performance
Uphill 4 out of 6 points
Downhill 6 out of 6 points


FREERIDE judgement 10 out of 10 points

  The set-up recommendations from CaneCreek give the Fanes a very soft rear end. We rode a little firmer (20% sag, HSC: 2, LSC 13, LSR: 2, LSR: 15) and were happy with it.Photo: Daniel Simon The set-up recommendations from CaneCreek give the Fanes a very soft rear end. We rode a little firmer (20% sag, HSC: 2, LSC 13, LSR: 2, LSR: 15) and were happy with it.  Plenty of travel: Alutech is the only manufacturer to equip its test bike with a 180 mm fork. This makes it suitable for freeriding. However, a 160 mm fork is also available on request.Photo: Daniel Simon Plenty of travel: Alutech is the only manufacturer to equip its test bike with a 180 mm fork. This makes it suitable for freeriding. However, a 160 mm fork is also available on request.  Alutech Fanes 5.0 V.3CPhoto: FREERIDE Magazin Alutech Fanes 5.0 V.3C


FREERIDE RANKING: The number (maximum 10 points) reflects the overall impression of the testers and is not an addition of downhill and uphill points. 10 = Test winner, it couldn't be better. 9 = Very good. Recommended purchase. 8 = Solid performance. 7 = Below average. The product has weaknesses. 1 to 6 = We can only warn against this!

  You can find this article in FREERIDE 1/2016 - you can order the magazine here > FREERIDE IOS App (iPad) FREERIDE Android AppPhoto: Stéphane Candé You can find this article in FREERIDE 1/2016 - you can order the magazine here > FREERIDE IOS App (iPad) FREERIDE Android App

Dimitri Lehner is a qualified sports scientist. He studied at the German Sport University Cologne. He is fascinated by almost every discipline of fun sports - besides biking, his favourites are windsurfing, skiing and skydiving. His latest passion: the gravel bike. He recently rode it from Munich to the Baltic Sea - and found it marvellous. And exhausting. Wonderfully exhausting!
