Canyon Lux World Cup CF Young Hero test: Professional technology for children's mountain bikes
Jan Timmermann
· 20.12.2025

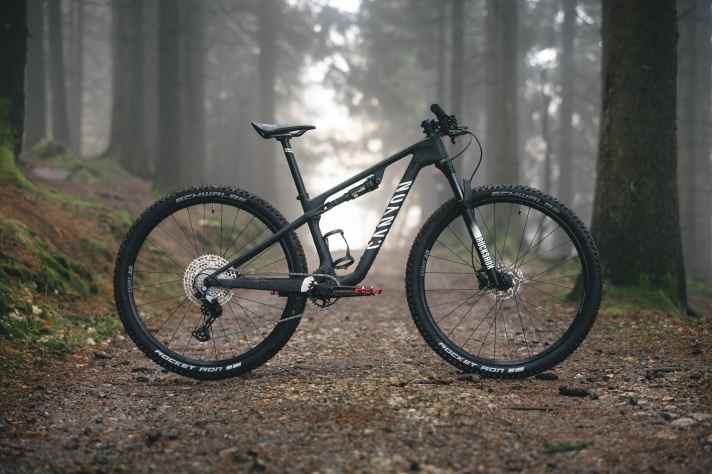

This children's mountain bike from Canyon breaks with established norms. For many years, families have been reading in buying guides: "Good children's bikes are not just small adult bikes!" Specialised children's models should be adapted to the specific needs of the youngsters. Nevertheless, at first glance, the Canyon Lux World Cup CF Young Hero looks like a shrunken version of the same rocket on which cross-country greats such as Luca Schwarzbauer accelerate on the big stage.

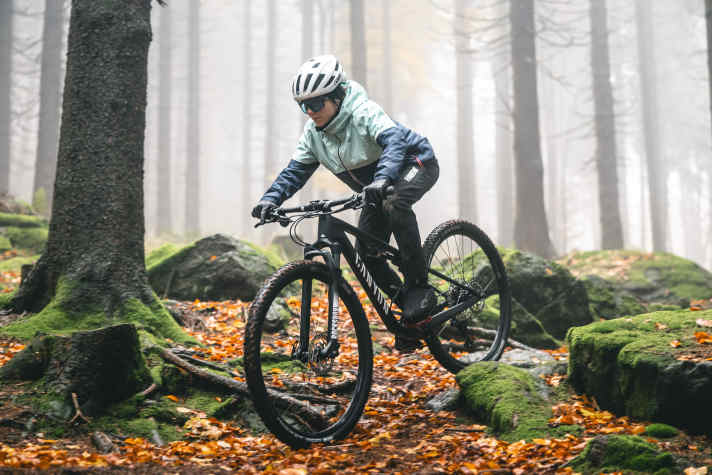

In fact, the full carbon frame of the Canyon Lux World Cup CF Young Hero is exactly the same as the adult models. These are also available in size XS and therefore fit children and teenagers under 166 centimetres tall. Ultimately, small racers could therefore ride all Lux World Cup models from the CF or even the even lighter CFR family. However, only the Young Hero equipment variant is advertised as a special kids' bike. Simple entry-level parts are then attached to the World Cup frame. Does this mean that Canyon's kids' full-susser only has a smaller price tag and is therefore simply better suited to the needs of parents? We got to the bottom of this critical question during the test at the BIKE Youth Camp in Sankt Englmar.
Other children's bikes in the comparison test
Canyon Lux World Cup CF Young Hero in detail
- Area of application: Cross Country / Marathon
- Suspension travel: 100/100 mm
- Wheel size: 29"
- Recommended height: 158-166 cm
- Frame material: Carbon
- Weight: 13.0 kg
- Price: 2499 Euro
Equipment
- Suspension fork: Rockshox Recon RL
- Shock absorber: Rockshox SIDLuxe Select+
- Gear system: Shimano Deore, 1 x 12
- Gear ratio: 30 / 10-51 t. (510 %)
- Brakes: Shimano MT200, 160 / 160 mm
- Seatpost: Race Face Ride aluminium, rigid
- Wheels: DT Swiss LN XC
- Tyres: Schwalbe Rocket Ron Addix Performance, 29 x 2.25
How Canyon's youth fully rides on the XC course

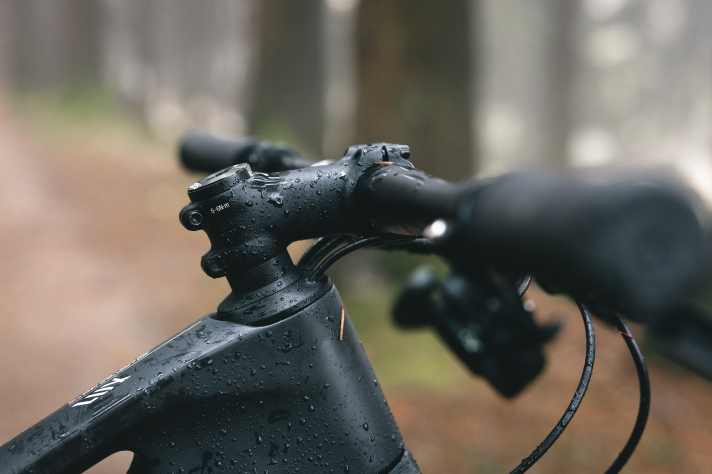

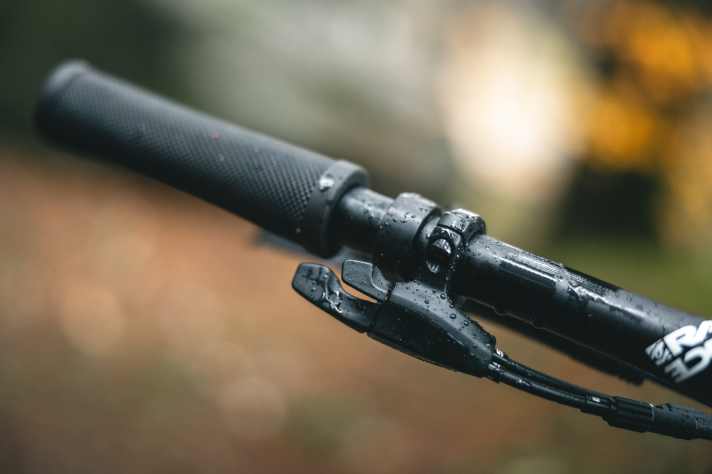

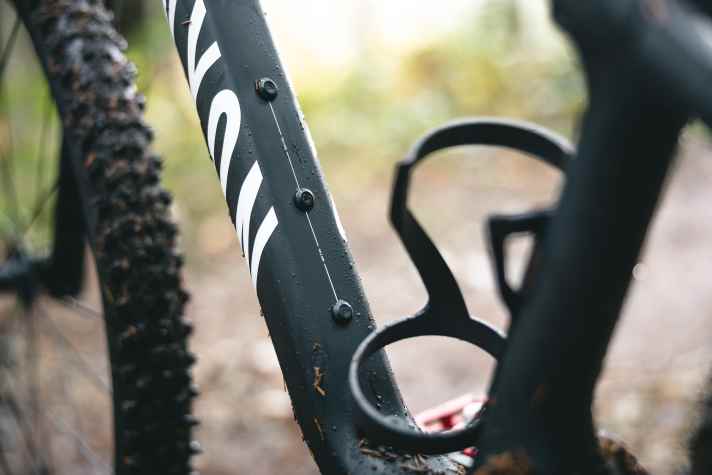

The high-quality carbon frame of the Canyon Lux World Cup CF Young Hero immediately appealed to our young testers with its clear lines. But it's not just the look that is reminiscent of the bikes of their sporty role models. Canyon has also adopted all the race standards for the junior bike. These include cables routed through the headset, a handlebar remote that allows the shock and suspension fork to be tightened simultaneously during sprints, a minimalist chain guide and two bottle cages. A negatively angled stem also exudes a racing character and puts the youngster in a sporty riding position. Despite their competitive attitude, our young test riders had mixed feelings on the climbs.

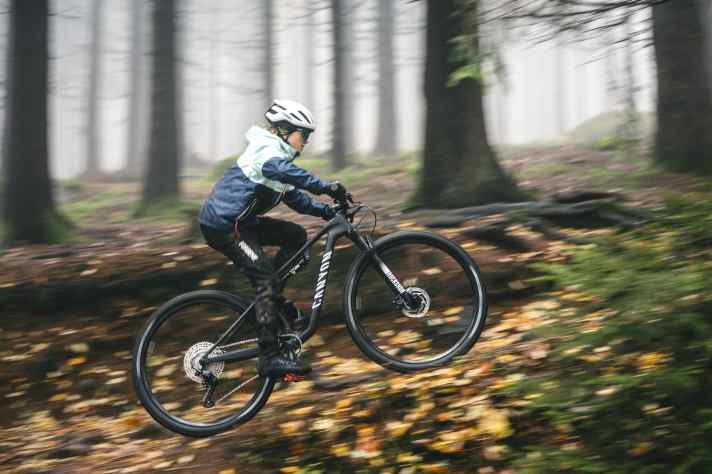

"I think it's good uphill, but somehow I need a bit more power than on my own bike," says Norah (163 cm, 12 years). Although the kids can crank up any climb thanks to the small 30 mm chainring and wide gear range, when the Canyon children's bike hangs on the scales, it becomes clear why our young cross-country racers are not exactly eager to burst into a storm of enthusiasm. Ready to ride, the bike weighs over 13 kilos despite its slim carbon fibre chassis. Not too bad a figure for a fully costing around 2500 euros - on the contrary! In youth racing, however, the target group is largely on hardtails with an eight or even seven before the kilo decimal point and this difference naturally weighs heavily on children.
What's more, Canyon has saved money on the Schwalbe tyres and has only given the children's Lux the cheap Performance version. An upgrade to the Evo version would increase traction and reduce rolling resistance. A tubeless set-up would also save rotating mass. Compared to the 29-inch VPace Matz29L youth hardtail, the low-cost wheels of the Canyon are almost 600 grams heavier. The Canyon product managers' thriftiness is also evident in the details. The favourable Shimano brakes and the Deore shifter require a lot of manual force - not exactly ideal for kids. On the other hand, the suspension lockout can be used sensibly after some familiarisation and the thin grips are comfortable to hold.

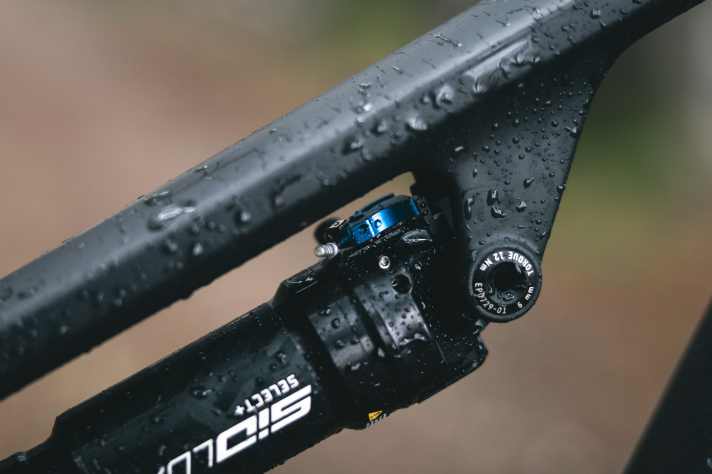

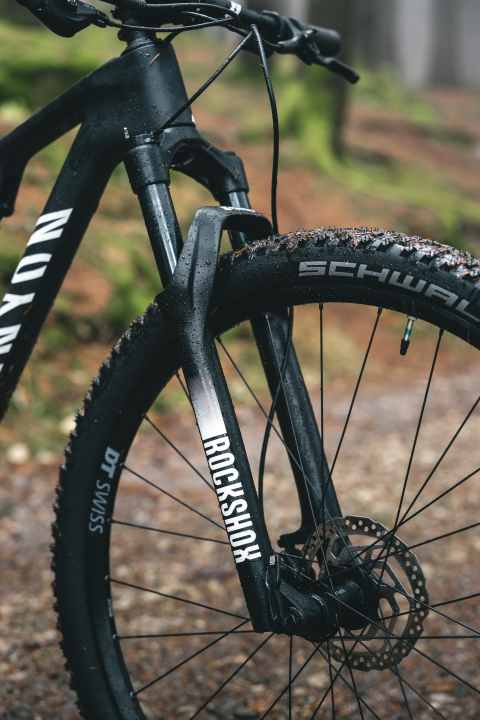

The performance of the suspension elements on the Canyon Lux World Cup CF Young Hero was pleasing. At the rear is a Rockshox SIDLuxe with high-quality Select+ damping, which is also suitable for lighter riders. Even the affordable Reba RL fork does a reasonable job, is sensitive on the trail and makes good use of its 100 millimetre crumple zone. Unfortunately, our test model squeaked cheerfully when compressing. Also annoying: The adjuster for the rebound of the shock can only be reached with a shortened special Allen key or by removing the shock.

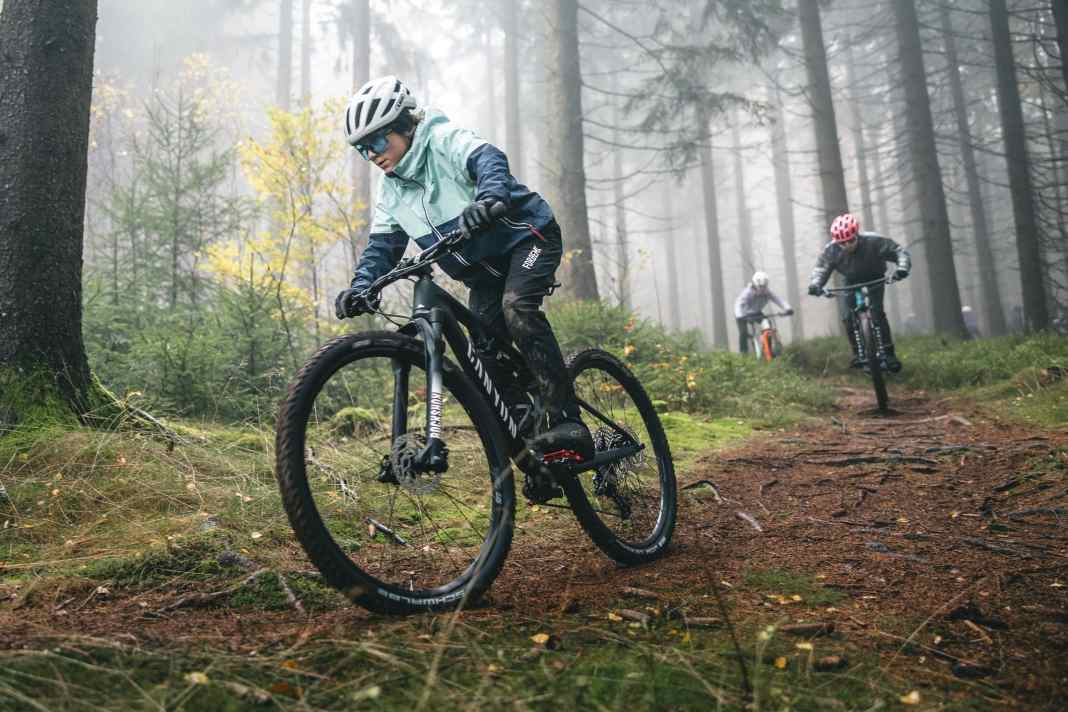

The young testers had words of praise for the handling of the junior race bike: "I already have the feeling that I can handle it very well," was the feedback from Carolin, who at the age of eleven is already experienced in racing, but at 155 centimetres tall is actually still a little too small for the manufacturer's recommendation. Although the children's fully is based on the chassis of the adult bike, Canyon has actually managed to integrate small riders well between the 29er wheels. Short chainstays and a compact reach help them with cornering and actively pushing off over obstacles.

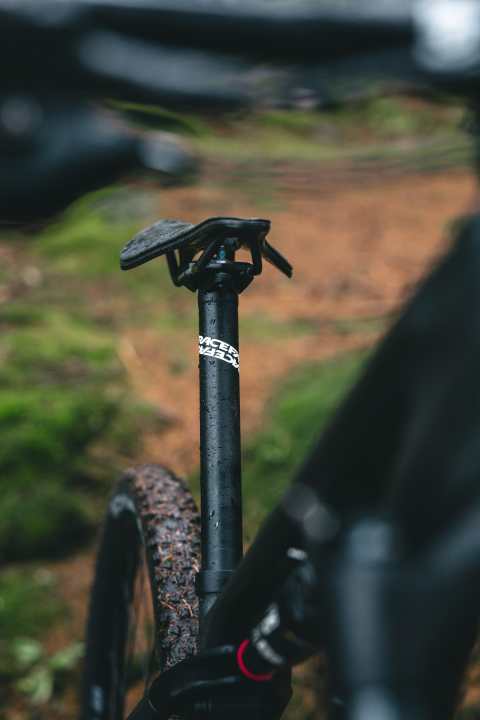

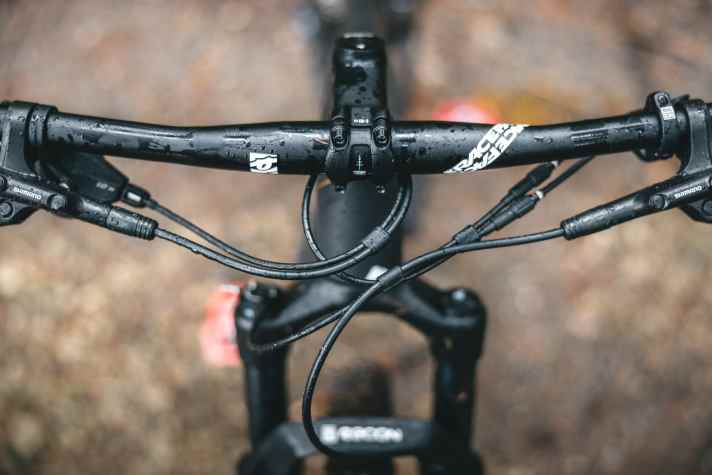

Thanks to the large wheels and the reliable suspension, kids on board the Canyon Lux World Cup CF Young Hero roll through the terrain with safety reserves. Only the slippery economy tyres once again set the grip limits. Although the concept with the rigid seat post wastes the potential of the short seat tube, young racers with good riding technique don't have to shy away from steep descents. A modern steering angle of 68 degrees and a well-timed overall length provide composure when shooting. Unfortunately, when things get bumpy, the chain hits the frame guard and the many cables rattle around.
Geometry
- Reach: 401 mm
- Stack: 583 mm
- Top tube length: 563 mm
- Chainstay length: 429 mm
- Wheelbase: 1097 mm
- Bottom bracket height: 330 mm
- BB drop: -39 mm
- Seat tube length: 375 mm
- Protrusion height: 770 mm
- Steering angle: 68°
- Seat angle: 74.5°
- Head tube length: 90 mm
- Stem length: 80 mm
- Handlebar width: 700 mm
Data from the BIKE test lab
At BIKE, we go to unprecedented lengths to test bikes. We are the only trade magazine in the world to operate its own test laboratory. The data obtained supports our impressions from the practical test. When it comes to geometry data, we don't just rely on the manufacturer's specifications, but also use the laser measuring device ourselves.
- Complete weight: 12.96 kg (without pedals)
- Wheel weight: 4468 g (incl. tyres, tubes, cassette, brake discs)
- Impeller inertia: 3033 kg x cm² (the lower the value, the better the acceleration)
Conclusion
I like the bike. But I would like to swap a few parts to make it lighter. - Norah, BIKE young tester
The frame of Canyon's children's full-suspension bike offers everything young racers could wish for. The handling and suspension of the Lux Worl Cup are obviously not only great for adults. Unfortunately, the equipment lags behind. To do justice to this base and reduce the weight, families need to tune: tyres, brakes, seat post - the chassis would be worth it! - Jan Timmermann, BIKE editor
Pro
- sporty seating position that is also suitable for children
- Solid chassis despite favourable fork
- High-quality carbon frame with beautiful details
- Wide range of gear ratios
Contra
- Rigid seatpost does not fulfil its potential
- Inferior tyre choice
- heavy complete bike and wheel weight
