SQlab 614 Ergowave Active 2.1 - Overview
- Range of use: Gravel / XC, Marathon
- Saddle frame: Aluminium
- Active technology for back relief, incl. 3 elastomer hardnesses
- Widths: 12, 13, 14, 15, 16 (cm)
- Weight: 235 grams (14 mm width)
- Price: 159,95 Euro

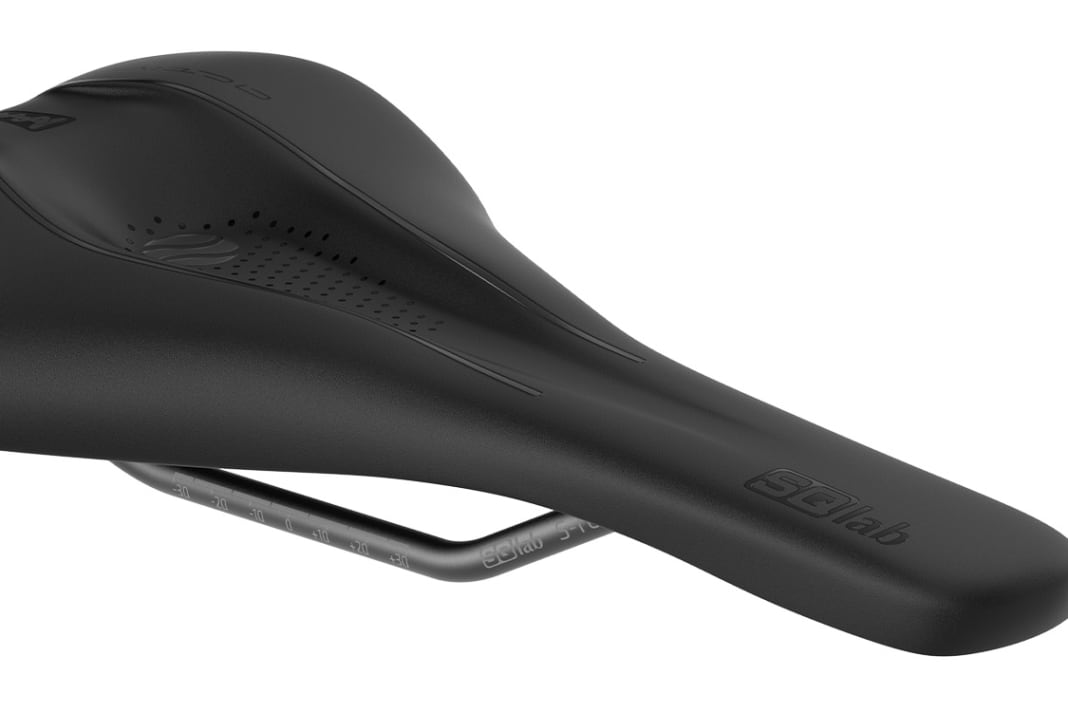

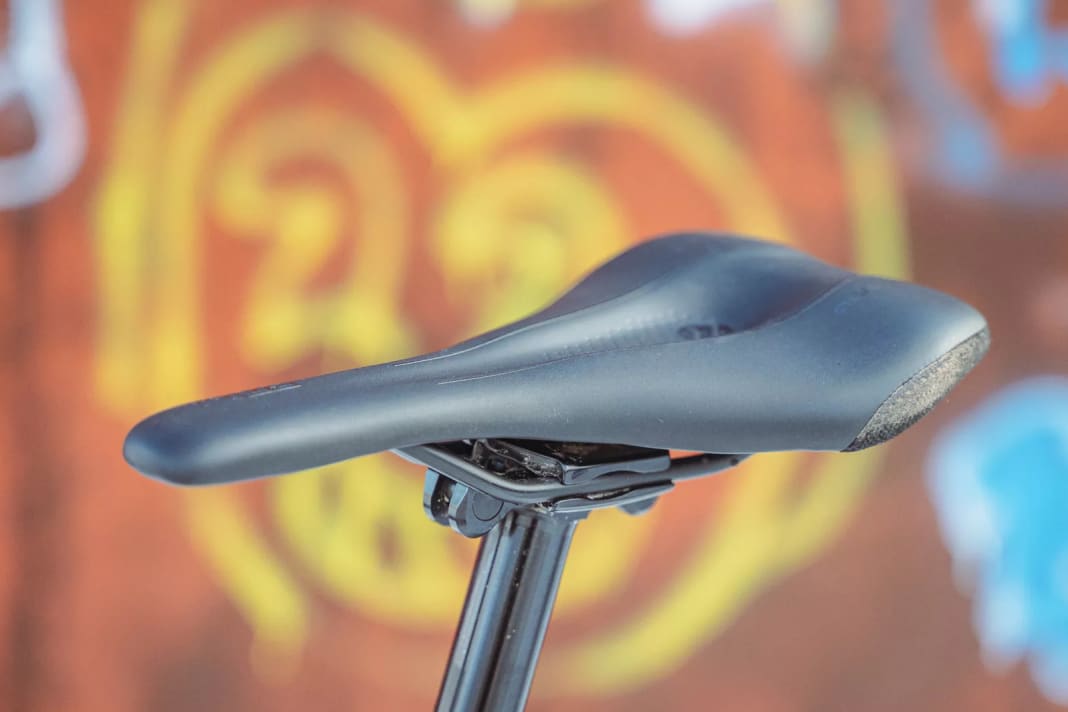

SQlab 614 - new saddle for Gravel and XC
What is the difference between the new SQlab 614 Gravel saddle and the already familiar 611 and 612 models for use on mountain bikes and road bikes? At first glance, nothing really. Like its siblings, the latest model from the ergonomics experts also has the classic design with the pronounced step, the wide, flat rear and a relief channel in the perineal area. It is only when you compare the three models more closely that you recognise the small differences.

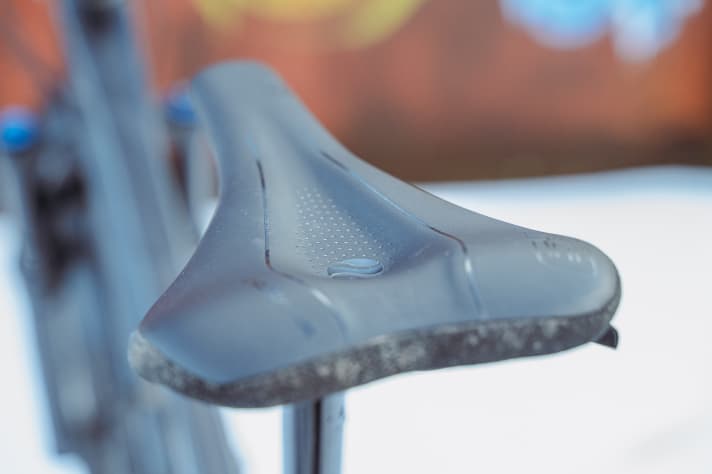

The new SQlab 614 Ergowave Active 2.1 saddle has been equipped with slightly more padding than the 612 road bike saddle to provide additional comfort on bumpy gravel paths. The rear of the saddle has also been raised slightly to provide more rear support when pedalling off-road and to transfer power to the pedals more efficiently. At the same time, the lower nose and the stronger dip, i.e. the relief zone in the perineal area, create more space and freedom of movement. The tip of the saddle has been kept wide and flat to provide sufficient support on steep climbs.

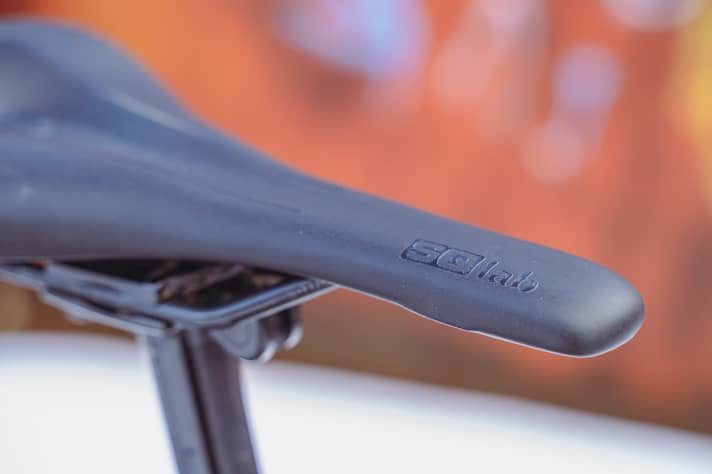

The more pronounced lateral taper was adopted from the road bike saddle. This should ensure that even riders with strong thighs do not have to grind uncomfortably on the saddle. It also improves manoeuvrability on the bike saddle, which in turn should benefit an active off-road riding style.
Ergowave Active 2.1 - adjustable chassis

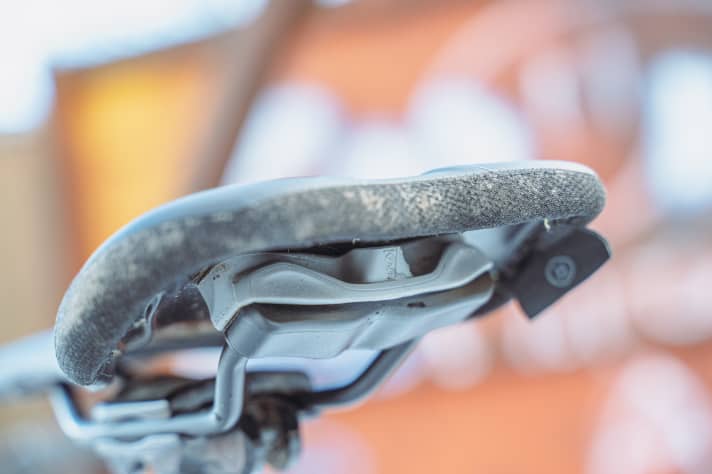

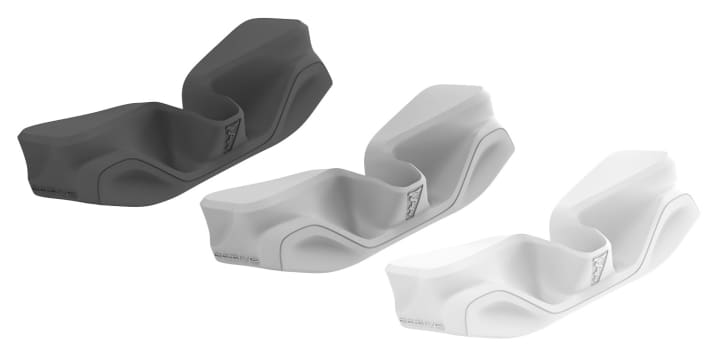

As with all Active saddles from SQlab, the tried and tested Active 2.1 system is also used in the 614. With this system, the seat is mounted on the saddle frame so that it can move easily. This allows the saddle to follow the rider's pedalling motion, which in turn mobilises the intervertebral discs and relieves pressure on the sit bones. The degree of flexibility can be adapted to the different needs of the rider using three elastomers of different hardness. The corresponding elastomers, hard, medium and soft, are included in the scope of delivery.
SQlab saddles - the right size for everyone
Because optimum seating comfort can only be achieved if the saddle width fits the rider's anatomy perfectly, SQlab offers the 614 in five widths (12, 13, 14, 15, 16 cm). The way to find the right size is to measure the sit bone distance and select the appropriate position on the bike for the corresponding width. The measurement itself can easily be carried out at home (instructions on the SQlab website) or at a local SQlab dealer.
SQlab 614 Ergowave Active 2.1 - first test of the new saddle

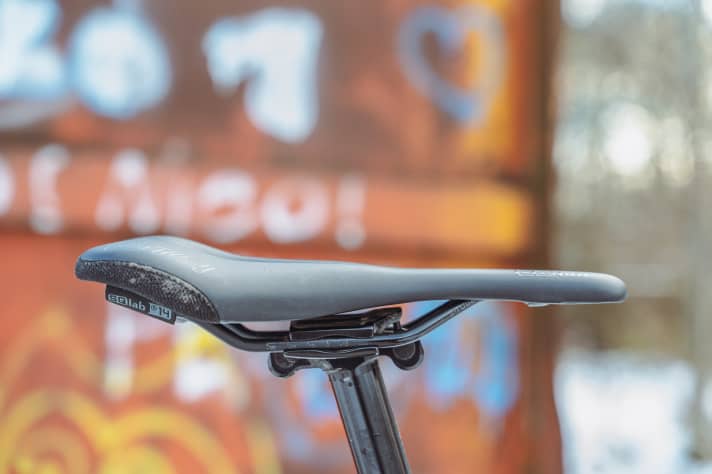

Fitting a saddle is not rocket science, of course. And yet every rider has their own personal preferences when it comes to adjustment. As a rule, however, you start with the saddle in a horizontal position, which is also a recommended starting point for the SQlab. Due to the step shape, the perineal area is already effectively relieved in this position. If you want a little more freedom in the sensitive seating area, you can tilt the saddle nose slightly downwards. However, you should proceed with caution here, as otherwise the step will cause you to slide forwards slightly and you will have to do a lot of holding work while riding.

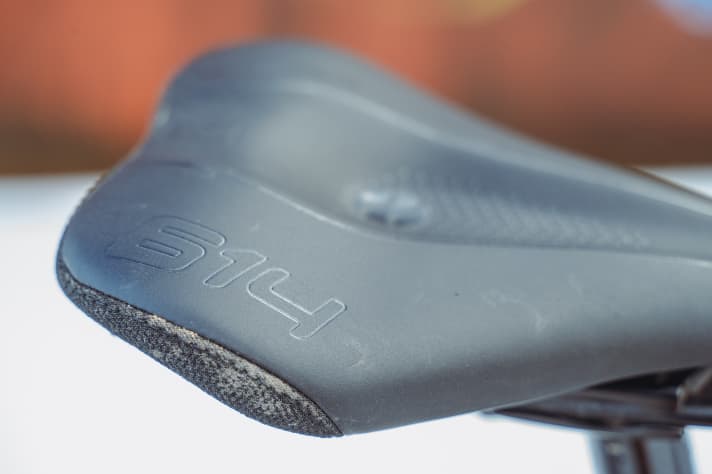

Otherwise, the shape of the SQlab 614 Ergowave Active 2.1 is also fully convincing off-road. The slightly higher step provides very good rearward support on steep climbs when seated and allows you to pedal effectively. The slightly narrower flanks provide sufficient space for a comfortable pedalling position on technical terrain. The step and dip provide noticeable relief in the perineal area even on long rides. Fortunately, there are no pressure points or even numbness. Those who like to slide far forwards on steep sections will find sufficient support on the flat saddle nose.
High level of comfort despite firm upholstery
The additional cushioning, on the other hand, is hardly noticeable. The 614 Ergowave Active 2.1 has a sporty, firm seat - but this suits the intended area of use very well. Sporty riders are generally used to spending long hours in the saddle and appreciate padding that doesn't sink in even after many kilometres. This is exactly what the SQlab 614 does, and once again we found the Active system to be particularly comfortable. The slight lateral movement actually seems to mobilise the lower back and doesn't let you freeze in a tense position. This is a strong argument, especially for bikers who often struggle with lower back pain anyway.

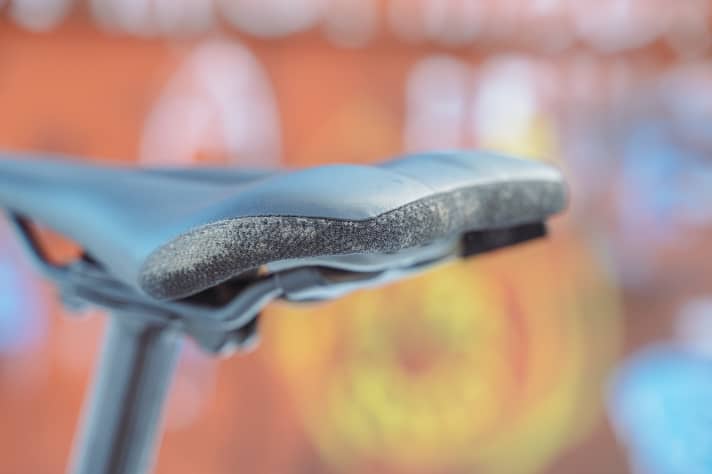

One fine detail is the Kevlar-covered rear section. It protects the saddle in the event of a fall and increases durability.
Conclusion on the SQlab 614 Ergowave
The differences between the individual SQlab models are not great. The slightly narrower design of the new 614 appeals primarily to sporty and powerful riders. Whether you use the saddle on a gravel bike or an XC hardtail doesn't really matter from our point of view. The firm padding is well suited to the race-orientated area of use. The three models 611, 612 and 614 are not much different in terms of weight. There are just five grams between the individual versions. A version with a carbon frame would save even more weight and make the SQlab 614 Ergowave Active 2.1 even more interesting for racers. However, this would do away with the really impressive Active function, which is currently reserved for saddles with an aluminium frame.
Stefan Frey
Editor
