Price / Info 698 Euro www.syntace.de

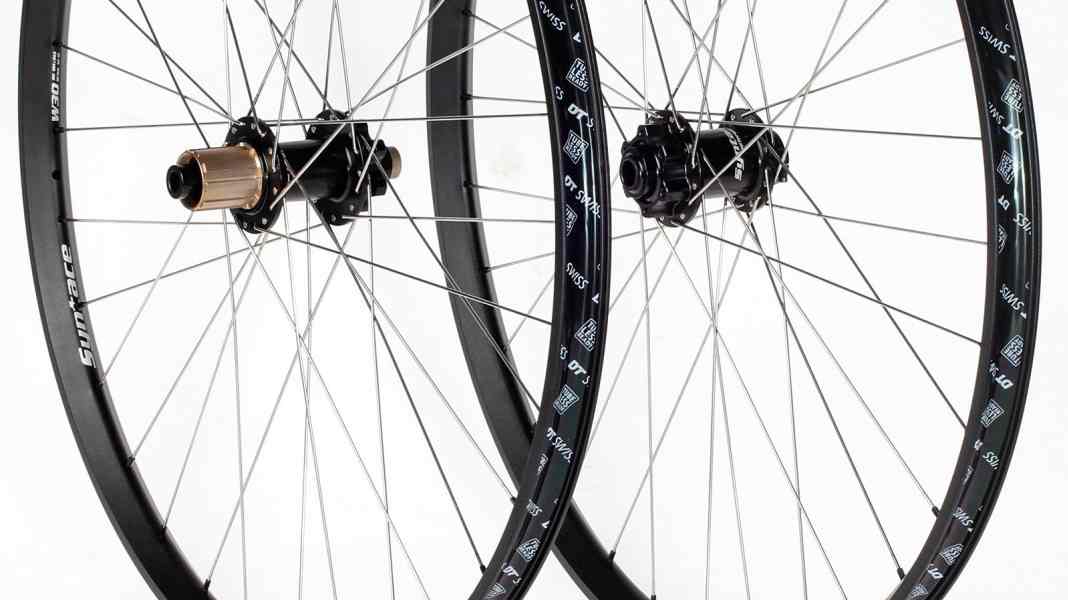

Description of the Aluminium rim, 32 triple-crossed round spokes (2.0-1.8 mm), toothed disc freewheel, incl. measurement report
Available diameters 26", 27,5", 29"
Available brake mount 6-hole
Available front axle standards 15 mm, 20 mm
Available rear axle standards 12 x 142 mm
Max. tyre width Tyre width 2.0-2.4 inch recommended
Max. Rider weight/disc size 110 kg/203 mm
MEASURED VALUES
Rim width (inside) 24.5 mm
Weight² VR 827 g/HR 904 g/wt. 1731 g
Stiffness VR 61 N/mm / HR 60 N/mm
Inertia VR 438 kg x cm²/HR 439 kg x cm²
Polar diagram VR/HR (spoke deflection in mm; red: right side, blue: left side)
Spoke tension deviation fron. left: 24 %, fron. right: 20 %, hi. left: 13 %, hi. right: 5%
Concentricity/centredness new condition (points/max. points) 7/10
Resistance to overload (points/max. points) 9/10
Conclusion A high number of spokes with thick spokes and toothed disc freewheel ensure stability. Quite light despite the 24.5 mm rim. Other inner rim widths up to 33.5 millimetres available. Just short of super.
BIKE judgement³ VERY GOOD (379)
¹QR stands for Quickrelease = normal quick release.
²Weight without quick release and including rim tape.
The BIKE judgement is independent of price. BIKE judgements: super (510-380 pts.), very good (379-330 pts.), good (329-280 pts.), satisfactory (279-230 pts.), with weaknesses (229-180 pts.), unsatisfactory.
