Price / Info 629 Euro www.sun-Ringlé.com

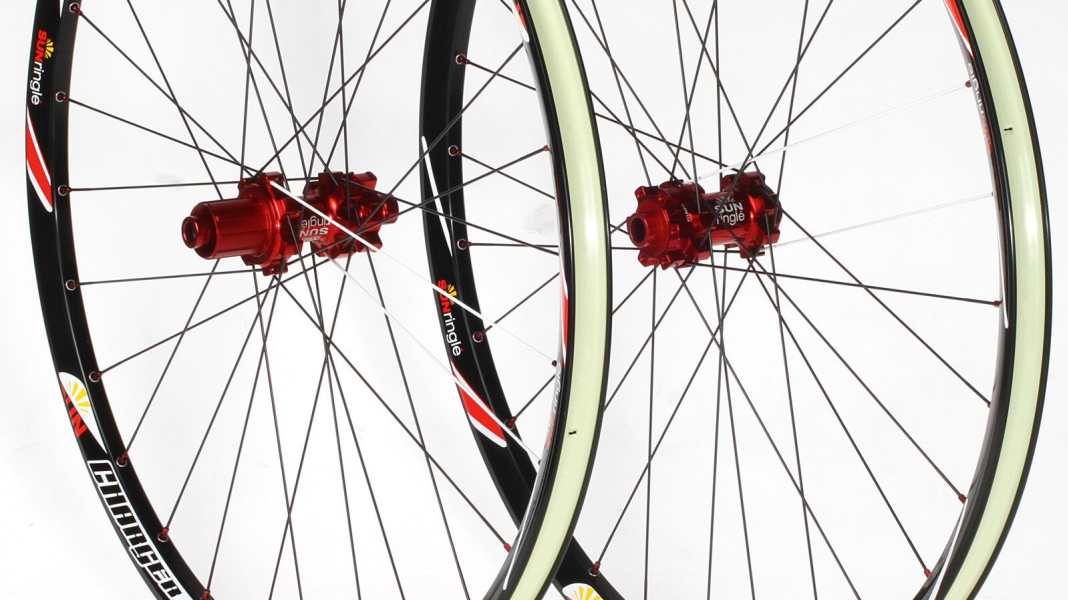

Description of the Aluminium rim, 28 triple-crossed round rims. (2.0-1.6 mm), pawl release, incl. TL tape, valves, milk, quick release
Available diameters 26", 27,5", 29"
Available brake mount 6-hole
Available front axle standards QR¹, 15 mm, 20 mm
Available rear axle standards QR¹, 12 x 142 mm
Max. tyre width Tyre width 2.4 inch
Max. Rider weight/disc size no restriction/203 mm
MEASURED VALUES
Rim width (inside) 22.7 mm
Weight² VR 855 g/HR 971 g/wt. 1826 g
Stiffness VR 62 N/mm / HR 53 N/mm
Inertia VR 457 kg x cm²/HR 457 kg x cm²
Polar diagram VR/HR (spoke deflection in mm; red: right side, blue: left side)
Spoke tension deviation front left: 10 %, front right: 13 %, hi. left: 15 %, hi. right: 8 %
Concentricity/centredness new condition (points/max. points) 4/10
Resistance to overload (points/max. points) 10/10
Conclusion The heaviest wheels in the test field have a medium-width rim and come with extensive accessories including latex milk. Evenly tensioned, but with deviations in concentricity.
BIKE judgement³ VERY GOOD (370)
¹QR stands for Quickrelease = normal quick release.
²Weight without quick release and including rim tape.
The BIKE judgement is independent of price. BIKE judgements: super (510-380 pts.), very good (379-330 pts.), good (329-280 pts.), satisfactory (279-230 pts.), with weaknesses (229-180 pts.), unsatisfactory.
