Price / Info 850 Euro (with tyres) www.mavic.com
Description of the Aluminium TL rim, 24 blade rims (4.2-2.2 mm) front double, rear double/radial, pawl freewheel, incl. quick release, valves, solenoid
Available diameters 26", 27,5", 29"
Available brake mount 6-hole
Available front axle standards QR¹, 15 mm, 20 mm
Available rear axle standards QR¹, 12 x 142 mm, 12 x 135 mm
Max. tyre width Tyre width not specified
Max. Rider weight/disc size 120 kg/no data
MEASURED VALUES
Rim width (inside) 22.6 mm
Weight² VR 791 g/HR 900 g/ges. 1691 g
Stiffness VR 63 N/mm / HR 64 N/mm
Inertia VR 415 kg x cm²/HR 422 kg x cm²

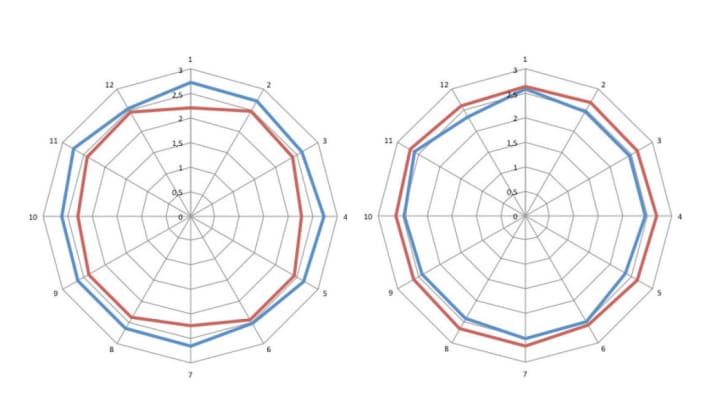

Polar diagram VR/HR (spoke deflection in mm; red: right side, blue: left side)
Spoke tension deviation fron. left: 8 %, fron. right: 11 %, hi. left: 11 %, hi. right: 5 %
Concentricity/centredness new condition (points/max. points) 6/10
Resistance to overload (points/max. points) 9/10
Conclusion Mavic continues to rely on fewer but thicker aluminium spokes combined with a slightly wider tubeless rim for the first time. Low spread in spoke tension, good stiffness, lots of accessories.
BIKE judgement³ SUPER (389)
¹QR stands for Quickrelease = normal quick release.
²Weight without quick release and including rim tape.
The BIKE judgement is independent of price. BIKE judgements: super (510-380 pts.), very good (379-330 pts.), good (329-280 pts.), satisfactory (279-230 pts.), with weaknesses (229-180 pts.), unsatisfactory.
