E-ThirteenLightweight carbon wheels for racers

Adrian Kaether

 · 09.12.2019

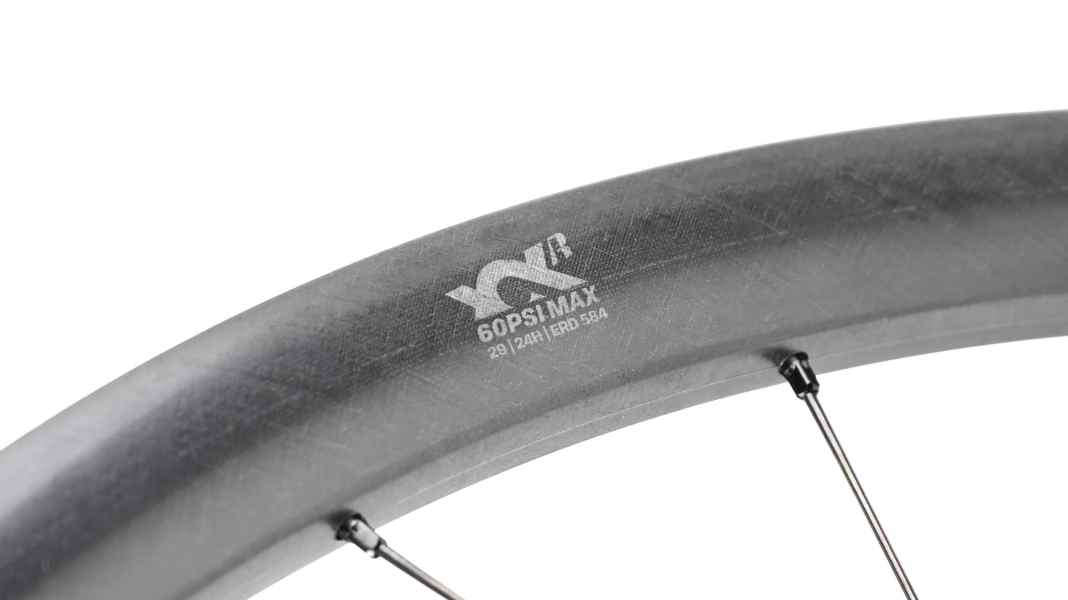

E-Thirteen: Lightweight carbon wheels for racersPhoto: E-Thirteen
E-Thirteen: Lightweight carbon wheels for racers
Carbon wheelsets are available from almost all well-known manufacturers. E-Thirteen is now following suit and aims to inspire racers in particular with the XCX Race Carbon wheelset, which weighs just 1350 grams.

Time and again, the accessory manufacturer E-Thirteen brings out parts that we wouldn't have expected. Lighter or cheaper than the competition, or both. For example, a few months ago, with the affordable retrofit cassettes and the super-light carbon cranks. Now the Americans are following up with two sets of lightweight carbon wheelsets, which should make lightweight fanatic touring riders, XC racers and gravel bikers happy. There is also an exciting model with a wider rim for trail riders.

  The E-Thirteen XCX Race IW24 rim weighs just 340 grams per rim.Photo: E-Thirteen The E-Thirteen XCX Race IW24 rim weighs just 340 grams per rim.
  The IW28 rim with a 28 millimetre rim width is designed for trail bikers. This provides more clearance for wide tyres.Photo: E-Thirteen The IW28 rim with a 28 millimetre rim width is designed for trail bikers. This provides more clearance for wide tyres.

Two jaw widths, 1800 and 2000 euros

First of all: the new carbon wheels from E-Thirteen are not exactly cheap - but nobody would have expected that. The XCX Race Carbon IW24 set with 24 millimetre rims for hardcore racers and gravel bikers costs € 1998. The more trail bike-orientated XCX Race Carbon IW28 set with 28 millimetre rims still costs 1778 euros. Nothing for the tight budget. If you're more on a budget, you're better off with a high-quality aluminium wheelset anyway.

  The newly developed hub for the XCX Race Carbon wheelset. With a combination of pressing and turning, the axle can be unlocked on the non-drive side and then removed. This makes maintenance easier. In addition to Microspline, the wheels are of course also available with XD freewheel, both in Boost format.Photo: E-Thirteen The newly developed hub for the XCX Race Carbon wheelset. With a combination of pressing and turning, the axle can be unlocked on the non-drive side and then removed. This makes maintenance easier. In addition to Microspline, the wheels are of course also available with XD freewheel, both in Boost format.

XCX Race Carbon: Technical data and weights

The relatively low weight in combination with the lifetime guarantee that E-Thirteen gives on the wheels justifies the high price. In addition, the hubs were specially developed for the new wheels and can now be disassembled and reassembled without tools. Practical if you need to re-grease or change a bearing after a few thousand kilometres. The freehub engages every 6 degrees on both the Microspline and XD versions, and the spokes come from the upper DT Swiss range (IW24: DT Swiss Revolution triple butted, IW28: DT Swiss Comp Race triple butted).

How do you like this article?

However, the emphasis is clearly on lightweight construction: the IW24 rim weighs 340 grams, the IW28 380 grams. In total, the wheelsets have a system weight of 1350 grams (IW24) and 1520 grams (IW28).

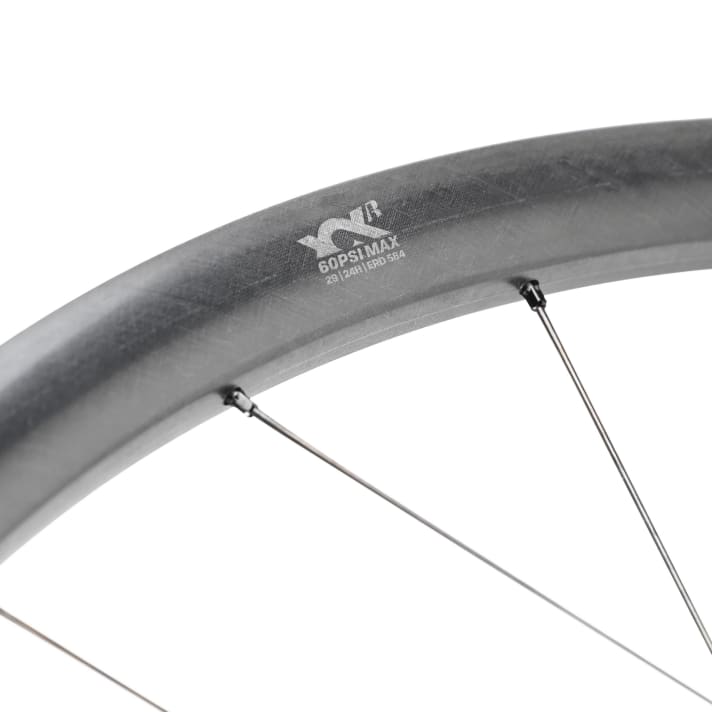

  Nice detail: the woven fibres are still clearly visible under the resin.Photo: E-Thirteen Nice detail: the woven fibres are still clearly visible under the resin.

All further information on the E-Thirteen XCX wheelsets can be found on the Website of E-Thirteen.

Adrian Kaether's favourite thing to do is ride mountain bikes on bumpy enduro trails. The tech expert and bike tester knows all about Newton metres and watt hours, high and low-speed damping. As test manager at MYBIKE, Adrian also likes to think outside the box and tests cargo bikes and step-through bikes as well as the latest (e-)MTBs.
