DT Swiss 240How do you improve a classic hub?

Peter Nilges

 · 30.04.2020

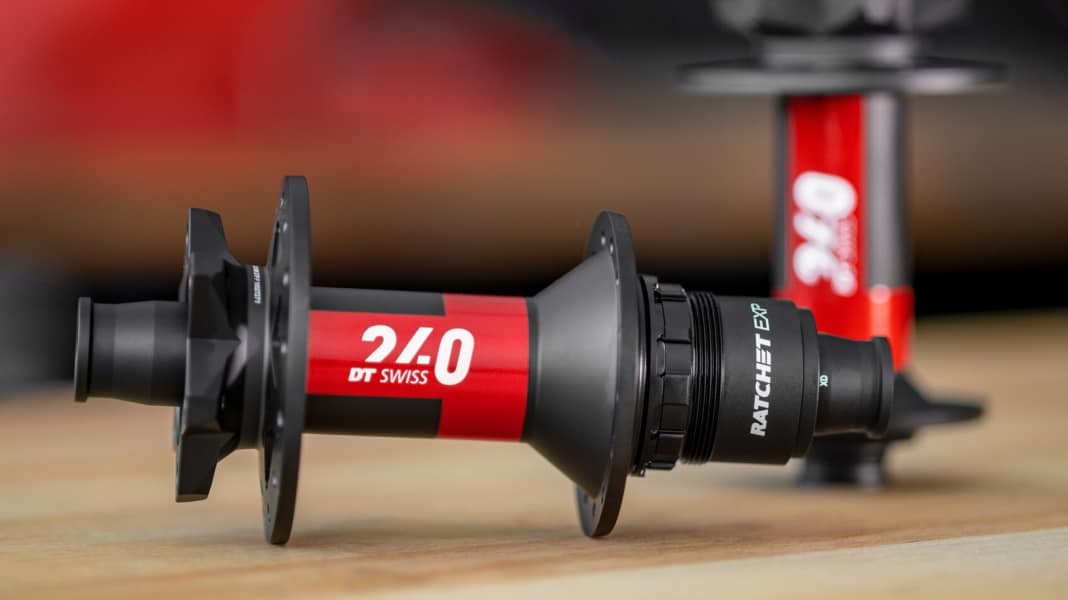

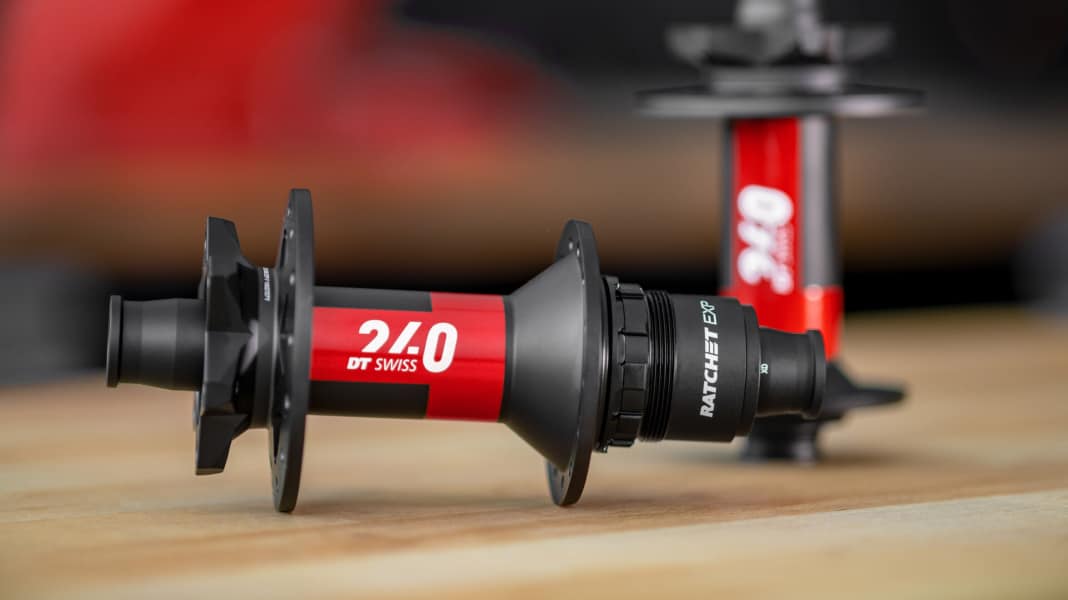

DT Swiss 240: How do you improve a classic hub?Photo: DT Swiss
DT Swiss 240: How do you improve a classic hub?
Following the update of the 180 hub, DT Swiss is also giving the 240 a complete overhaul. The latest DT Swiss generation of the classic hub should be more stable, stiffer and lighter.

Extended shelf life of the bearing

As with the 180 hub with EXP freehub the distance between the bearings in the hub shell of the DT Swiss 240 EXP has been increased. This reduces the bending load on the axle, which ultimately means less stress for the bearings. The bearing on the drive side has been integrated into the bolted toothed disc.

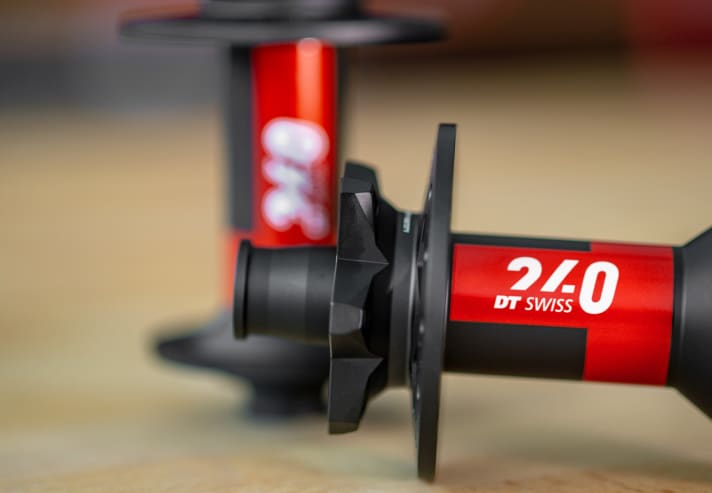

The classic DT 240 EXP MTB hubs with 28/32 spokes are available from 113 (front) or 208 grams (rear) and in all common axle standards - from 15/100 mm to 12 /157mm+.Photo: DT Swiss The classic DT 240 EXP MTB hubs with 28/32 spokes are available from 113 (front) or 208 grams (rear) and in all common axle standards - from 15/100 mm to 12 /157mm+.

The new DT Swiss 240: Fewer parts

Instead of two coil springs, DT uses just one spring for the 240. This reduces the components and therefore the weight and, according to DT Swiss, should ensure even faster and more reliable engagement of the toothed discs. The toothed discs have 36 teeth, which means an engagement angle of 10 degrees. For trial riders, the conversion kit with 54 teeth and 6.7 degrees is exciting.

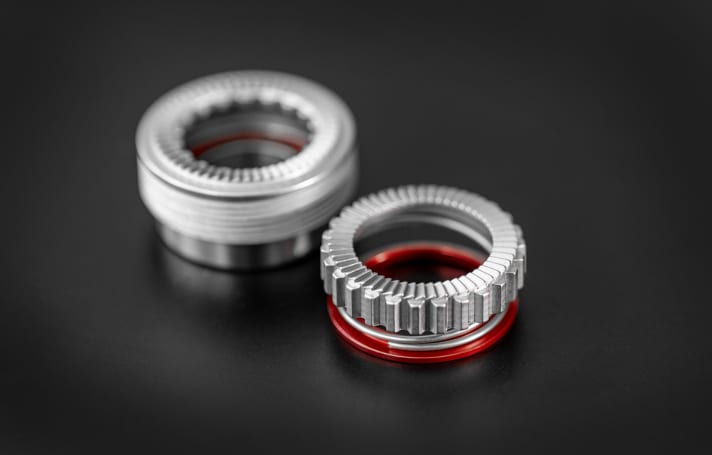

In the old 240 hubs, more parts and two springs were used, in the new DT Swiss 240 EXP (front) the individual parts have been reduced and it manages with one spring.Photo: DT Swiss In the old 240 hubs, more parts and two springs were used, in the new DT Swiss 240 EXP (front) the individual parts have been reduced and it manages with one spring.

Easier to dismantle

Thanks to a notch at the end of the end cap, the new DT Swiss 240 hubs should now be even easier to dismantle without tools if a service is required.

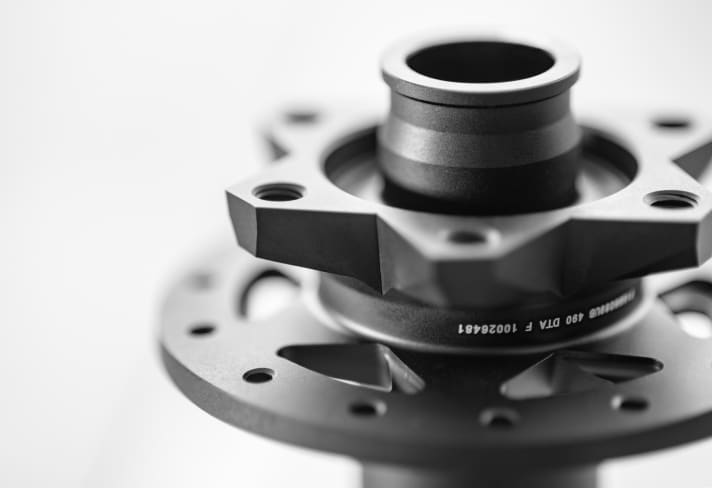

Simple, tool-free maintenance: the new end caps with notch are designed to be even easier to remove.Photo: DT Swiss Simple, tool-free maintenance: the new end caps with notch are designed to be even easier to remove.

Availabilities

The new 240 EXP hubs will be available for classic J-bend and straight-pull spokes. 149.90 euros will be charged for the front wheel and 293.90 euros for the rear wheel. In the lightest configuration, the front hub should weigh 104 grams and the rear hub 199 grams. There is still a 6-hole version and a centrelock version for brake disc mounting. DT Swiss also offers a rear hub of the 240 with Superboost installation dimension (157 mm). Of course, the new 240 EXP hub available with all conceivable freewheels.

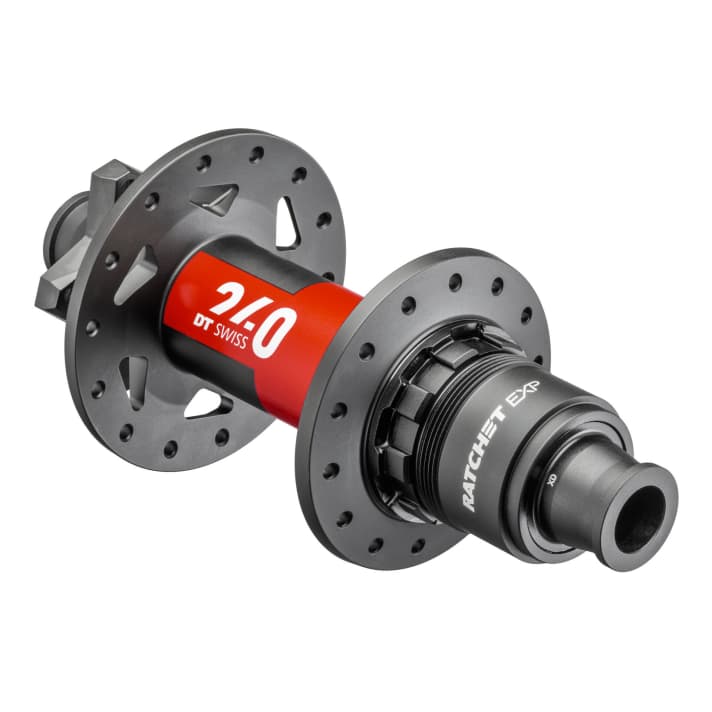

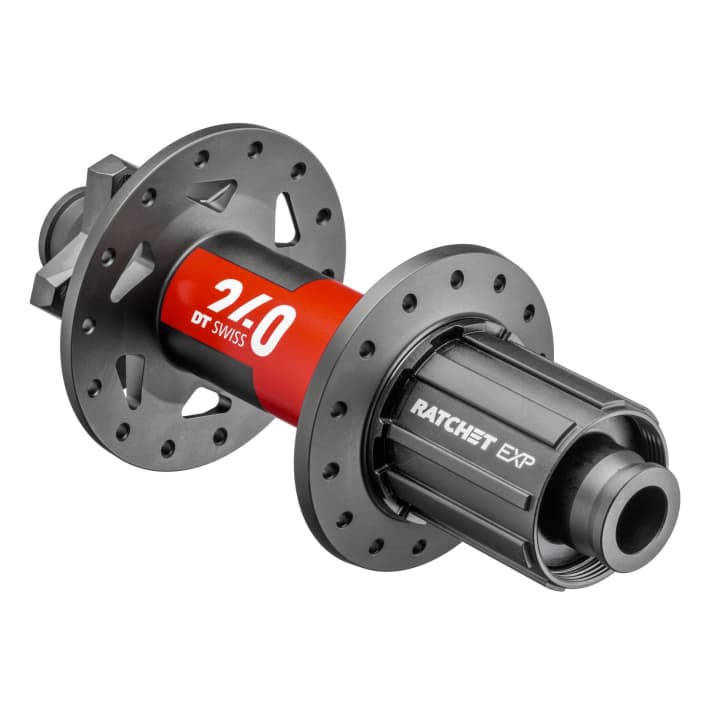

Whether with Micro Spline freehub body for current Shimano 12-speed drivetrains or...Photo: DT Swiss Whether with Micro Spline freehub body for current Shimano 12-speed drivetrains or... ...with Sram XD freehub: The new DT Swiss 240 EXP hub can be fitted with all standard freewheels.Photo: DT Swiss ...with Sram XD freehub: The new DT Swiss 240 EXP hub can be fitted with all standard freewheels.
