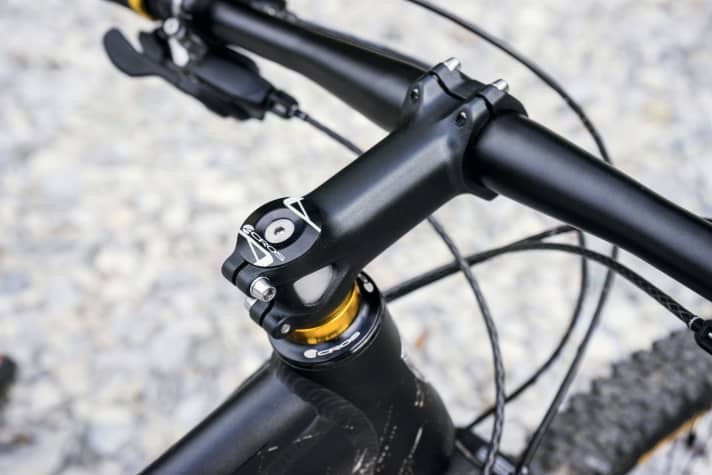

Successful System integration on the headset looks like this: Standardised industrial bearings are simply placed in precisely fitting recesses in the head tube and held in position by clamping the steerer tube and stem. The fork is simply removed for maintenance. The bearings can then be removed, cleaned, greased and reinserted. No special tools are required for this, just the appropriate Allen key for the stem and headset bolt. Even a mini-tool would be sufficient.

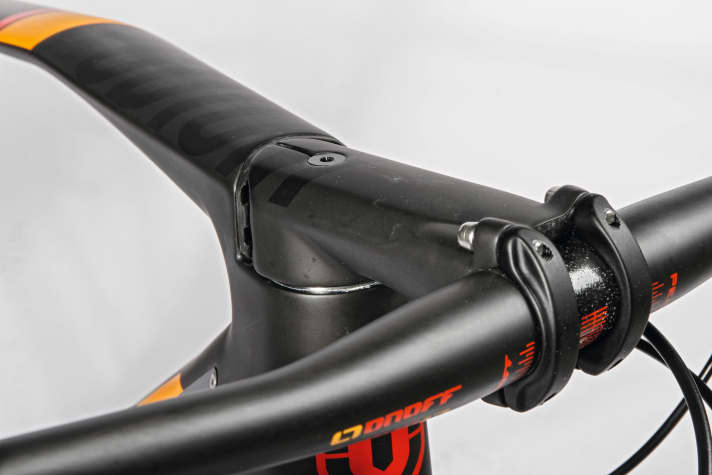

Press-fit headsets, on the other hand, are the opposite and are rarely found today. The installation and removal effort is significantly greater here because not only are more components required, but also a special press-fit tool. Mondraker goes one step further with its semi-integrated stem. This also takes over the function of the Ahead cap. This saves weight and ensures an almost seamless transition into the main frame. However, the steerer tube has to be shortened precisely because spacers can no longer be fitted over the stem, which also minimises the adjustment options.
It becomes more complex when cables and lines disappear through the headset into the frame. This may look elegant, but in the worst case it can lead to kinked cables and increased friction. As many manufacturers install their own system here, workshops are faced with new challenges every time and have to adapt to the special features of the headset, the spacers and the stem.

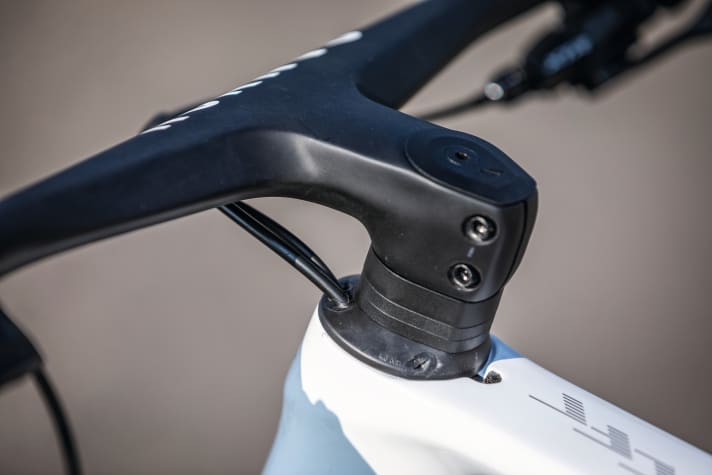

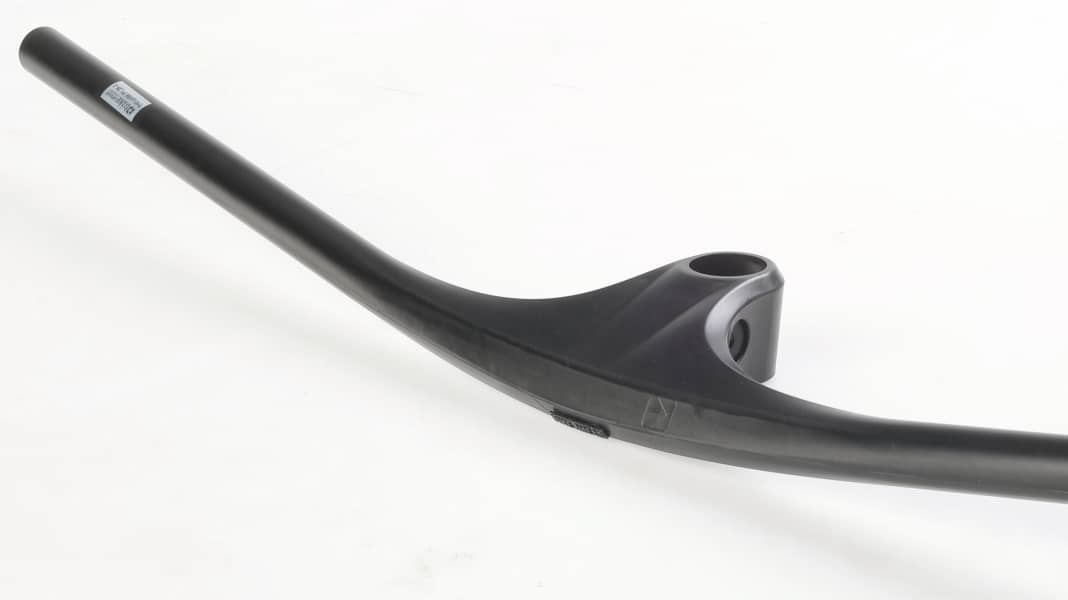

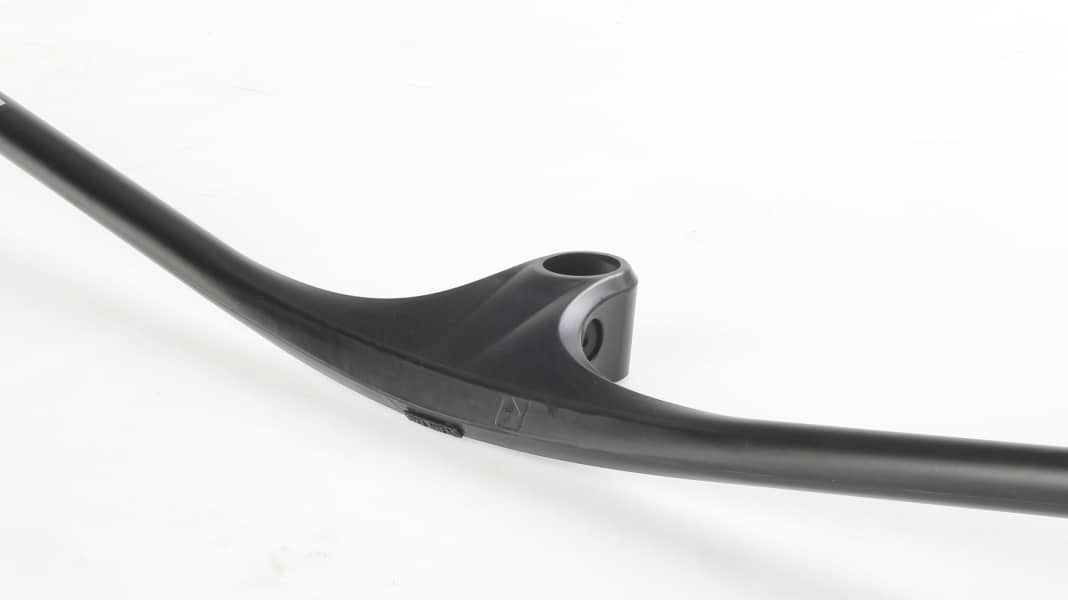

Our tip for amateur mechanics: When dismantling, memorise the exact sequence and set the parts aside in the correct order. This will save you guesswork when reassembling. Handlebar-stem combos, which merge both parts into one organic unit, are also not without their pitfalls: True, they save weight and transform any bike into an eye-catcher. But if you want to adjust the stem length, handlebar rise or backsweep afterwards, you have to replace the entire unit - and that can be expensive.
