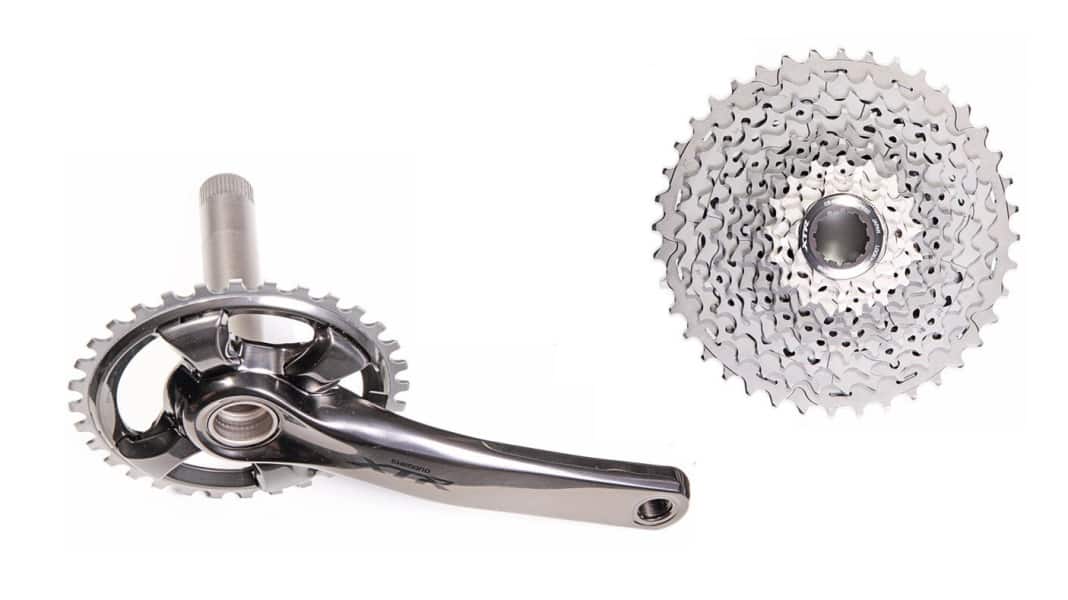

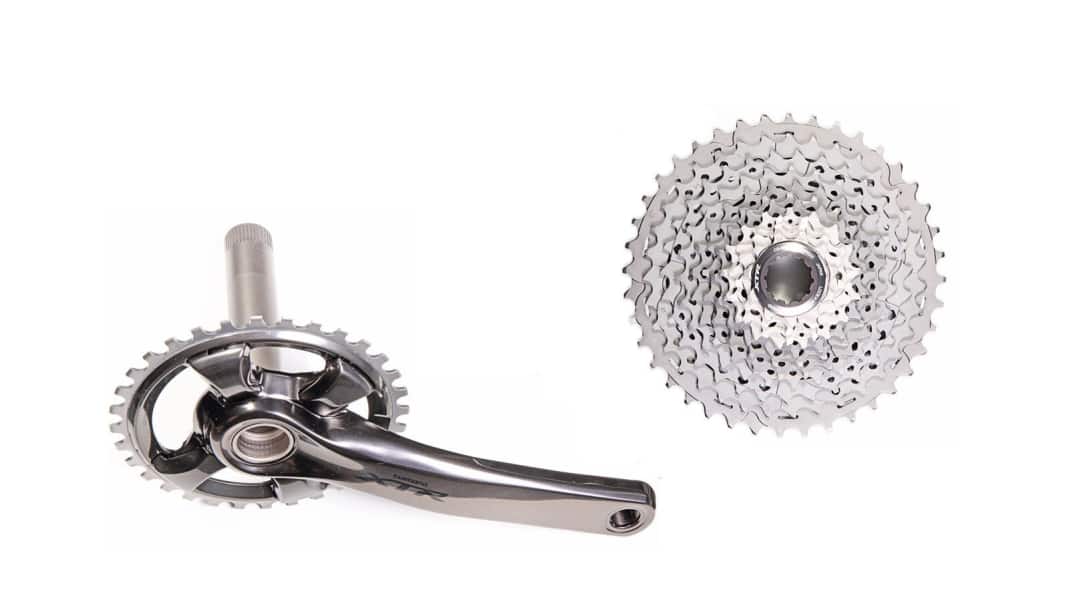

Info www.shimano.com
Prices crankset/sprocket/chain¹ 376/198/36 Euro
Prices replacement blades¹ 99,00 Euro
Variants 30, 32, 34, 36 teeth; crank lengths: 165, 170, 175, 180 mm; also available as 2x11 and 3x11
Leaf Aluminium/titanium, 32 teeth, 79 g
Pinion set Steel/titanium/aluminium, 11-40
Chain Steel, 116 links, hollow pin, 5.66 mm
Chain fastener Rivet pin
Weight crank/pinion/inner bearing 603/327/65 g
Weight chain 116 links 254 g
Total weight gearbox 1249 g
Chain/joint elongation 0.022 mm
RATING
Drive weight (25 %) 9 (max. 10 points)
Pinion wear (25 %) 7 (max. 10 points)
Leaf wear (25 %) 7 (max. 10 points)
Chain wear (25 %) 9 (max. 10 points)
Conclusion Convertible lightweight gearbox for racers; optionally available as 2x11 or 3x11. The hybrid blade with high titanium teeth is more wear-resistant than aluminium blades. The cassette consisting of several segments with a steel/titanium/aluminium mix is more sensitive than Sram. Still very good.
BIKE judgement² VERY GOOD
Road prices for wearing parts
²The BIKE judgement reflects the laboratory measurements and the subjective impression of the test riders. The BIKE judgement is independent of price.
BIKE judgements: super, very good, good, satisfactory, with weaknesses, unsatisfactory.
