How to fit clipless pedals correctly

In six steps, we explain how to mount clipless pedals correctly so that you have a firm connection to your bike while riding.

Add bookmark

Correctly aligned cleats not only increase pedalling efficiency. You can also prevent joint pain while riding. Take enough time to align the cleats accurately.

Longitudinal orientation

The pedal axis should be under the ball of the foot. To do this, locate the metatarsophalangeal joints at the widest point of the foot. The cleat should lie on the imaginary line in between.

Marking Feel the metatarsophalangeal joints on both sides of the tightened cycling shoe and mark the points with a pen or a small dot of adhesive for better orientation.

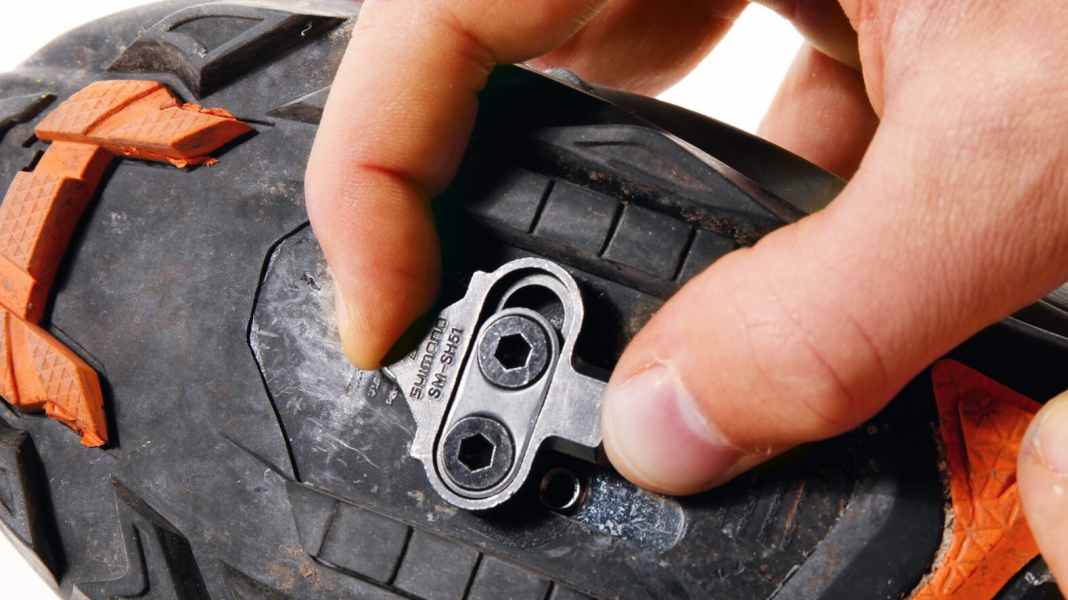

Alignment Using a triangle, the cleats can now be moved in the slotted holes of the shoe soles so that they lie exactly in the previously marked position under the ball of the foot.

Lateral alignment The closer the feet are to the bottom bracket, the better the power transmission. You can adjust the Q-factor via the lateral offset. Make sure there is enough space between the shoe and the crank.

Foot angle The basic position of the feet should be as parallel as possible. If the pedalling feels unbalanced, adjust the position to your own foot position when standing and walking by turning the cleats.
