Brakes	Shimano MT410, aluminium, 180mm / Shimano MT410, aluminium, 160mm
Brake levers	Shimano MT402, aluminium
Frame	Aluminium 6061, post-mount disc brake
Drivetrain	Shimano Deore M4120, 10-speed
Shift levers	Shimano Deore M4100, trigger shifters
Number of gears	10
Fork	RST Volant, suspension travel: 60mm
Crankset	Samox, 38
Sprocket	Shimano M4100, 11–42 teeth
Drive	KMC e10S
Headset	A-Head Tapered
Handlebar	Ergobar, oversized 640mm
Grips	XLC Comfort bo3
Stem	Aluminium, angle-adjustable, A-Head, bar bore: 31.8mm
Saddle	Selle Royal Wave
Seatpost	XLC, spring-loaded, 31.6 mm, aluminium
Rims	Ryde Eco21, eyeletted, hollow-section rim, aluminium
Tires	Schwalbe Road Cruiser, 50-622, Reflex
Front hub	Alunabe
Rear hub	Aluminium hub
Spokes	Nirosta spokes
Pedals	VP VPE-461
Front light	Herrmans H-Black MR4 E 6–12 V, 40 lux
Rear light	AXA Juno e-bike
Mudguards	Eurofender Tempo, Chromoplastik
Kickstand	Ursus Mooi, adjustable
Rack	XinXing System Luggage Rack, MIK
Motor manufacturer / model	Bosch Performance Line, 250W, 65Nm, 25km/h
Display	Bosch Intuvia
Battery	Bosch PowerTube
Battery capacity (Wh)	500
Charger	Bosch Compact Charger 2Ah

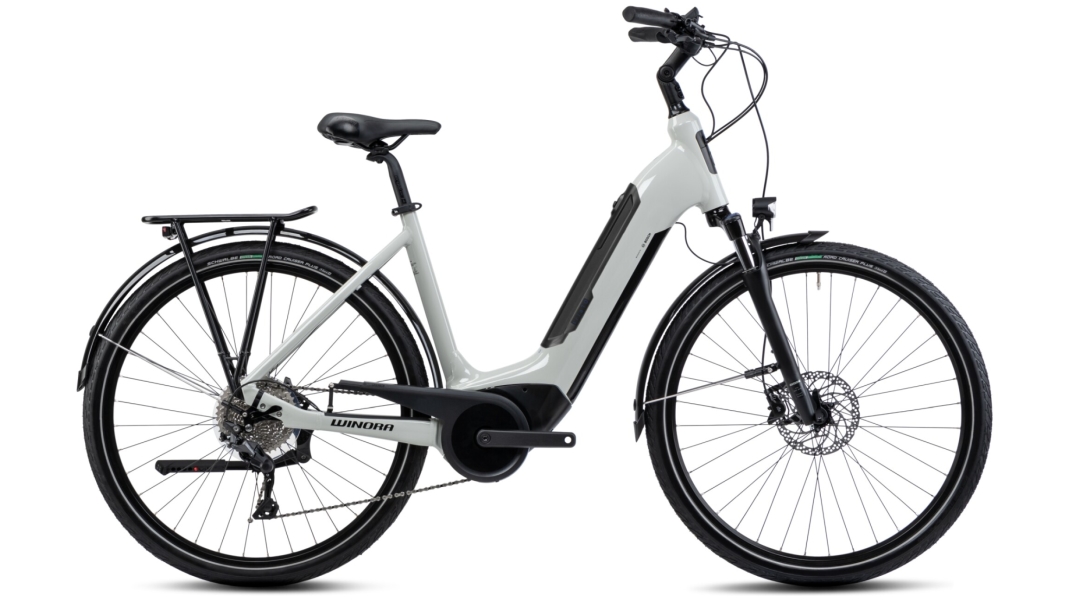

Winora Tria 10
