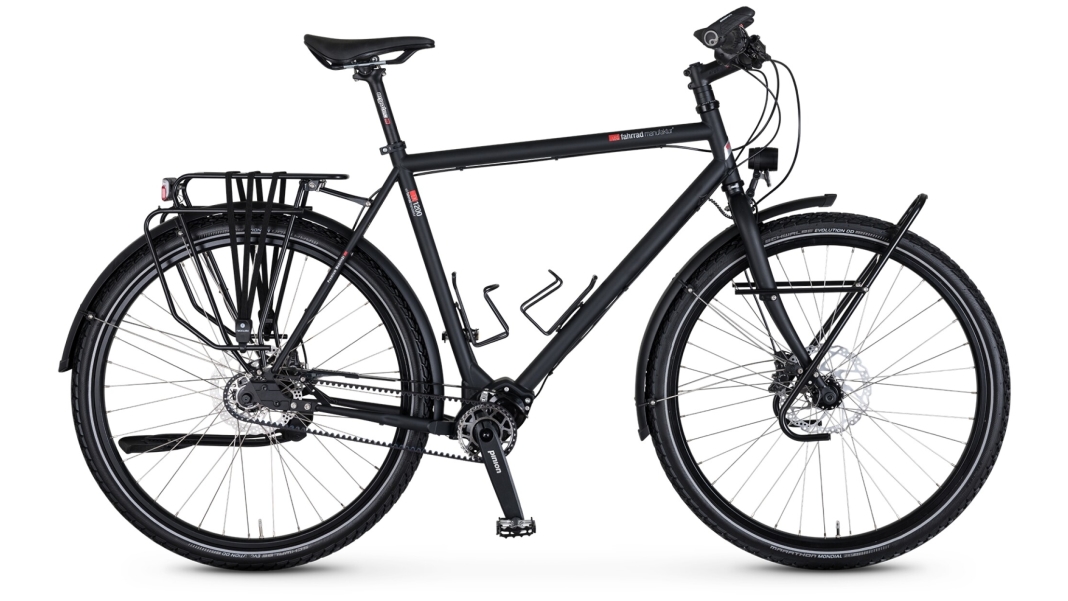

VSF Fahrradmanufaktur TX-1200
Model: TX-1200
Model year: 2023
Price: 5.599,00 €
Category: Reiserad
Weight: 18 kg
Permissible total weight: 170 kg
Tests & Reviews
Equipment
| Rear brakes | Shimano Deore XT BR-M8100 (160mm) |
| Front brakes | Shimano Deore XT BR-M8100 (front 180 mm / rear 180 mm) |
| Brake levers | Shimano Deore XT BL-T8100, 3-finger lever |
| Frame | 25 CrMo 4, double butted, disc, with Pinion interface |
| Drivetrain | Pinion P1.18 |
| Shift levers | Pinion DS2.18, twist grip shifter |
| Number of gears | 18 |
| Fork | 27.5" 25CrMo 4, thru axle 12 x 100 mm, 27.5" steel |
| Bottom bracket | Pinion P1.18 |
| Crankset | Pinion aluminium, 170 mm, with Gates CDX pulley 32 teeth |
| Sprocket | Gates CDX pulley, 26 teeth |
| Drive | Gates CDX drive belt |
| Headset | Ritchey Comp Logic V2 |
| Handlebar | Humpert Ergotec Trekking, aluminium, 620 mm, safety level 6 |
| Grips | Ergon GP3, with screw clamp and integrated bar ends |
| Stem | Humpert Ergotec Piranha 2, 31.8 mm, safety level 6 |
| Saddle | Selle Royal Scientia |
| Seatpost | Humpert Ergotec Skalar, aluminium, 27.2 mm, 300 mm, safety level 6 |
| Rims | Ryde Andra 40 Disc aluminium hollow chamber, 32 hole |
| Front tire | Schwalbe Marathon Mondial, 50-584, reflex |
| Rear tire | Schwalbe Marathon Mondial, 50-584, reflex |
| Front hub | SON 28, 12 x 100 mm, hub dynamo, centrelock, 32 holes |
| Rear hub | Pinion H2.R, 32 hole |
| Spokes | Stainless steel ED 2.34 mm |
| Pedals | Marwi SP-2661, aluminium |
| Front light | Busch & Müller Lumotec IQ-X, 100 LUX with parking light |
| Rear light | Busch & Müller Line LED, with parking light |
| Mudguards | SKS plastic |
| Kickstand | Pletscher Comp Zoom, rear kickstand |
| Rack | Tubus Logo Evo / Tubus Tara Lowrider |
