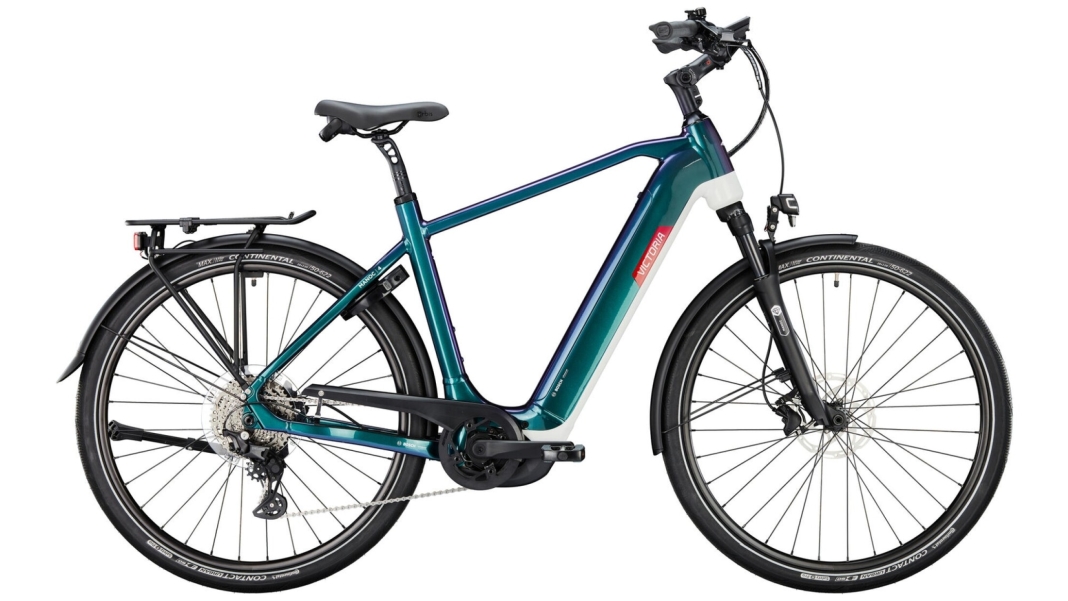

Victoria MANOC 4 Diamant
Model: MANOC 4 Diamant
Model year: 2024
Price: 4.499,00 €
Category: Trekkingbike
Permissible total weight: 170 kg
Tests & Reviews
Equipment
| Brakes | MAGURA "AT2" |
| Front brake disc | MAGUR "AT2", disc, 6-hole, 180 mm |
| Rear brake disc | MAGURA "AT2", disc, 6-hole, 160 mm |
| Brake levers | MAGURA "AT2" |
| Frame | Bosch Intube frame, 6061 aluminium, diamond shape, 50 cm |
| Drivetrain | 1x10-speed SHIMANO Deore |
| Shift levers | SHIMANO "Deore" SL-M5130-R10" |
| Number of gears | 10 |
| Fork | RST 2022 "VIVair E-15 TNL", 700C x 300 mm, tapered, threadless, 80 mm travel, PM disc, QPQ, mudguard mount, matt black |
| Fork travel (mm) | 80 |
| Bottom bracket | BOSCH |
| Crankset | FSA "CK-220", Gen.4, 170 mm |
| Sprocket | FSA 42 teeth SHIMANO "CS-LG400-10 " 11-43 t silver |
| Drive | SHIMANO "CN-LG500" |
| Handlebar | ERGOTEC " Rise Bar 50 Comfort", 720 mm, Ø 31.8 mm, black, Level 6 |
| Grips | CONTEC "Merge Trekking Ergo" |
| Stem | ERGOTEC "Swell-R Ahead 70", Ø31.8 mm, 45 °, black 120mm + 5mm spacer |
| Saddle | SELLE ROYAL "Lookin HD Stonex", Moderate |
| Seatpost | ERGOTEC Patent "Hook Evolution", Ø 31.6 mm, 15mm setback, aluminium, black, Level 6 |
| Rims | MACH "650 Disc" |
| Front tire | SCHWALBE "Marathon Modial", 50-622, Reflex |
| Rear tire | SCHWALBE "Marathon Modial", 50-622, Reflex |
| Front hub | FORMULA "DC71", 15 x 100 mm |
| Rear hub | FORMULA "EHL-148S" |
| Spokes | Stainless steel, 2 mm, black |
| Pedals | UNION "SP-828", aluminium, anti-slip |
| Front light | CONTEC "Dlux 80 E+" 80 lux |
| Rear light | CONTEC "TL-335 E-Stop", with stop light |
| Mudguards | CURANA "Apollo", 60mm, matt black, spoiler |
| Kickstand | URSUS "King2", rear suspension, 40 mm, adjustable |
| Rack | MASSLOAD MIK |
| Motor manufacturer / model | BOSCH BES3 "Performance Line CX", 36 V, 250 W |
| Display | BOSCH, "Kiox 300" 4-stage, remote control, pushing aid |
| Battery | BOSCH "PowerTube 750", lithium-ion with BMS, 750 Wh |
| Battery capacity (Wh) | 625 |
| Charger | BOSCH 4 Ah |
