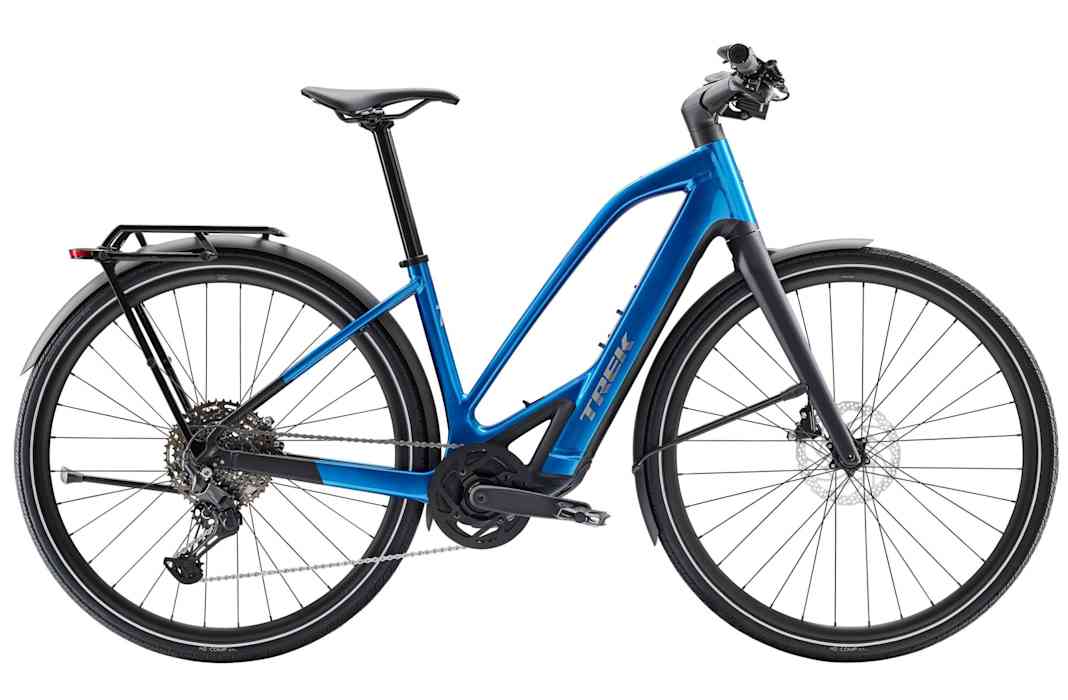

Trek FX+ 7 Midstep
4 Images
Model: FX+ 7 Midstep
Model year: 2026
Price: 4.499,00 €
Category: Trekkingbike
Frame material: Aluminium
Weight: 19 kg
Permissible total weight: 136 kg
Wheel size: 28"/622mm
Tests & Reviews
Equipment
| Rear brakes | Hydraulic disc brake from Shimano, RS600 brake lever, RS405 brake calliper // Hydraulic disc brake from Shimano, RS600 brake lever, RS405 brake calliper Shimano RT-MT800, centre lock disc mount, 180 mm // Shimano EM810, centre lock disc mount, 180 mm |
| Front brakes | Hydraulic disc brake from Shimano, RS600 brake lever, RS405 brake calliper // Hydraulic disc brake from Shimano, RS600 brake lever, RS405 brake calliper Shimano RT-MT800, centre lock disc mount, 180 mm // Shimano EM810, centre lock disc mount, 180 mm |
| Frame | Alpha Platinum aluminium, internal cable routing, battery removable by specialist dealer, luggage rack and mudguard eyelets, post mount disc brake mount, kickstand mount |
| Frame material | Aluminium |
| Drivetrain | Shimano CUES U6000 GS |
| Shift levers | Shimano U6000, 10-speed |
| Drivetrain type | Derailleur |
| Number of gears | 1 |
| Fork | FX Carbon, hidden fender mounts, flat mount disc, internal routing, 100x12 thru axle |
| Crankset | ProWheel, aluminium, narrow-wide chainring with 46 teeth, 170 mm crank arm length, ISIS gearing |
| Sprocket | Shimano CUES LG400, LINKGLIDE, 11-48 teeth, 10-speed |
| Drive | Shimano LG500 |
| Drive type | Chain |
| Handlebar | Bontrager, integrated handlebar/stem unit, 15 mm rise, 680 mm width, stem with 0 degree rise, 90 mm stem length |
| Grips | Bontrager Satellite Elite, aluminium clamp |
| Saddle | Bontrager Verse Comp, steel stays, 165 mm width |
| Seatpost | Bontrager Comp, 6061 aluminium, 31.6 mm, 8 mm offset, 400 mm length |
| Wheelset | Bontrager Paradigm, tubeless ready, 32-hole, 21 mm internal width, Presta valve Formula, aluminium, Center Lock disc mount, 100 x 12 mm thru axle Bontrager, aluminium, sealed bearing, Center Lock disc mount, 11-speed freehub from Shimano, 1 |
| Wheel size | 28"/622mm |
| Tires | Bontrager H2 Hard-Case Lite, wire bead core, 30 TPI, 700 x 40C |
| Pedals | Bontrager City Pedals |
| Front light | Spanninga GLOW XE for e-bike // Herrmans H-Black MR9-E |
| Mudguards | Trek FX+ 7 rear mudguard |
| Kickstand | Pletscher Comp 18 |
| Rack | MIK-compatible aluminium rear carrier |
| Motor manufacturer / model | TQ-HPR50, 50 Nm, 250 W max. continuous rated power, 300 W maximum power |
| Motor type | up to 25 km/h |
| Display | TQ LED display with Bluetooth and ANT+ connectivity |
| Battery | TQ 360 Wh |
| Battery capacity (Wh) | 360 |
| Battery mount | Gepäckträger |
| Charger | TQ charger, 4 A |
