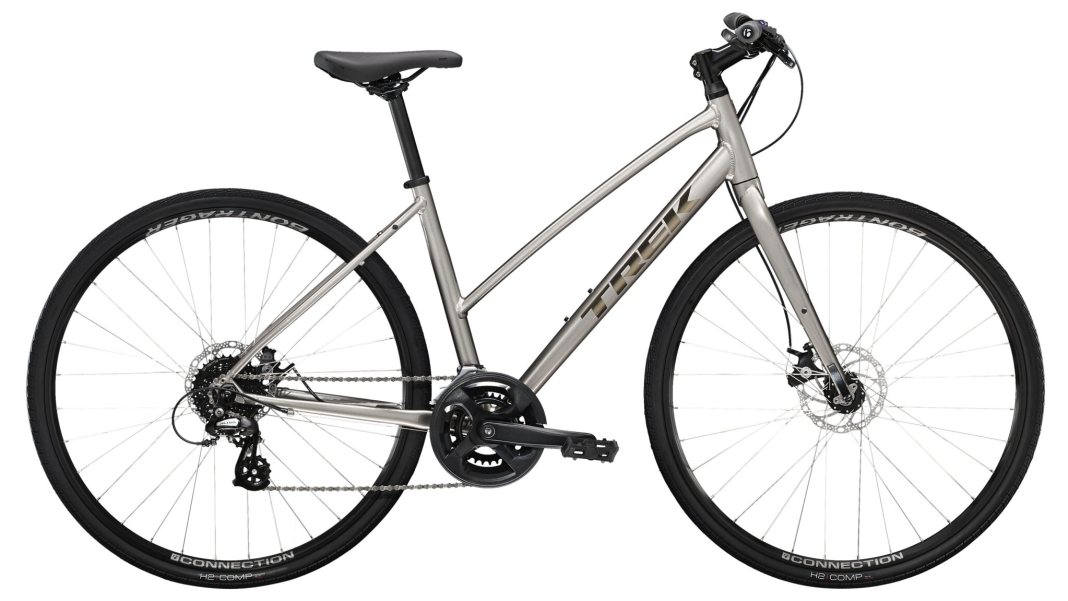

Trek FX 1 Disc Stagger

The "FX 1 Disc Stagger" model from Trek, released in 2023, is a versatile and robust bike available for €599. It features an Alpha Gold aluminium frame with a staggered top tube, which not only offers stability and lightness but also impresses with its DuoTrap S compatibility and internal cable routing. The frame is also fitted with a flat-mount disc brake mount, as well as rack and mudguard eyelets, and uses a 135 x 5 mm quick-release axle. The bike’s maximum load capacity is 136 kg, whilst the bike itself weighs 12 kg.

The FX 1 Disc Stagger’s braking system consists of Tektro MD-U310 mechanical disc brakes, fitted at both the front and rear with 160 mm discs. These brakes provide reliable stopping power in a variety of conditions. The gear system is controlled by Shimano EF500 shifters, with a 2-speed shifter at the front and an 8-speed shifter at the rear. The front derailleur is a Shimano Tourney TY710 with a clamp diameter of 34.9 mm and a dual-pull function.

The bike’s fork is made of steel and features a flat-mount disc brake mount as well as luggage rack eyelets. It has an axle-to-crown length of 405 mm and uses a 5 mm ThruSkew quick-release axle. The pedals are made from Wellgo nylon platform material. The crankset is made from forged aluminium with a chain guard and has a length of 170 mm. It is fitted with a sealed cartridge bearing with a width of 68 mm. The cassette is a Shimano HG31 CS-HG31 with an 11–32 tooth range and 8 speeds, whilst the drivetrain uses a KMC Z8.3 chain.

The handlebars are Bontrager Riser steel bars with a diameter of 25.4 mm, a width of 600 mm and a 30 mm rise. The grips are Bontrager Satellite, and the stem is made of aluminium with a clamp diameter of 25.4 mm, a 10-degree angle and a length of 90 mm. The headset is threadless and has a size of 1 1/8".

The tyres are Bontrager H2 Comp, measuring 700 x 35, fitted to a wheelset comprising Formula aluminium hubs and Bontrager Connection rims. The rims are hollow-section rims with 32 holes and an internal width of 20 mm. The hubs are Formula DC-20 at the front and Formula DC-22 at the rear, both made of aluminium with a 6-bolt disc mount and quick-release axles.

The saddle is a Bontrager Sport Women’s model, fitted to an aluminium seatpost with a diameter of 27.2 mm, a 12 mm offset and a length of 330 mm.

The bike has the following geometric dimensions: a seat tube length of 38 mm, a top tube length of 54 mm, a head tube angle of 70 degrees, a seat tube angle of 74 degrees, a head tube length of 13 mm, a chainstay length of 45 mm, a standover height of 71 mm and a wheelbase of 106 mm. The packaging dimensions are 20 mm wide, 74 mm high and 136 mm long. The reach is 38 mm and the stack is 55 mm.

The Trek FX 1 Disc Stagger thus offers a balanced blend of comfort, stability and functionality at an attractive price.
