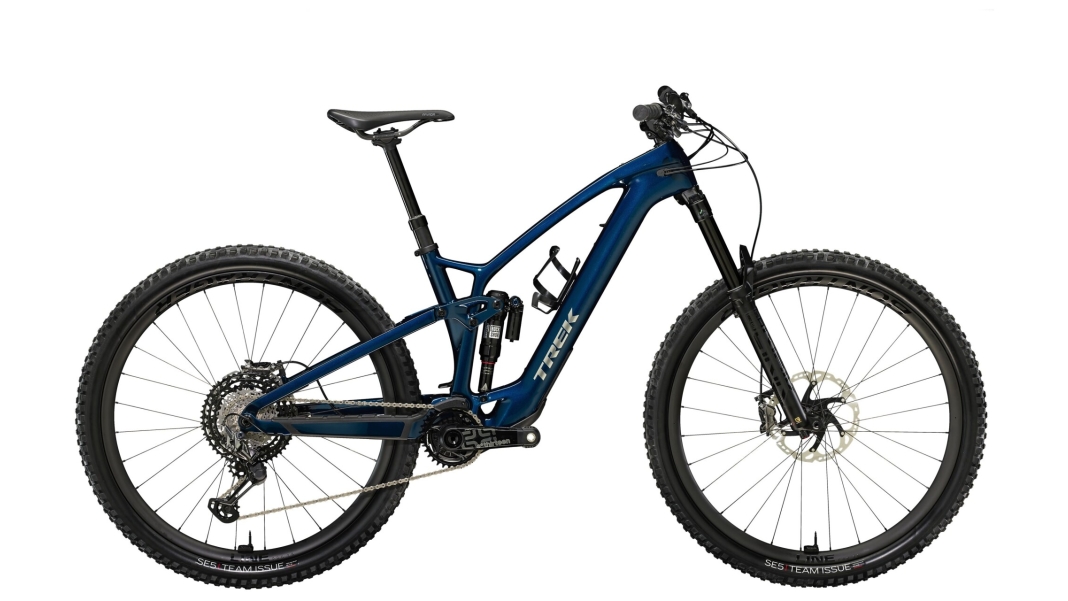

Trek Fuel EXe 9.9 XTR

The 2023 "Fuel EXe 9.9 XTR" from Trek is a state-of-the-art mountain bike that stands out thanks to its top-of-the-range components and innovative technology. The price for this model is 13,499 EUR. The frame is made from OCLV Mountain Carbon and features a removable battery and internal cable routing. The aluminium derailleur hanger and 34.9 mm seat tube diameter provide additional stability and flexibility. With 140 mm of travel and a Boost148 mount, the bike offers excellent suspension and stability on challenging trails.

The maximum load capacity is 136 kg, whilst the bike itself weighs 18 kg. The Shimano XTR M9120 hydraulic 4-piston disc brakes, fitted to both the front and rear, deliver first-class braking performance in combination with the Shimano RT86 rotors (180 mm front, 203 mm rear). The Shimano XTR M9100 shifter enables precise gear changes with its 12-speed system.

The RockShox Lyrik Ultimate fork, featuring AirWiz technology, a DebonAir spring and a Charger 3 RC2 damper, offers 150 mm of travel and ensures excellent damping and control. The ethirteen espec Race Carbon crankset, with a crank arm length of 165 mm, and the Shimano XTR M9101 cassette (10–51 t, 12-speed) complete the high-quality drivetrain.

The handlebars, an integrated OCLV Carbon handlebar/stem unit from Bontrager, are 820 mm wide with a rise of 27.5 mm, whilst the stem length is 45 mm. The grips are Bontrager XR Trail Elite with nylon clamps. The wheelset consists of Bontrager Line Pro 30 OCLV Mountain Carbon, which is tubeless-ready on both the front and rear and features a 6-hole disc mount.

The Bontrager Arvada Pro saddle, with carbon rails and a width of 138 mm, and the Bontrager Line Elite dropper seatpost, with a 200 mm travel and MaxFlow technology, provide additional comfort and adjustability.

The drivetrain is assisted by the TQ HPR50 motor, with a maximum continuous power output of 250 W and a maximum torque of 50 Nm. The battery has a capacity of 360 Wh, providing sufficient power for extended rides.

The bike’s geometry features a head tube angle of 65 degrees, a seat tube angle of 71 degrees, a seat tube length of 47 mm, a top tube length of 66 mm, a head tube length of 12 mm, a chainstay length of 44 mm and a standover height of 76 mm. The wheelbase measures 128 mm in total.

In summary, the Trek Fuel EXe 9.9 XTR offers a combination of advanced technology, robust design and top-class components, making it an outstanding mountain bike for discerning riders.
