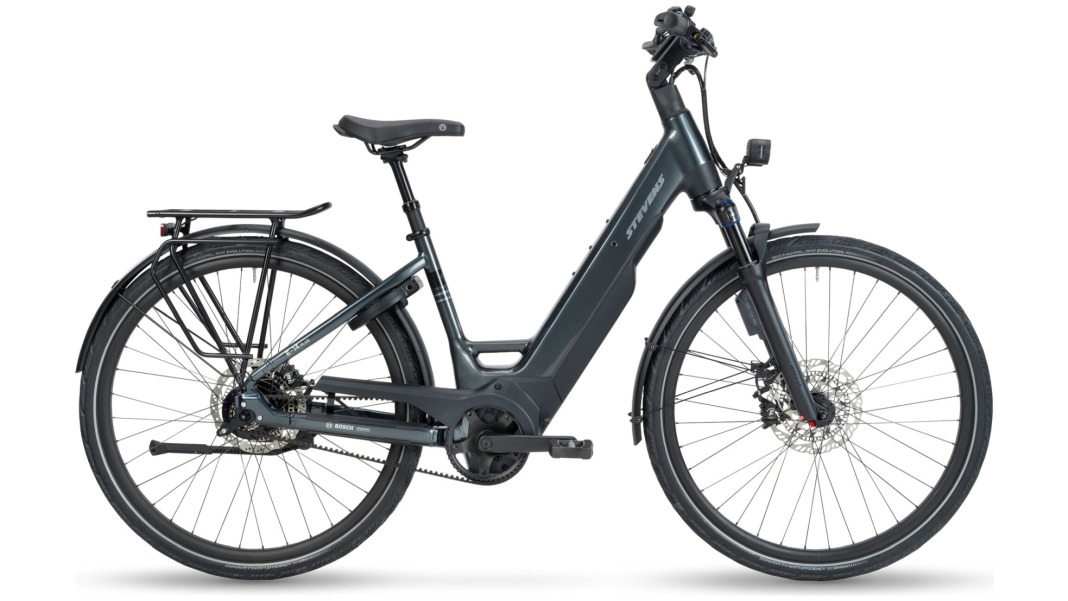

Stevens E-14 Plus Forma

E-14 Plus Forma
Model: E-14 Plus Forma
Model year: 2024
Price: 7.999,00 €
Category: Citybike
Frame material: Aluminium
Weight: 29 kg
Permissible total weight: 180 kg
Wheel size: 28"/622mm

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

The “E-14 Plus Forma” model from the “Stevens” brand, released in 2024, is a high-quality electric bike designed for discerning riders. Priced at 7,999 EUR, it offers a wide range of technical features and a robust build. The frame is made from 6061 aluminium, which not only gives the bike stability but also increases the maximum load capacity to 180 kg. The bike itself weighs 29 kg.

Braking performance is provided by Magura CMe5 brake levers combined with Magura MT C ABS brakes at both the front and rear. The brake discs have a diameter of 203 mm, with a Magura MDR-C disc fitted at the front and a Rohloff disc at the rear. Gear changes are controlled via a Rohloff Speedhub 500/14 CC DB with 14 gears, operated by the Rohloff E-14 shifter.

The SR Suntour Mobie34-Air LOR fork, with 80 mm of travel, ensures comfort on uneven terrain. A Supernova M99 Pro 2 front light and a Supernova M99 TL 3 MAX rear light are fitted to ensure optimum visibility in road traffic. The ATB Alu Pro Reflex pedals and the Oxygen E-Scorpo crankset contribute to the efficiency of the drivetrain, which is supported by a Gates CDX Centre Track Carbon Drive Belt.

The handlebars are Oxygen E-Scorpo, 700 mm wide, and the stem is an adjustable Oxygen Versa II. The headset is an Acros Blocklock Taper 1 1/8"–1 1/2". The rims are Oxygen RM-T25 Disc, measuring 25 x 622, and the tyres are Schwalbe Marathon Efficiency Evolution, measuring 50-622.

The Selle Royal ON Female saddle, mounted on an Oxygen E-Scorpo DPR-S-E seatpost, provides additional comfort. The bike is also fitted with SKS mudguards, a chain guard and a Pletscher Comp kickstand. The Racktime Supernova RTA luggage rack offers additional carrying capacity.

The drive is powered by a Bosch G4 Performance Line CX motor, which is supplied with energy by a Bosch PowerPack 800 battery with a capacity of 800 Wh. The system is controlled via the Bosch Kiox 500 display.

In summary, the “E-14 Plus Forma” from Stevens offers an impressive combination of performance, comfort and safety, ideal for riders looking for a reliable and powerful e-bike.

more...

Equipment

Rear brakesMagura MT C ABS
Front brakesMagura MT C ABS
Front brake discMagura MDR-C, 203 mm
Rear brake discRohloff, 203 mm
Brake leversMagura CMe5
FrameAluminium 6061
Frame materialAluminium
DrivetrainRohloff Speedhub 500/14 CC DB, 14-speed
Shift leversRohloff E-14 Shifter
Drivetrain typeHub gear
Number of gears14
ForkSR Suntour Mobie34-Air LOR
Fork travel (mm)80
Bottom bracketBosch
CranksetOxygen E-Scorpo
SprocketGates CDX R Centre Track Sprocket, 20 teeth
DriveGates CDX Centre Track Carbon Drive Belt
HeadsetAcros Blocklock Taper 1 1/8"-1 1/2"
HandlebarOxygen E-Scorpo 700 mm
StemOxygen Versa II, adjustable
SaddleSelle Royal ON Female
SeatpostOxygen E-Scorpo DPR-S-E
Wheel size28"/622mm
Front tireSchwalbe Marathon Efficiency Evolution, 50-622
Rear tireSchwalbe Marathon Efficiency Evolution, 50-622
Front hubStrummer M17-3
PedalsATB Alu Pro Reflex
Front lightSupernova M99 Pro 2
Rear lightSupernova M99 TL 3 MAX
MudguardsSKS mudguards
KickstandPletscher Comp bumper
RackRacktime Supernova RTA luggage carrier
Motor manufacturer / modelBosch G4 Performance Line CX
Motor typeup to 25 km/h
DisplayBosch Kiox 500
BatteryBosch PowerPack 800
Battery capacity (Wh)800
Battery mountSemi-Intube
Battery typeLithium-ion (Li-ion)
Battery voltage (V)36V
