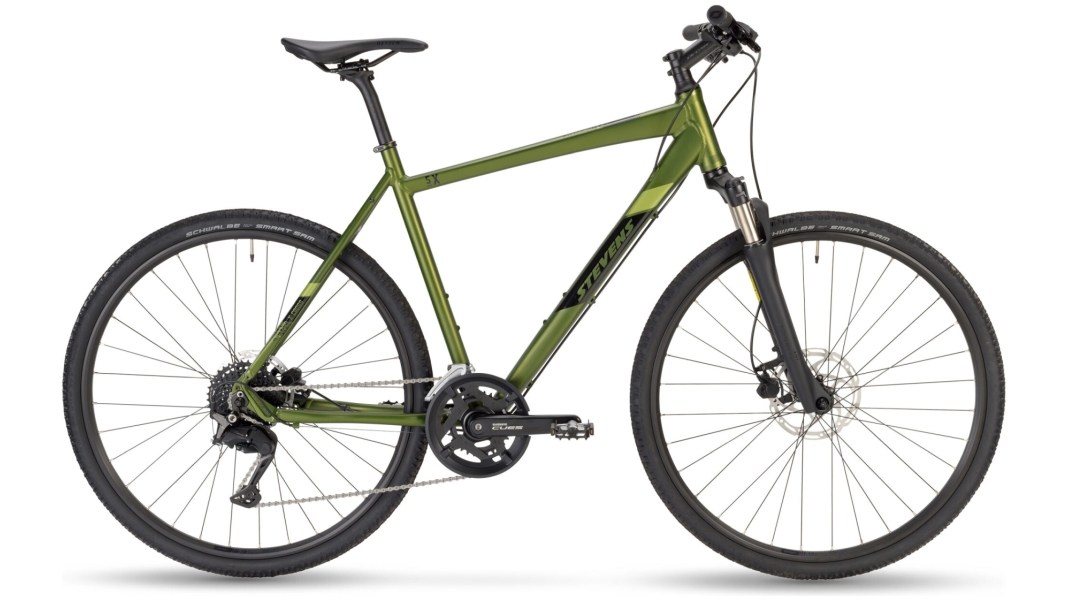

Stevens 5X HT

5X HT
Model: 5X HT
Model year: 2024
Price: 899,00 €
Category: Crossbike
Weight: 13 kg
Permissible total weight: 130 kg

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

The "5X HT" model from Stevens, released in 2024, is a versatile and robust bicycle that stands out for its high-quality components and solid build. Priced at 899 EUR, it offers excellent value for money for discerning cyclists.

The 5X HT’s frame is made from 6061 TB aluminium, ensuring high stability and a maximum load capacity of up to 130 kg. The bike itself weighs just 13 kg, making it light and manoeuvrable despite its robustness.

Braking performance is provided by Tektro HD-T275 disc brakes at the front and rear, fitted with Tektro TR180-35, 180 mm brake discs at the front and TR160-35, 160 mm brake discs at the rear. These brakes offer reliable and precise control in every riding situation.

The bike’s derailleur is a Shimano CUES U4000 Shadow RD-U3020-SGS with 18 speeds. The shift levers are also from the Shimano CUES U4000 range (SL-U4000-L and SL-U4000-9R) and allow for easy and efficient gear changes. The front derailleur is the Shimano CUES U4000 FD-U4000-L, which, together with the Shimano CUES U4000 crankset (46-30 teeth) and the Shimano CS-LG300-9 cassette (9-speed), ensures an optimal gear ratio.

The 5X HT’s fork is an SR Suntour NX1-Coil LO with 63 mm of travel, which effectively absorbs bumps on rough terrain. The pedals are ATB Pro Reflex, providing additional comfort and safety.

Other features include the Oxygen Driver handlebars (640 mm) and stem, as well as the STEVENS AH 1 1/8" headset. The rims are Oxygen RM-M19 (19 x 622), fitted with Schwalbe Smart Sam Active-Line tyres (42-622) for excellent grip and durability. The hubs are Formula CL-51 at the front and Formula CL-52 at the rear. The saddle is an Oxygen Havoc, mounted on an Oxygen Driver seatpost, which provides additional comfort on longer rides.

Overall, the Stevens 5X HT is a well-designed and well-equipped bike, suitable for both everyday use and sporty rides. It combines high-quality components with a robust build, making it an excellent choice in its price range.

more...

Equipment

Rear brakesTektro HD-T275
Front brakesTektro HD-T275
Front brake discTektro TR180-35, 180 mm
Rear brake discTR160-35, 160 mm
Brake leversTektro HD-T275
FrameAluminium 6061 TB
DrivetrainShimano CUES U4000 Shadow RD-U3020-SGS, 18-speed
Shift leversShimano CUES U4000 SL-U4000-L / Shimano CUES U4000 SL-U4000-9R
Front derailleurShimano CUES U4000 FD-U4000-L
Number of gears18
ForkSR Suntour NX1-Coil LO
Fork travel (mm)63
Bottom bracketBSA 73 mm
CranksetShimano CUES U4000, 46-30 t.
SprocketShimano CS-LG300-9, 9-speed
HeadsetSTEVENS AH 1 1/8"
HandlebarOxygen Driver 640 mm
StemOxygen Driver
SaddleOxygen Havoc
SeatpostOxygen Driver
Front tireSchwalbe Smart Sam Active-Line, 42-622
Rear tireSchwalbe Smart Sam Active-Line, 42-622
Front hubFormula CL-51
Rear hubFormula CL-52
PedalsATB Pro Reflex
