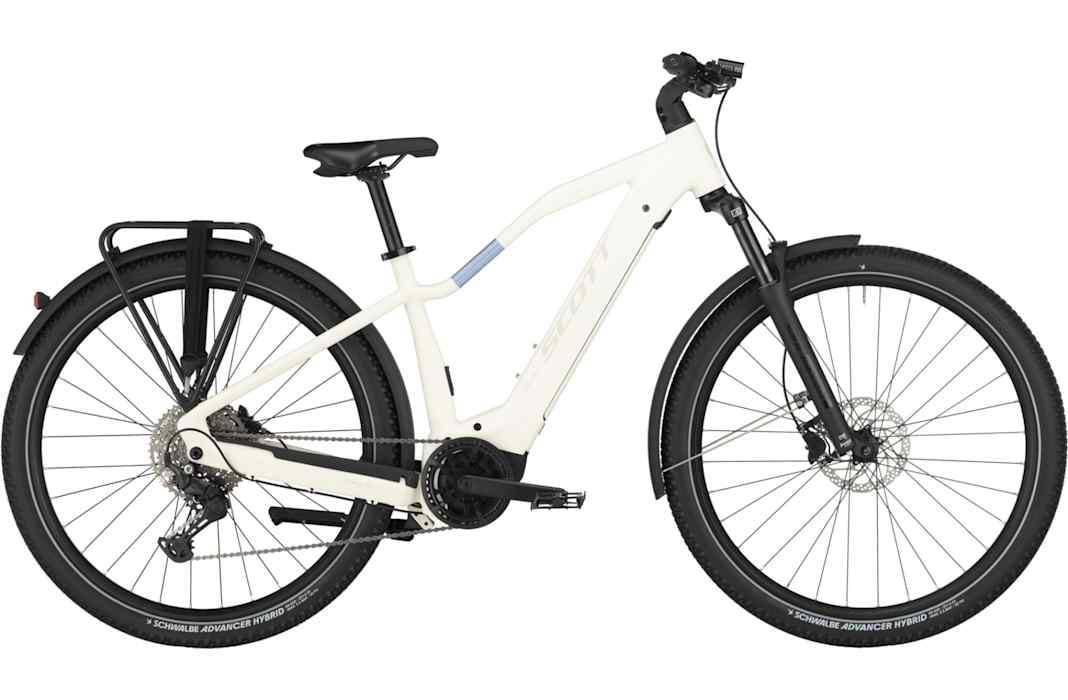

Scott Axis 40
2 Images
Model: Axis 40
Model year: 2025
Price: 3.599,00 €
Category: SUV
Frame material: Aluminium
Weight: 27 kg
Permissible total weight: 128 kg
Wheel size: 29"/622mm
Tests & Reviews
Equipment
| Rear brakes | Shimano BR-MT200 Disc Brakes |
| Front brakes | Shimano BR-MT200 Disc Brakes |
| Front brake disc | Shimano SM-RT30 CL 180mm |
| Rear brake disc | Shimano RT-EM300 CL 180mm |
| Frame | Alloy S–XL = 29" / 6061 alloy custom butted tubing, bottom-exit battery, internal cable routing |
| Frame material | Aluminium |
| Drivetrain | Shimano CUES RD-U6000GS 10-speed |
| Shift levers | Shimano SL-U600010RC |
| Drivetrain type | Derailleur |
| Number of gears | 10 |
| Fork | SR Suntour XCM34 Coil / Tapered / 15x110 bolt axle / 120mm travel |
| Fork travel (mm) | 120 |
| Crankset | Miranda, 170 mm |
| Sprocket | Shimano CS-LG40010 11-48T 10-speed |
| Drive | Shimano LG500 |
| Drive type | Chain |
| Headset | Acros / 1.5" – 1.5", semi-integrated, OD 50/61 mm / ID 44/55 mm |
| Handlebar | Syncros 3.0 720mm / 31.8mm / 9° backsweep / 12mm rise |
| Grips | Syncros Lock On Grip |
| Stem | Syncros with front light mount |
| Saddle | Syncros Capilano |
| Seatpost | Syncros 3.0 / 31.6 mm |
| Wheel size | 29"/622mm |
| Front tire | Schwalbe Advancer 60-622 Wired |
| Rear tire | Schwalbe Advancer 60-622 Wired |
| Front hub | Shimano HBTC50015BB / 15x110mm |
| Rear hub | Shimano FHTC500HMBB / 148x12mm |
| Spokes | Stainless Black |
| Pedals | VP VPE-506 |
| Front light | Lezyne Hecto E65 |
| Rear light | Lezyne Tail Light |
| Mudguards | Curana alloy profile |
| Kickstand | Ursus |
| Rack | Racktime SnapIt 2.0 25 kg |
| Motor type | up to 25 km/h |
| Display | Bosch Purion 200 |
| Battery | PowerTube 625Wh |
| Battery capacity (Wh) | 625 |
| Battery mount | Intube |
| Battery type | Lithium-ion (Li-ion) |
| Battery voltage (V) | 36V |
| Charger | 2A Charger |
