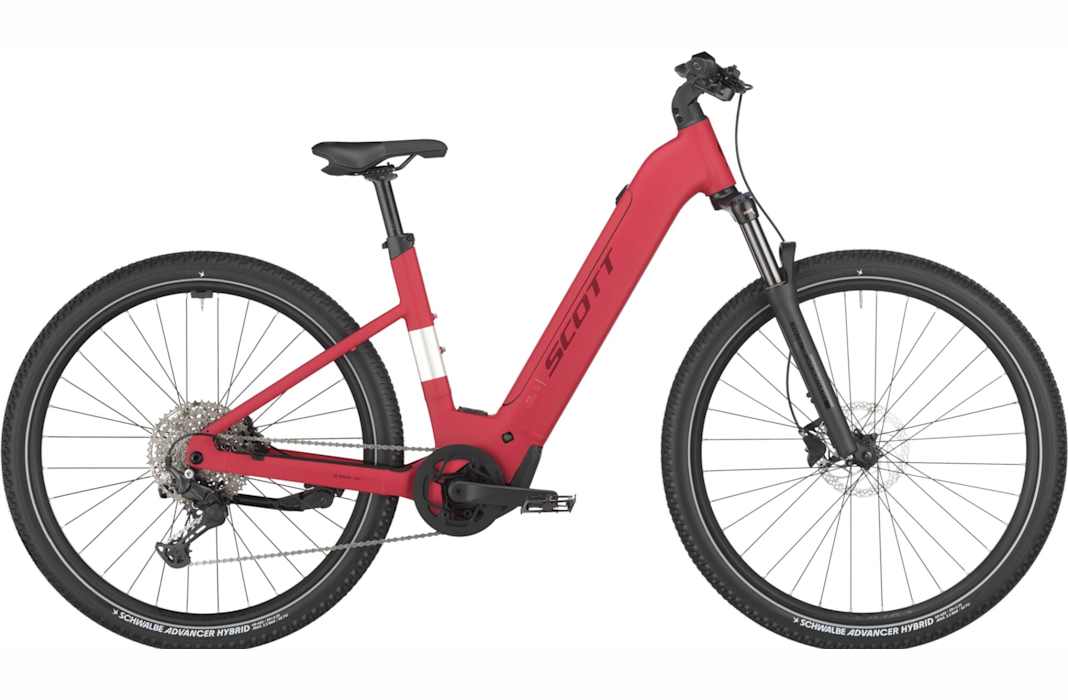

Scott Axis 30 Wave
2 Images
Model: Axis 30 Wave
Model year: 2025
Price: 3.699,00 €
Category: SUV
Frame material: Aluminium
Weight: 28 kg
Permissible total weight: 128 kg
Wheel size: 29"/622mm
Tests & Reviews
Equipment
| Rear brakes | Shimano BR-MT200 Disc Brakes |
| Front brakes | Shimano BR-MT200 Disc Brakes |
| Front brake disc | Shimano SM-RT30 CL 180mm |
| Rear brake disc | Shimano SM-RT30 CL 180mm |
| Frame | Alloy S–XL = 29" / 6061 alloy custom butted tubing, top-extraction battery, UDH interface / 12x148mm with 52mm chainline |
| Frame material | Aluminium |
| Drivetrain | Shimano CUES RD-U6000GS 11-speed |
| Shift levers | Shimano SL-U600011RC |
| Drivetrain type | Derailleur |
| Number of gears | 11 |
| Fork | SR Suntour XCM34 LO Coil / Tapered / 15x110 bolt axle / Lockout / 120mm travel |
| Fork travel (mm) | 120 |
| Crankset | FSA CK-220 165mm |
| Sprocket | Shimano CS-LG40011 11-50T 11-speed |
| Drive | Shimano LG500 |
| Drive type | Chain |
| Headset | Acros / 1.5" – 1.5", semi-integrated, OD 50/61 mm / ID 44/55 mm |
| Handlebar | Syncros 3.0 720mm / 31.8mm / 9° backsweep / 12mm rise |
| Grips | Syncros Lock On Grip |
| Stem | Syncros |
| Saddle | Syncros Capilano |
| Seatpost | Syncros M3.0 / 31.6 |
| Wheel size | 29"/622mm |
| Front tire | Schwalbe Advancer 60-622 Wired |
| Rear tire | Schwalbe Advancer 60-622 Wired |
| Front hub | Shimano HB-TC50015BB CL / 15x110mm |
| Rear hub | Shimano FH-TC500HMBB CL / Boost 12x148mm |
| Spokes | Black Spokes |
| Pedals | VP VPE-506 |
| Kickstand | Ursus |
| Motor manufacturer / model | Bosch Performance CX, EU: 25 km/h |
| Motor type | up to 25 km/h |
| Display | Bosch Purion 200 |
| Battery | PowerTube 600Wh |
| Battery capacity (Wh) | 600 |
| Battery mount | Intube |
| Battery type | Lithium-ion (Li-ion) |
| Battery voltage (V) | 36V |
| Charger | 2A Charger |
