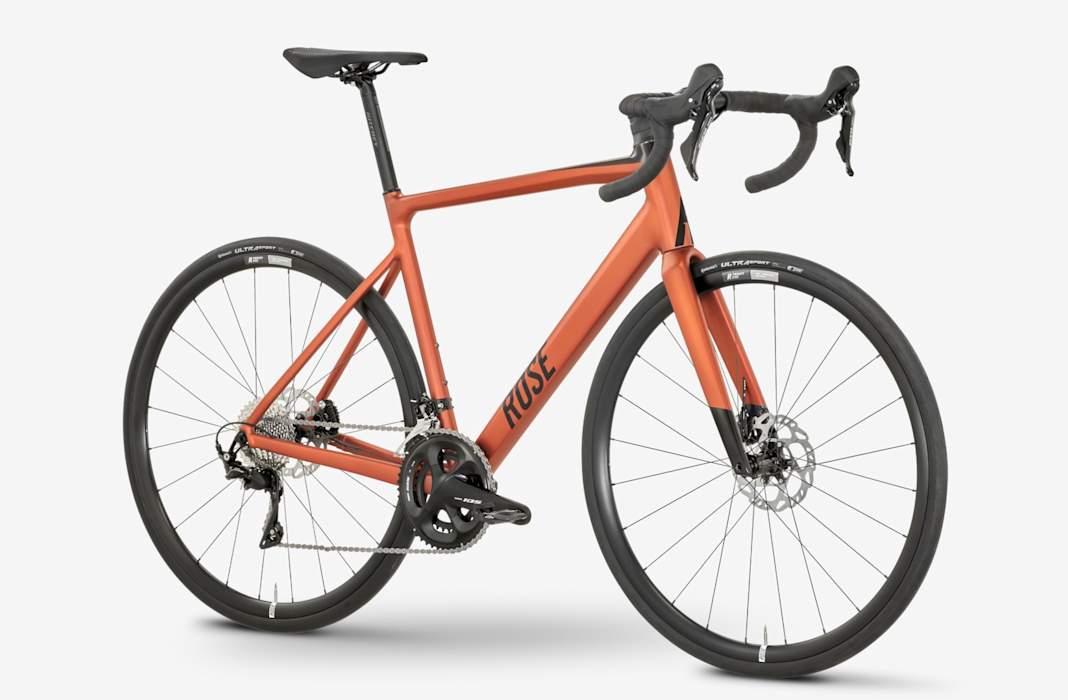

Rose REVEAL AL 105
Note: This text is a service for our readers and was automatically generated from the data in our bike database.
The "REVEAL AL 105" model from Rose is a versatile road bike that impresses with its technical specifications and value for money. Priced at 1849 EUR, this bike offers solid specifications and high-quality components. The frame of the REVEAL AL 105 is made of aluminium and comes in matt black. The frame height is 45 cm and it is designed for 27.5-inch wheels. The bike’s total weight is 8.9 kg, making it a lightweight and agile ride.
The brakes are Shimano 105 ST-R7025 / BR-R7070 in black, which ensure reliable braking performance. The derailleur is also from Shimano 105 and, with the RD7000GS, offers an 11-speed drivetrain which, in combination with the Shimano CS-HG700 cassette (11-34), provides a wide range of gears. The front derailleur is the Shimano 105 FD-7000-F, also in black.
The fork on the REVEAL AL 105 has been specially developed for this model and has a steerer tube length of 354 mm. The brake line is routed externally, which makes maintenance easier. Pedals are not included and must be purchased separately. The crankset is the Shimano 105 FC7000 with a 50/34-tooth configuration and a length of 170 mm.
The handlebars are Ritchey Road Comp Streem II in matt black, with a width of 40 cm. The handlebar tape is ROSE Gel-Comfort in black, which provides additional comfort. The stem is the ROSE ALR in sand black, with a length of 80 mm.
The tyres are Continental Ultra Sport III Performance in size 650x28B, fitted to a ROSE R25 wheelset. The wheels feature Newmen hubs, an internal rim width of 19 mm, 24 spokes and weigh approx. 1590 g in size 700c. They are TLR (Tubeless Ready) and designed for 27.5-inch wheels.
The saddle is a Rose Edition by Selle Italia in black, fitted to a Ritchey WTB seatpost with a length of 350 mm and a diameter of 27.2 mm.
The frame’s geometry offers a good balance between comfort and performance. The reach is 365 mm and the stack is 493 mm. The seat tube length is 420 mm and the top tube length is 497 mm. The head tube angle is 71 degrees and the seat tube angle is 75 degrees. The head tube length is 120 mm, the chainstay length is 409 mm and the standover height is 698 mm. The bike’s wheelbase is 968 mm.
In summary, the “REVEAL AL 105” from Rose offers a well-thought-out all-round package that is suitable for both ambitious beginners and experienced riders looking for a reliable and high-performance road bike.
Tests & Reviews
Equipment
| Brakes | Shimano 105, ST-R7025 / BR-R7070, black |
| Frame | REVEAL AL, matt black 45cm-27.5 |
| Frame material | Aluminium |
| Drivetrain | Shimano 105, RD7000GS, 11-speed, black |
| Front derailleur | Shimano 105, FD-7000-F black |
| Fork | REVEAL AL (fork differs from illustration, brake line routed externally), matt black |
| Crankset | Shimano 105, FC7000 50/34, black 170mm |
| Sprocket | Shimano CS-HG700, 11-speed, 11-34 |
| Handlebar | Ritchey Road Comp Streem II, black/matt 40cm |
| Stem | ROSE ALR, black sand 80mm |
| Saddle | Rose Edition by Selle Italia, black |
| Seatpost | Ritchey WTB, 350mm, black 27.2mm |
| Wheelset | ROSE R25 | Newmen hubs | inner rim width 19mm | 24 spokes | approx. 1590g at 700c | TLR 27.5" |
| Tires | Continental Ultra Sport III Performance, black 650x28B |
| Pedals | Pedals are not included in the scope of delivery and must be ordered separately |
