Rose REVEAL 06 Force AXS
Note: This text is a service for our readers and was automatically generated from the data in our bike database.

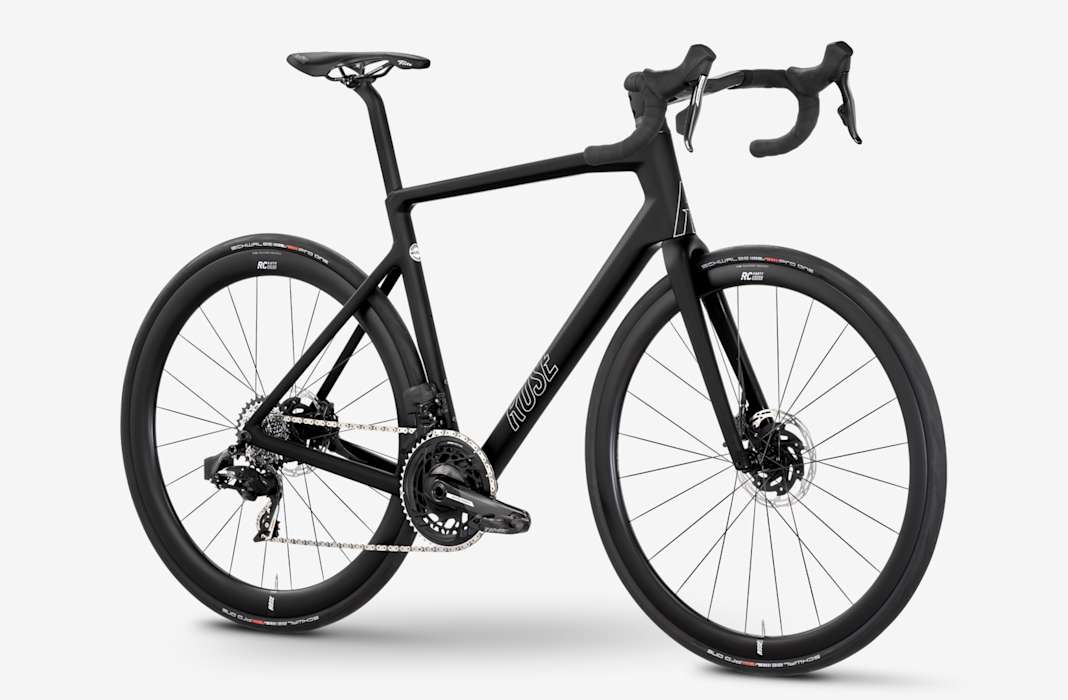

The "REVEAL 06 Force AXS" model from Rose is a high-quality road bike that stands out thanks to its first-class technical specifications and features. Priced at 5299 EUR, this bike offers an impressive combination of performance and comfort.
The frame of the “REVEAL 06 Force AXS” is made of carbon and weighs just 920g. The matt carbon finish gives the bike an elegant and modern look. The bike’s total weight is just 7.5 kg, making it one of the lighter models in its class.
The SRAM Force AXS D2 in black is used for the rear derailleur and front derailleur, ensuring precise and reliable gear changes. The crankset is also from SRAM and is designated Force D2 DUB, with a 46/33T gear ratio and a length of 170 mm. The cassette is a SRAM XG 1270 with a 10–33T range.
The bike’s fork is also made of carbon and weighs 380g, with a steerer tube length of 384 mm. The pedals are not included and must be purchased separately.
The handlebar tape is the ROSE Gel-Comfort in black, which provides extra comfort on long rides. The stem is the ROSE Endurance One-Piece Carbon Cockpit, measuring 90 mm/40 cm, ensuring optimum ergonomics and control.
The tyres are Schwalbe PRO ONE Evo Super Race in black, sized 700x30C, which ensure excellent road holding and speed. The wheelset consists of ROSE RC Fifty Disc wheels, also made of carbon, with a rim height of 47 mm and 24 spoke holes. The wheel size is 28"/622 mm.
The saddle is a Flite Flow with a Manganese rail in black, which ensures a high level of comfort. The seatpost is by ROSE and has an offset of 8 mm and a length of 400 mm.
The geometry of the “REVEAL 06 Force AXS” is designed to offer both comfort and efficiency. The reach is 368 mm, whilst the stack is 536 mm. The seat tube length is 450 mm and the top tube length is 512 mm. The head tube angle is 71.5 degrees and the seat tube angle is 75 degrees. The head tube length is 120 mm and the chainstay length is 410 mm. The standover height is 750 mm and the wheelbase is 976 mm.
Overall, the “REVEAL 06 Force AXS” from Rose offers excellent specifications and high-quality components, making it an outstanding choice for ambitious road cyclists.
Tests & Reviews
Equipment
| Frame | Frame weight from 920g, matt carbon 50cm |
| Frame material | Carbon |
| Drivetrain | SRAM Force AXS D2, black |
| Front derailleur | SRAM Force AXS D2, black |
| Fork | Fork weight from 380g Matt carbon |
| Crankset | SRAM Force D2 DUB 46/33T. black shiny 170mm |
| Sprocket | SRAM XG 1270 10-33 |
| Stem | ROSE Endurance One-Piece Carbon Cockpit, 90mm/40cm |
| Saddle | Flite Flow Manganese Rail, black |
| Seatpost | ROSE, 8 mm offset 400mm |
| Wheelset | ROSE RC Fifty Disc, carbon, 47mm, carbon 24 hole |
| Wheel size | 28"/622mm |
| Tires | Schwalbe PRO ONE Evo, supe race, black 700x30C |
| Pedals | Pedals are not included in the scope of delivery and must be ordered separately |
