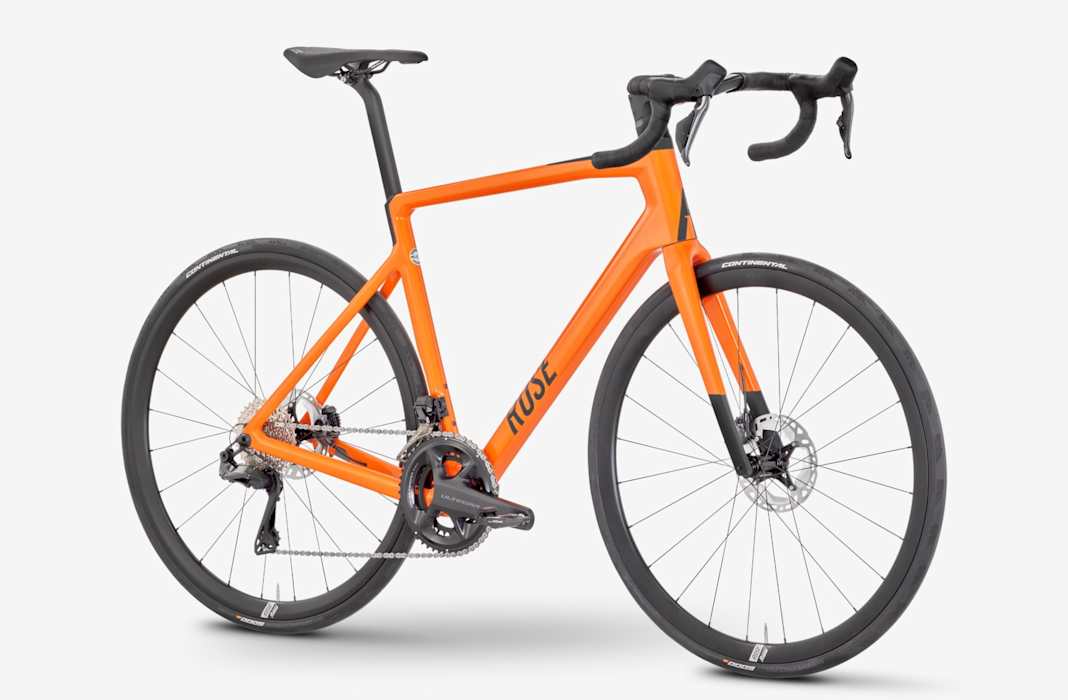

Rose REVEAL 04 Ultegra Di2
Note: This text is a service for our readers and was automatically generated from the data in our bike database.
The “REVEAL 04 Ultegra Di2” model from Rose is a high-quality road bike that stands out for its advanced technology and precise workmanship. The price for this model is 3599 EUR. The bike’s frame is made of carbon and weighs from 1020 grams. It is available in orange and has a frame height of 50 cm. The bike’s total weight is 7.6 kg, making it a light and agile companion on the road.
The brakes and derailleurs are from the Shimano Ultegra Di2 series, which is renowned for its reliability and performance. The brakes are the ST-R8170 / BR-R8170 model, whilst the derailleur is a 12-speed RD-R8150 system. The front derailleur is also a 12-speed FD-R8150 model. The bike’s fork, the REVEAL FOUR DISC, weighs from 380 grams and has a steerer tube length of 384 mm. It is also finished in orange.
Pedals are not included and must be ordered separately. The crankset is a Shimano Ultegra FC-R8100 with 50-34T chainrings and a length of 170 mm. The cassette is a Shimano Ultegra CS-R8100, 12-speed, with a range of 11–34. The handlebar tape is the ROSE Gel-Comfort in black, which provides extra comfort. The stem is a ROSE Endurance One-Piece Carbon Cockpit measuring 90 mm/40 cm.
The tyres are Continental Grand Prix 5000 in black, sized 700x30C. The wheelset consists of ROSE R30 Light, matt black anodised, with 24 holes and a wheel size of 28"/622 mm. The saddle is the Rose Edition by Selle Italia in black, and the seatpost is a ROSE with an 8 mm offset and a length of 400 mm.
The frame geometry is well thought out and offers a comfortable riding position. The reach is 368 mm, the stack 536 mm, the seat tube length 450 mm and the top tube length 512 mm. The head tube angle is 71.5 degrees and the seat tube angle is 75 degrees. The head tube length is 120 mm, the chainstay length is 410 mm, the standover height is 750 mm and the wheelbase is 976 mm.
Overall, the “REVEAL 04 Ultegra Di2” from Rose offers an impressive combination of lightness, stability and advanced technology, making it an excellent choice for ambitious road cyclists.
Tests & Reviews
Equipment
| Brakes | Shimano Ultegra Di2, ST-R8170 / BR-R8170 |
| Frame | REVEAL FOUR DISC, frame weight from 1020g, orange utan 50cm |
| Frame material | Carbon |
| Drivetrain | Shimano Ultegra Di2, RD-R8150, 12-speed |
| Front derailleur | Shimano Ultegra Di2, FD-R8150, 12-speed, |
| Fork | REVEAL FOUR DISC, fork weight from 380g, orange utan |
| Crankset | Shimano Ultegra, FC-R8100, 50-34T, 170mm |
| Sprocket | Shimano Ultegra, CS-R8100, 12-speed, 11-34 |
| Stem | ROSE Endurance One-Piece Carbon Cockpit, 90mm/40cm |
| Saddle | Rose Edition by Selle Italia, black |
| Seatpost | ROSE, 8 mm offset 400mm |
| Wheelset | ROSE R30 Light, anodised matt black 24 hole |
| Wheel size | 28"/622mm |
| Tires | Continental Grand Prix 5000, black/black 700x30C |
| Pedals | Pedals are not included in the scope of delivery and must be ordered separately |
