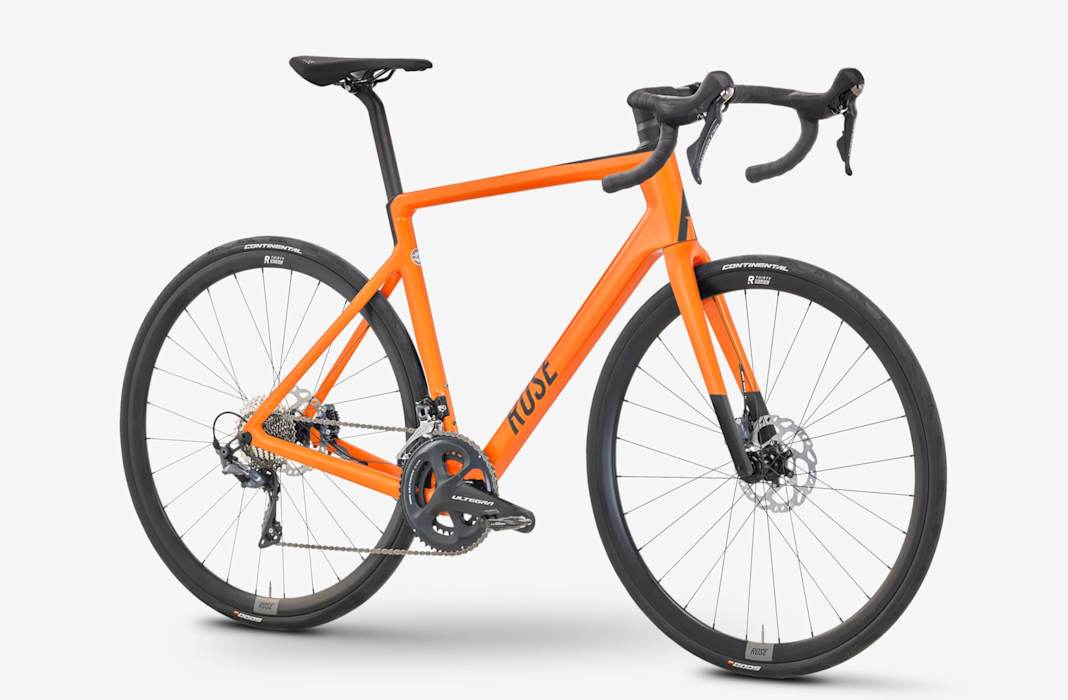

Rose REVEAL 04 Ultegra
Note: This text is a service for our readers and was automatically generated from the data in our bike database.
The "REVEAL 04 Ultegra" model from the Rose brand is a high-quality road bike designed for demanding riders. The price for this model is EUR 2599. The frame, which is made of carbon, contributes significantly to the lightness of the bike, with the frame weight starting at 1020 g. The bike weighs a total of 8 kg. The bike weighs a total of 8 kg.
The brakes consist of Shimano Ultegra components with the designation ST-R8020 / BR-R8070 in black. The gears and front derailleur are also from the Shimano Ultegra series, specifically the models RD-R8000 for the gears and FD-R8000 for the front derailleur. The crankset is a Shimano Ultegra FC-R8000 with a gradation of 50/34 and a length of 172.5 mm. The sprocket is a Shimano CS-HG700 with 11-speed and a gradation of 11-34 teeth.
The fork of the "REVEAL 04 Ultegra" is also made of carbon and is labelled REVEAL FOUR DISC, with a weight from 380 g and a steerer tube length of 384 mm. Pedals are not included in the scope of delivery and must be ordered separately.
The handlebar is a Ritchey Road Comp Streem II in black/matt with a width of 42 cm. The handlebar tape is the ROSE Gel-Comfort in black, which provides additional comfort. The stem is the ROSE Square anodised black with a length of 100 mm.
The tyres on the model are Continental Grand Prix 5000 in size 700x30C, mounted on a ROSE R Thirty Disc wheelset with 28 holes and a wheel size of 28"/622 mm. The saddle is a Rose Edition by Selle Italia in black, and the seatpost is a ROSE D-Shape carbon seatpost with a setback of 25 mm and a length of 490 mm.
The geometry of the bike comprises a reach of 368 mm, a stack of 536 mm, a seat tube length of 450 mm and a top tube length of 512 mm. The head tube angle is 71.5 degrees, the seat tube angle is 75 degrees. The head tube length is 120 mm, the chainstay length is 410 mm, the standover height is 750 mm and the wheelbase is 976 mm.
All in all, the "REVEAL 04 Ultegra" offers a well thought-out combination of high-quality components and precise geometry that ensures optimum riding performance.
Tests & Reviews
Equipment
| Brakes | HR: Shimano Ultegra, ST-R8020 / BR-R8070 black |
| Frame | REVEAL FOUR DISC, frame weight from 1020g, orange utan 57cm |
| Frame material | Carbon |
| Drivetrain | Shimano Ultegra RD-R8000 (28-34T) |
| Front derailleur | Shimano Ultegra FD-R8000 |
| Fork | REVEAL FOUR DISC, fork weight from 380g, orange utan |
| Crankset | Shimano Ultegra, FC-R8000, 50/34, 172.5mm |
| Sprocket | Shimano CS-HG700, 11-speed, 11-34 |
| Handlebar | Ritchey Road Comp Streem II, black/matt 42cm |
| Stem | ROSE Square anodised black 100mm |
| Saddle | Rose Edition by Selle Italia, black |
| Seatpost | ROSE D-Shape carbon seatpost I 25 mm setback I 490 mm length 490mm |
| Wheelset | ROSE R Thirty Disc, 28 hole |
| Wheel size | 28"/622mm |
| Tires | Continental Grand Prix 5000, black/black 700x30C |
| Pedals | Pedals are not included in the scope of delivery and must be ordered separately |
