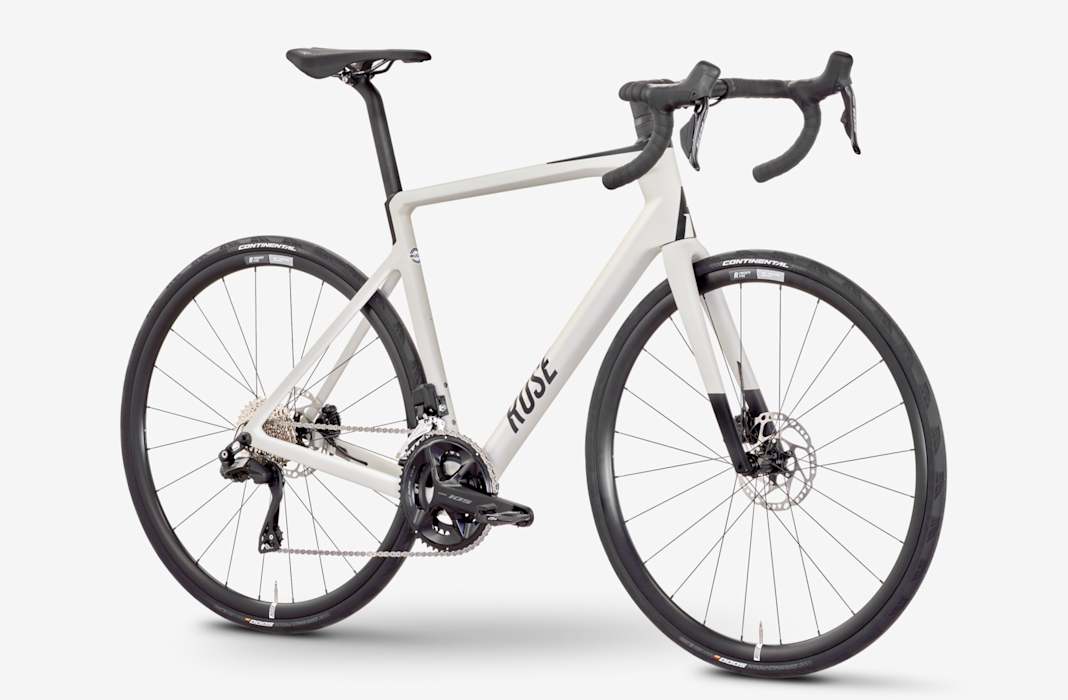

Rose REVEAL 04 105 Di2
Note: This text is a service for our readers and was automatically generated from the data in our bike database.
The "REVEAL 04 105 Di2" model from the Rose brand is a high-quality road bike designed for demanding riders. With a price tag of EUR 2999, it offers a wide range of technical features and equipment details that make it an attractive proposition.
The frame of the REVEAL 04 105 Di2 is made of carbon and weighs from 1020g. It is available in the colour Orange Utan and has a frame height of 59 cm. The fork, also made of carbon, weighs from 380g and has a steerer tube length of 384 mm. The total weight of the bike is 8.1 kg.
The bike's gears are equipped with the SHIMANO 105 RD-R7150, a 12-speed system that enables precise and reliable gear changes. The front derailleur is the Shimano FD-R7150, also from the 105 series and also 12-speed. The crankset consists of the Shimano FC-R7100, also from the 105 series, with a 50-34T sprocket and a length of 172.5 mm. The sprocket is a Shimano CSR7100, 12-speed, with a gradation of 11-34.
The cockpit of the bike consists of a Ritchey Road Comp Streem II handlebar in black/matt with a width of 42 cm and a ROSE Gel-Comfort handlebar tape in black. The stem is the ROSE Square anodised black with a length of 110 mm.
Riding comfort is provided by a Rose Edition by Selle Italia saddle in black, mounted on a ROSE D-Shape carbon seatpost with a setback of 25 mm and a length of 490 mm. The tyres are Continental Grand Prix 5000 in size 700x30C, mounted on a ROSE R25 wheelset with Newmen hubs, an inner rim width of 19 mm and 24 spokes. The wheelset weighs approx. 1590g at 700c and is tubeless ready (TLR) for 29".
The geometry of the frame offers a balanced combination of comfort and performance. The reach is 368 mm, the stack is 536 mm. The seat tube length is 450 mm, while the top tube length is 512 mm. The head tube angle is 71.5 degrees, the seat tube angle is 75 degrees. The head tube length is 120 mm, the chainstay length is 410 mm and the standover height is 750 mm. The wheelbase of the bike is 976 mm in total.
Please note that pedals are not included and must be ordered separately.
Tests & Reviews
Equipment
| Frame | REVEAL FOUR DISC, frame weight from 1020g, orange utan 59cm |
| Frame material | Carbon |
| Drivetrain | SHIMANO 105 RD-R7150, 12-speed, |
| Front derailleur | Shimano FD-R7150, 105, 12-speed |
| Fork | REVEAL FOUR DISC, fork weight from 380g, orange utan |
| Crankset | Shimano FC-R7100, 105, 50-34T, 12-speed, 172.5mm |
| Sprocket | Shimano CSR7100, 105, 12-SPEED, 11-34 |
| Handlebar | Ritchey Road Comp Streem II, black/matt 42cm |
| Stem | ROSE Square anodised black 110mm |
| Saddle | Rose Edition by Selle Italia, black |
| Seatpost | ROSE D-Shape carbon seatpost I 25 mm setback I 490 mm length 490mm |
| Wheelset | ROSE R25 | Newmen hubs | inner rim width 19mm | 24 spokes | approx. 1590g at 700c | TLR 29" |
| Wheel size | 28"/622mm |
| Tires | Continental Grand Prix 5000, black/black 700x30C |
| Pedals | Pedals are not included in the scope of delivery and must be ordered separately |
