Brakes	Tektro Orion, HD-M745, hydraulic disc, 4-piston
Frame	Alloy 6061, Enduro, 160mm, integrated battery, 12x148mm
Drivetrain	SRAM SX Eagle, Single Click, 12-speed
Shift levers	SRAM SX Eagle, Single Click, 12-speed
Fork	Rock Shox ZEB, Charger R, 160 mm, tapered
Rear shock	Rock Shox Super Deluxe Select+ RT, 230x65mm
Crankset	SRAM Eagle, Alloy, X-Sync, 38T
Sprocket	SRAM PG-1210, 11-50T, 12-speed
Drive	Sram SX Eagle
Headset	ZS44/28.8 / ZS56/39.8
Handlebar	R Raymon 35, 760 mm, sweep: 9°, rise: 20 mm
Grips	R Raymon MTB, Lock-On
Stem	R Raymon 35, 40 mm, 0°
Saddle	R Raymon MTB
Seatpost	R Raymon 31.6, dropper post, S: 420 mm; M/L/XL: 447 mm
Rims	Mach1-Trucky30, Eyelets, Tubeless
Tires	front: Schwalbe Magic Mary, SnakeSkin, 65-622, 29x2.60, rear: Schwalbe Hans Dampf Snakeskin, tubeless, 65-584, 27.5x2.60
Pedals	R Raymon, Alloy
Motor manufacturer / model	Yamaha PW-X2, 250W, 80Nm
Display	Yamaha Display A, LCD display
Battery	Simplo TPS, 630Wh, 36V, 17.5Ah
Battery capacity (Wh)	630

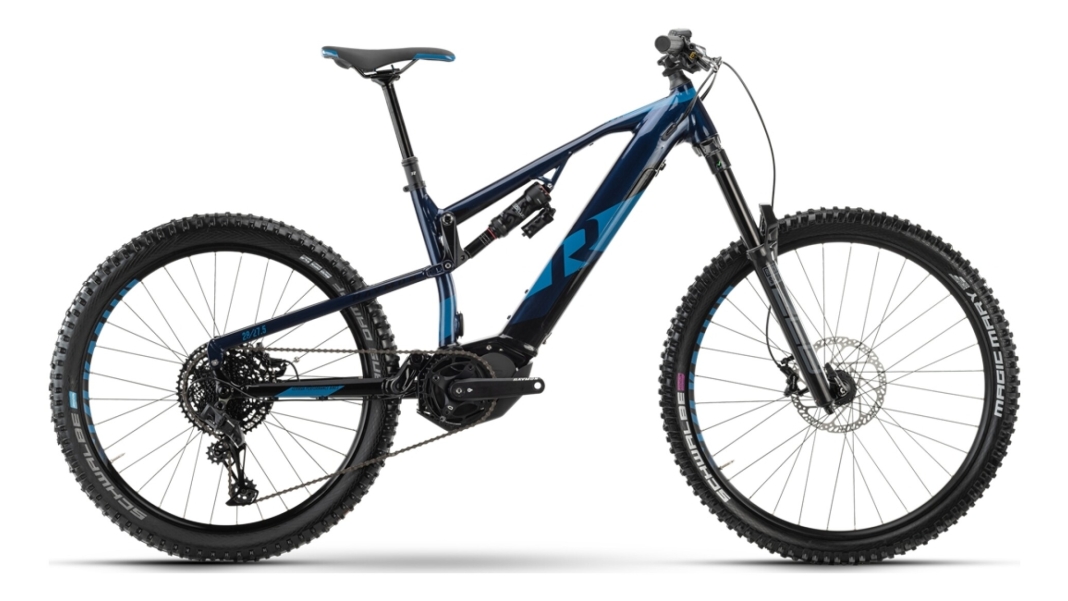

R Raymon TrailRay E 9.0
