Rear brakes	SRAM G2 R, 4-piston, hydraulic disc brake
Front brakes	SRAM G2 R, 4-piston, hydraulic disc brake
Brakes	Front: SRAM G2 R, 4-piston, hydraulic disc brake; Rear: SRAM G2 R, 4-piston, hydraulic disc brake
Front brake disc	SRAM Centreline, 200 mm, 6-hole
Rear brake disc	SRAM Centreline, 200 mm, 6-hole
Frame	29", 6061 alloy, integrated battery, Boost, 160 mm
Drivetrain	SRAM SX Eagle, 12-S
Shift levers	SRAM SX Eagle, Single Click
Fork	RockShox Domain RC, DebonAir, air, 170 mm, tapered
Rear shock	RockShox Super Deluxe Select+, air, 230x65 mm
Bottom bracket	R Raymon, Narrow Wide, 38 T
Crankset	R Raymon EC40, forged aluminium, ISIS
Sprocket	SRAM PG-1210, 11-50 T
Drive	SRAM SX Eagle
Headset	FSA Orbit ZS56/ZS56
Handlebar	R Raymon Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
Grips	R Raymon MTB, screw-on grips
Stem	R Raymon 35, 0 °, Ahead
Saddle	R Raymon MTB
Seatpost	R Raymon Pro, 34.9 mm, dropper post
Seat clamp	R Raymon 38.9, hexagon socket
Wheelset	29"/622mm
Rims	Mach 1 TRUCKY 30, eyeletted, tubeless ready
Tires	Schwalbe Magic Mary, Evolution, 62-622, 29x2.4
Rear tire	Schwalbe Hans Dampf, Evolution, 60-622, 29x2.35, Tubeless Ready
Front hub	R Raymon DA210F, 6-hole, 15x110 mm, thru axle
Rear hub	R Raymon DA210R, 6-hole, 12x148 mm, thru axle, HG
Pedals	R Raymon, aluminium
Motor manufacturer / model	Yamaha PW-X3, 250 W, 85 Nm
Display	Yamaha Interface X, ANT, Bluetooth
Control unit	Yamaha X
Battery	Simplo, 720 Wh, 36 V
Battery capacity (Wh)	720
Charger	Simplo quick charger, 4 A

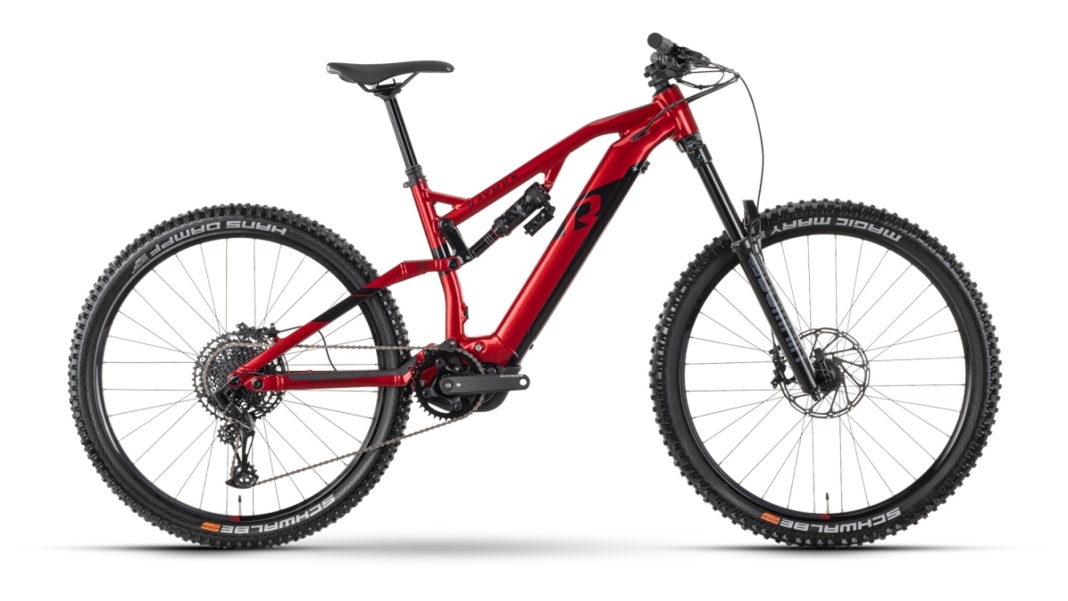

R Raymon TrailRay 160E 10.0 2022
