R Raymon TourRay E 7.0 2020 Pedelec > Trekking > Trekkingbike

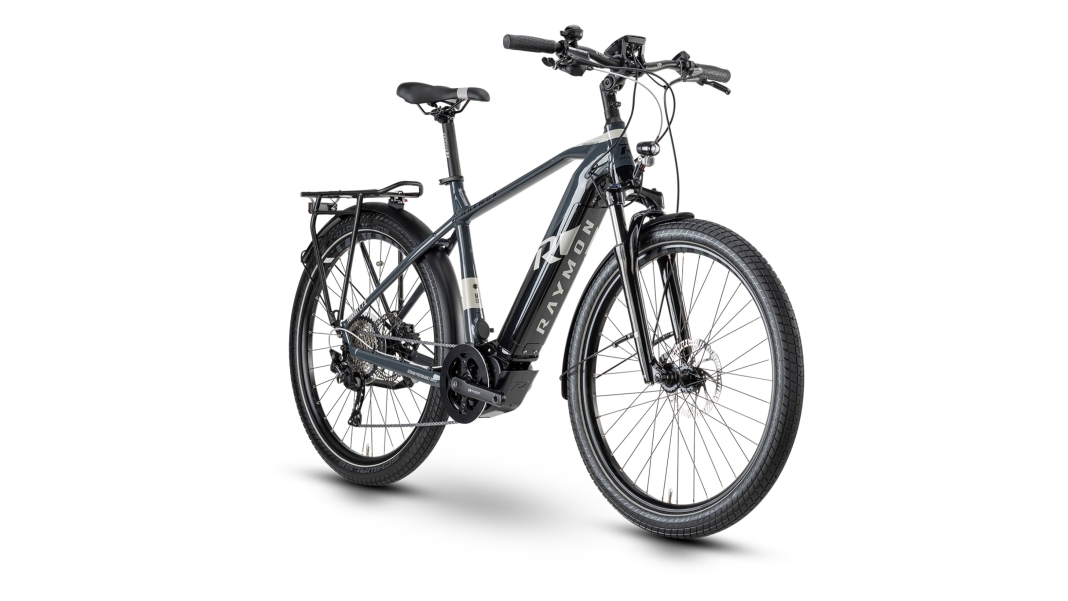

TourRay E 7.0


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Profile not fully set up

Comments

My Bookmarks

My Comments

My Profile

Which bike is right for me?

Helps us estimate the right stability and components.

How often do you ride?

A motor helps when you're riding long distances or tackling climbs.

Should a motor support you?

Helps us find bikes within your budget.

How much do you want to spend?

Tell us what you enjoy – we'll find the right bike.

Purpose – how do you want to ride?

Range determines battery size on e-bikes.

How long are your rides?

Affects tyres and geometry.

What terrain do you ride on?

Bikefinder: Which bike is right for you?

Brakes	TEKTRO, HD-M500, Hydraulic Disc Brake
Frame	27.5" 6061 alloy, trekking, integrated battery, O.L.D 141, 180mm post mount
Drivetrain	SHIMANO, DEORE, RD-M6000, GS, 10-speed
Shift levers	SHIMANO, DEORE, SL-M6000-R, RAPIDFIRE PLUS
Fork	SR SUNTOUR, MOBIE A32 COIL LO, 75mm
Crankset	R RAYMON Components, Alloy Crank, JIS, Length: 170mm
Sprocket	SHIMANO, CS-HG500-10, 11-42T
Drive	KMC, e10 SPORT EPT
Headset	R RAYMON Components, Headset, 1-1/8"–1.5" TAPERED
Handlebar	R RAYMON Components, Width: 640 mm, Rise: 18 mm, Bar bore: Ø31.8 mm
Grips	R RAYMON Components, Grips, Width: 132mm
Stem	R RAYMON Components, Alloy Stem, Length: 90mm, Angle: ±8°, BarBore: Ø31.8mm
Saddle	R RAYMON Components, Saddle
Seatpost	R RAYMON Components, Ridgid seatpost, Length: 450mm
Seat clamp	R RAYMON Components, Seatclamp, Ø34.9mm
Wheelset	RIM: MACH1, TRUCKY 30, 27.5" (584x30C) HUB: R RAYMON Components, alloy, quick-release; RIM: MACH1, TRUCKY 30, 27.5" (584x30C) HUB: R RAYMON Components, Alloy, Quick Release
Rims	MACH1, TRUCKY 30, 27.5" (584x30C)
Tires	SCHWALBE, SUPER MOTO-X GREEN GUARD, SnakeSkin, 27.5x2.40 (62-584)
Pedals	R RAYMON Components, Pedal
Front light	AXA, COMPACTLINE 35, 35LUX, LED, StVZO-approved
Rear light	HERRMANS, H-Cargo, Dynamo, LED, StVZO-approved
Mudguards	SKS, B-65, 28" (700C)
Kickstand	R RAYMON Components, Kickstand, 40mm, Adjustable
Rack	R RAYMON Components, Carrier, Spring Clamp, max. 25kg, CarryMore II
Motor manufacturer / model	YAMAHA, PW-ST, 70 Nm
Display	YAMAHA, Display C, Multifunction, 2.8" TFT, Bluetooth navigation via Komoot® and Wellfit e-Kit®
Battery	YAMAHA, ML500, 500Wh, internal battery

R Raymon TourRay E 7.0
