Rear brakes	Tektro HD-T280, 2-piston, hydraulic disc brake
Front brakes	Tektro HD-T280, 2-piston, hydraulic disc brake
Brakes	Front: Shimano BR-MT200, 2-piston, hydraulic disc brake; Rear: Shimano BR-MT200, 2-piston, hydraulic disc brake
Front brake disc	Tektro TR24, 180 mm, 6-hole
Rear brake disc	Tektro TR24, 180 mm, 6-hole
Brake levers	Shimano BL-MT200, adjustable brake lever, 3-finger
Frame	27.5", Alloy 6061, integrated battery
Drivetrain	Tektro RD-M350, 9-speed
Shift levers	Tektro SL-M350R
Fork	SR SUNTOUR XCM32 ATB DS, suspension, 80 mm, tapered
Bottom bracket	R Raymon, 38 T
Crankset	Wheeltop, forged aluminium, JIS
Sprocket	Tektro CS-M350, 11-46 T
Drive	KMC Z9
Headset	R Raymon ZS44/ZS56
Handlebar	R Raymon Ergo 31.8 mm, 640 mm, sweep: 35°, rise: 20 mm
Grips	R Raymon Ergo, screw-type handles
Stem	R Raymon 31.8, Ahead, adjustable
Saddle	R Raymon Ergo
Seatpost	R Raymon, 31.6 mm, 300 mm, patent
Seat clamp	R Raymon 35, quick-release
Wheelset	27.5"/584mm
Rims	Mach 1 640E, eyelet-fastened
Tires	Continental CONTACT Plus City, 55-584, 27.5x2.2
Front hub	R Raymon DN622F, 6-hole, 9×100 mm, quick-release axle
Rear hub	R Raymon DN662R, 6-hole, 9x141 mm, quick-release axle, HG
Spokes	Mach1, stainless steel
Pedals	R Raymon, aluminium
Front light	Herrmans MR4, 120 lm, parking light
Rear light	AXA Blueline E, parking light
Mudguards	Eurofender Tempo
Kickstand	Ursus MOOI, rear kickstand KSA40, adjustable
Rack	R Raymon Tour, MIK, load capacity 25 kg
Motor manufacturer / model	Yamaha PW-TE, 250 W, 60 Nm
Display	Yamaha Display A, LCD display
Control unit	Integrated in the display
Battery	Yamaha ML500, 500 Wh, 36 V
Battery capacity (Wh)	500
Charger	Yamaha quick charger, 4 A

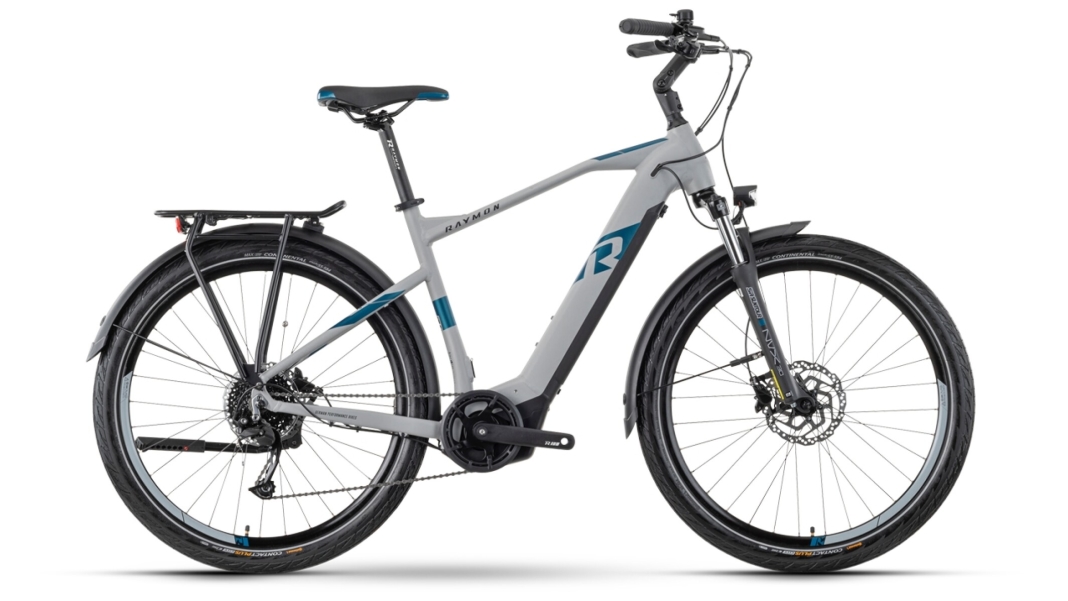

R Raymon TourRay E 5.0 2022
