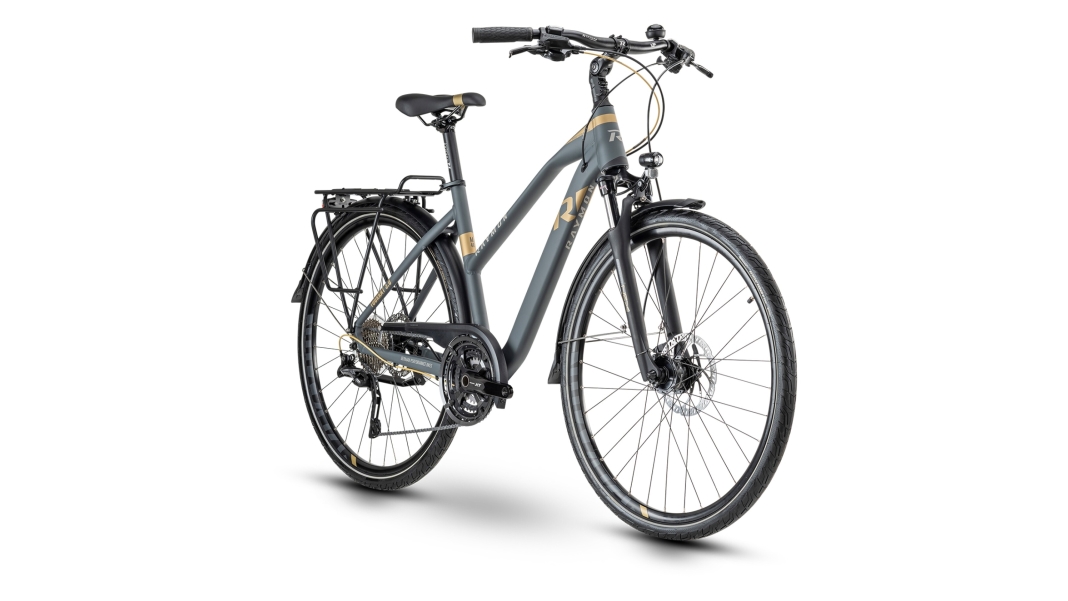

R Raymon TourRay 5.0
Model: TourRay 5.0
Model year: 2020
Price: 1.099,00 €
Category: Trekkingbike
Weight: 17 kg
Permissible total weight: 120 kg
Tests & Reviews
Equipment
| Brakes | TEKTRO, HD-M275, Hydraulic Disc Brake |
| Frame | 28" 6061 alloy, trekking, O.L.D. 135mm, 160mm post mount |
| Drivetrain | SHIMANO, DEORE XT, RD-T8000, SGS, 10-speed |
| Shift levers | SHIMANO, DEORE, SL-T6000-R, RAPIDFIRE PLUS |
| Front derailleur | SHIMANO, DEORE XT, FD-T8000-L, LOW CLAMP, TOP-SWING, DUAL-PULL |
| Fork | SR SUNTOUR, NEX HLO DS, 63mm |
| Bottom bracket | R RAYMON Components, JIS 4-square |
| Crankset | SHIMANO, DEORE XT, FC-T8000-3, Hollowtech II, Length: 170mm, Size: 48x36x26T |
| Sprocket | SHIMANO, CS-HG500-10, 11-34T |
| Drive | KMC, X10eS EPT |
| Headset | R RAYMON Components, Headset, 1-1/8"–1.5" TAPERED |
| Handlebar | R RAYMON Components, Width: 640mm, Rise: 16mm, Bar bore: Ø31.8mm |
| Grips | R RAYMON Components, Grips, Width: 132mm |
| Stem | R RAYMON Components, Alloy Stem, Length: 90mm, Angle: 40–140° adjustable, Bar bore: Ø31.8mm |
| Saddle | R RAYMON Components, Saddle |
| Seatpost | R RAYMON Components, Ridgid seatpost, Length: 350mm |
| Seat clamp | R RAYMON Components, Seatclamp, Ø34.9mm |
| Wheelset | RIM: MACH1, TRAXX DISC, 28" (622x21) HUB: SHIMANO, DH-3D32-QR, 6V 3.0W, HUB DYNAMO; RIM: MACH1, TRAXX DISC, 28" (622x21) HUB: R RAYMON Components, Alloy, 5x135 Quick Release |
| Rims | MACH1, TRAXX DISC, 28" (622x21) |
| Tires | CONTINENTAL, Ride City, Wire Reflex, PunctureProTection, 700Cx42 |
| Pedals | R RAYMON Components, Pedal |
| Front light | AXA, COMPACTLINE 35, 35LUX, LED, StVZO-approved |
| Rear light | AXA BASTA, Slim Steady, parking light, LED, StVZO-approved |
| Mudguards | R RAYMON Components, Fender Set |
| Kickstand | R RAYMON Components, Kickstand, 40mm, Adjustable |
| Rack | R RAYMON Components, Carrier, Spring Clamp, max. 25kg |
